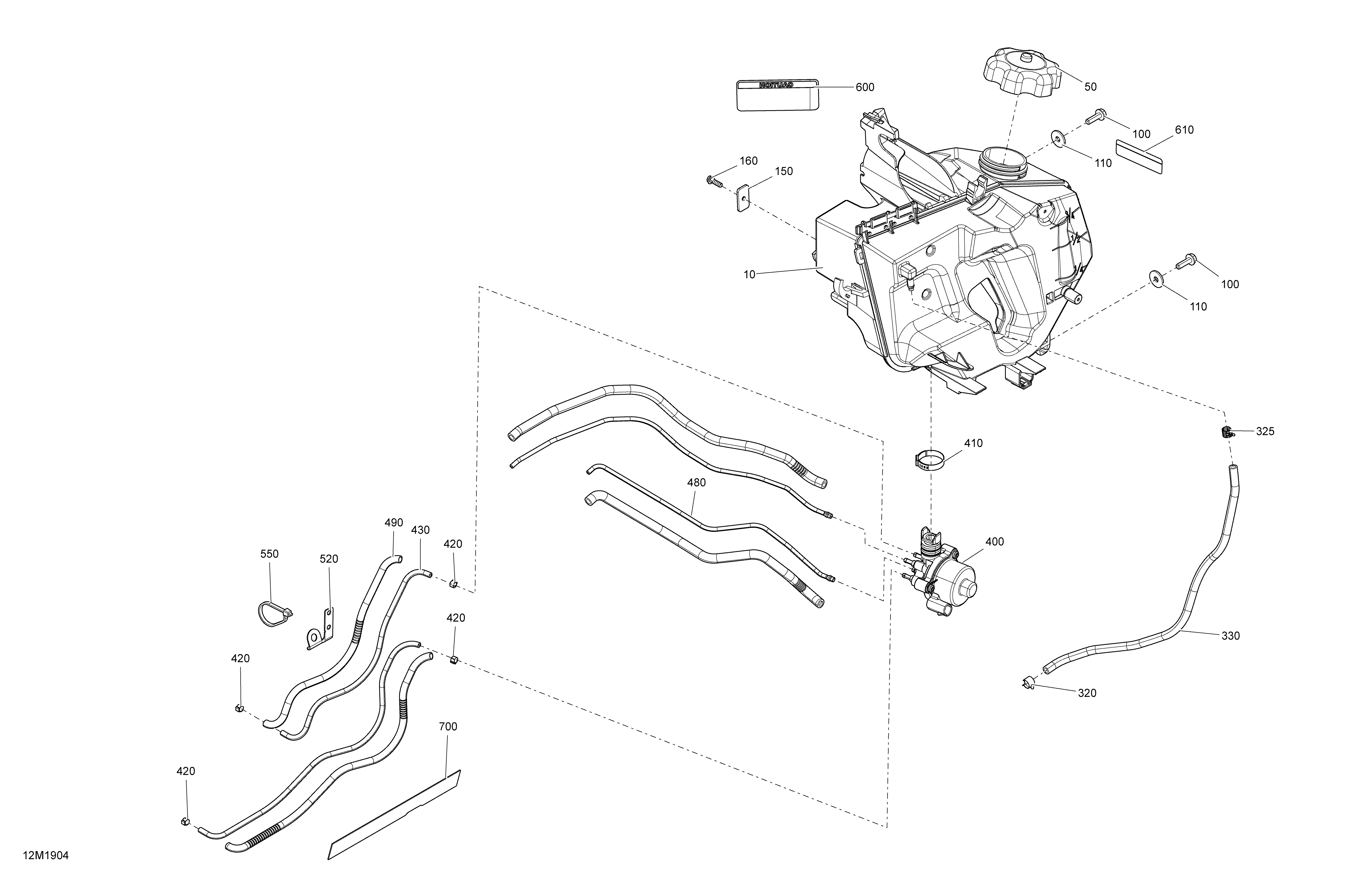

02- Oil - 600HO E-TEC для BRP Ski-Doo 003 - Tundra 600HO E-TEC - 2019
-
№АртикулНазвание
-
10519000311 Oil TankOil Tank
-
50519000273 CapCap
-
100250001062 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
110224061201 Flat WasherFlat Washer
-
150519000179 BracketBracket
-
160241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
320414554800 Spring ClampSpring Clamp
-
325414420700 Spring ClampSpring Clamp
-
330415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
400519000323 Oil PumpOil Pump
-
410293650099 Crimp ClampCrimp Clamp
-
420293650249 Crimp ClampCrimp Clamp
-
430519000182 Hose 3.5 mmHose 3.5 mm
-
480519000184 Hose 2.5 mmHose 2.5 mm
-
490515175442 Tubing 6 mmTubing 6 mm
-
520519000245 BracketBracket
-
550293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
600516007443 Warning Decal / Oil NoticeWarning Decal / Oil Notice
-
610516005280 Caution Decal Hot PartsCaution Decal Hot Parts
-
700516004648 Protection Decal / LexanProtection Decal / Lexan
