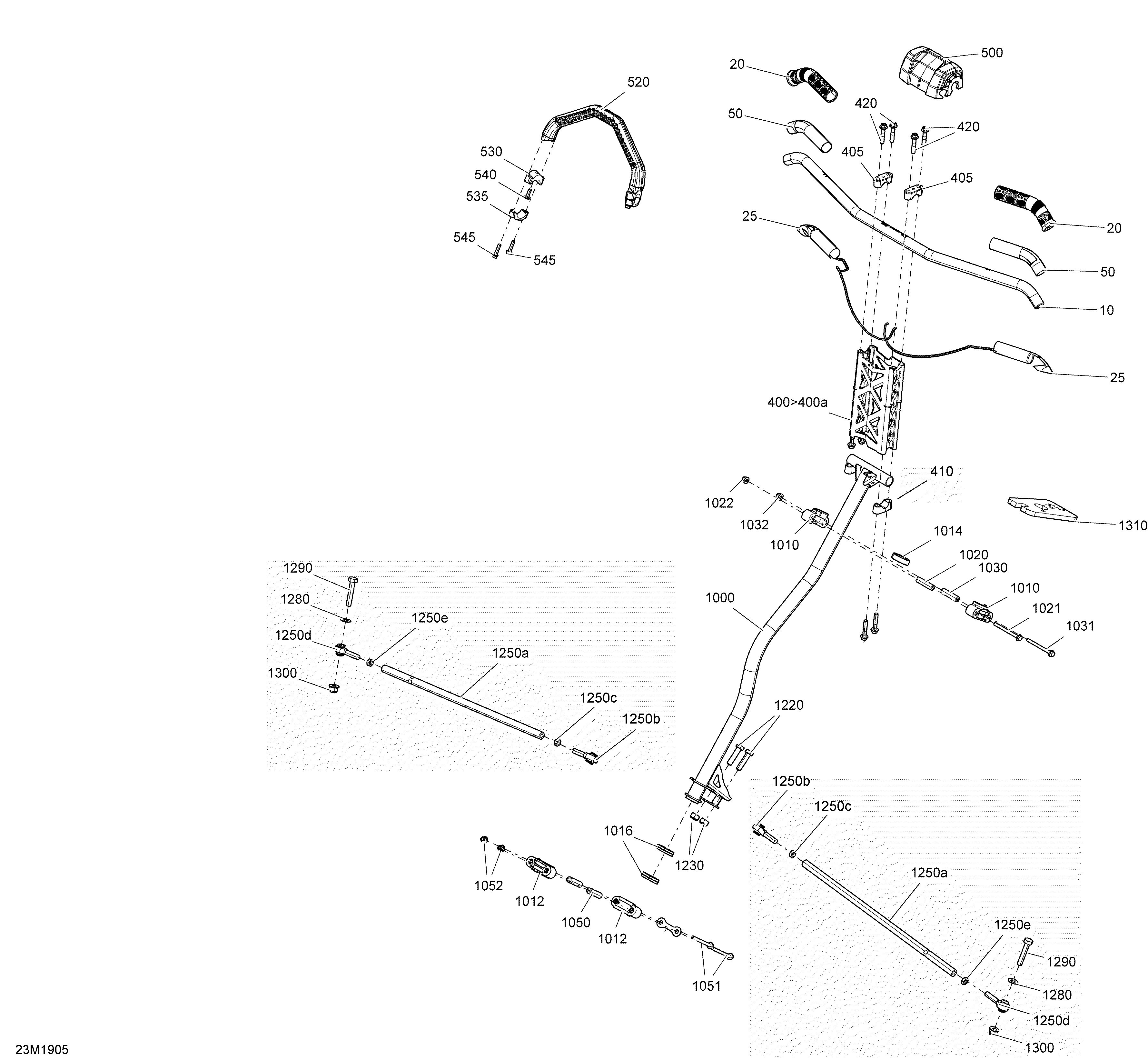

07- Steering - 600HO E-TEC для BRP Ski-Doo 003 - Tundra 600HO E-TEC - 2019
-
№АртикулНазвание
-
10506152709 Handle Bar, Non Dyed Clear AnodizingHandle Bar, Non Dyed Clear Anodizing
-
20506152560 Grip 148mmGrip 148mm
-
25506152758 Heating Element 32 Watt 2 WiresHeating Element 32 Watt 2 Wires
-
30506152764 RH Heating Element 32 WattRH Heating Element 32 Watt
-
50506152548 IsolantIsolant
-
400506152569 Steering ExtensionSteering Extension
-
405506152750 Steering SupportSteering Support
-
410506152751 Steering Support. Includes 410 to 410aSteering Support. Includes 410 to 410a
-
410a506152750 Steering SupportSteering Support
-
420250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
430250000852 Hexagonal Flange Screw M8 X 1.25 x 60Hexagonal Flange Screw M8 X 1.25 x 60
-
500506152541 Steering Pad, Deep BlackSteering Pad, Deep Black
-
520506152460 Moulding StrapMoulding Strap
-
530506152703 Black Support PlateBlack Support Plate
-
535719000049 Clamps KitClamps Kit
-
540250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
545250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
1000506152962 Steering ColumnSteering Column
-
1010506152508 Upper Half-HousingUpper Half-Housing
-
1012506152217 Lower Half-HousingLower Half-Housing
-
1014506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
1016506152518 Lower Vibration RingLower Vibration Ring
-
1020506152297 Housing BushingHousing Bushing
-
1021250001027 Hex. Flanged Screw M6 X 70Hex. Flanged Screw M6 X 70
-
1022233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1030506152297 Housing BushingHousing Bushing
-
1031250001027 Hex. Flanged Screw M6 X 70Hex. Flanged Screw M6 X 70
-
1032233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1040506152297 Housing BushingHousing Bushing
-
1041250001027 Hex. Flanged Screw M6 X 70Hex. Flanged Screw M6 X 70
-
1042233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
1050506152388 Lower Housing BushingLower Housing Bushing
-
1051207686534 Hex. Flanged Screw M8 x 65Hex. Flanged Screw M8 x 65
-
1052233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1053506152389 Stopper PlateStopper Plate
-
1220207004034 Hex. Screw M10 X 1.5 X 40Hex. Screw M10 X 1.5 X 40
-
1230233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
1250b506152081 LH Thread Ball JointLH Thread Ball Joint
-
1250c250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
1250d506152019 RH Thread Ball JointRH Thread Ball Joint
-
1250e732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
1280506152582 WasherWasher
-
1290207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
1300233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
1305506152582 WasherWasher
-
1310506152476 BushingBushing
-
2000506152821 Handle. Not ShownHandle. Not Shown
-
2010205041060 Socket Head Screw M4X 10. Not ShownSocket Head Screw M4X 10. Not Shown
