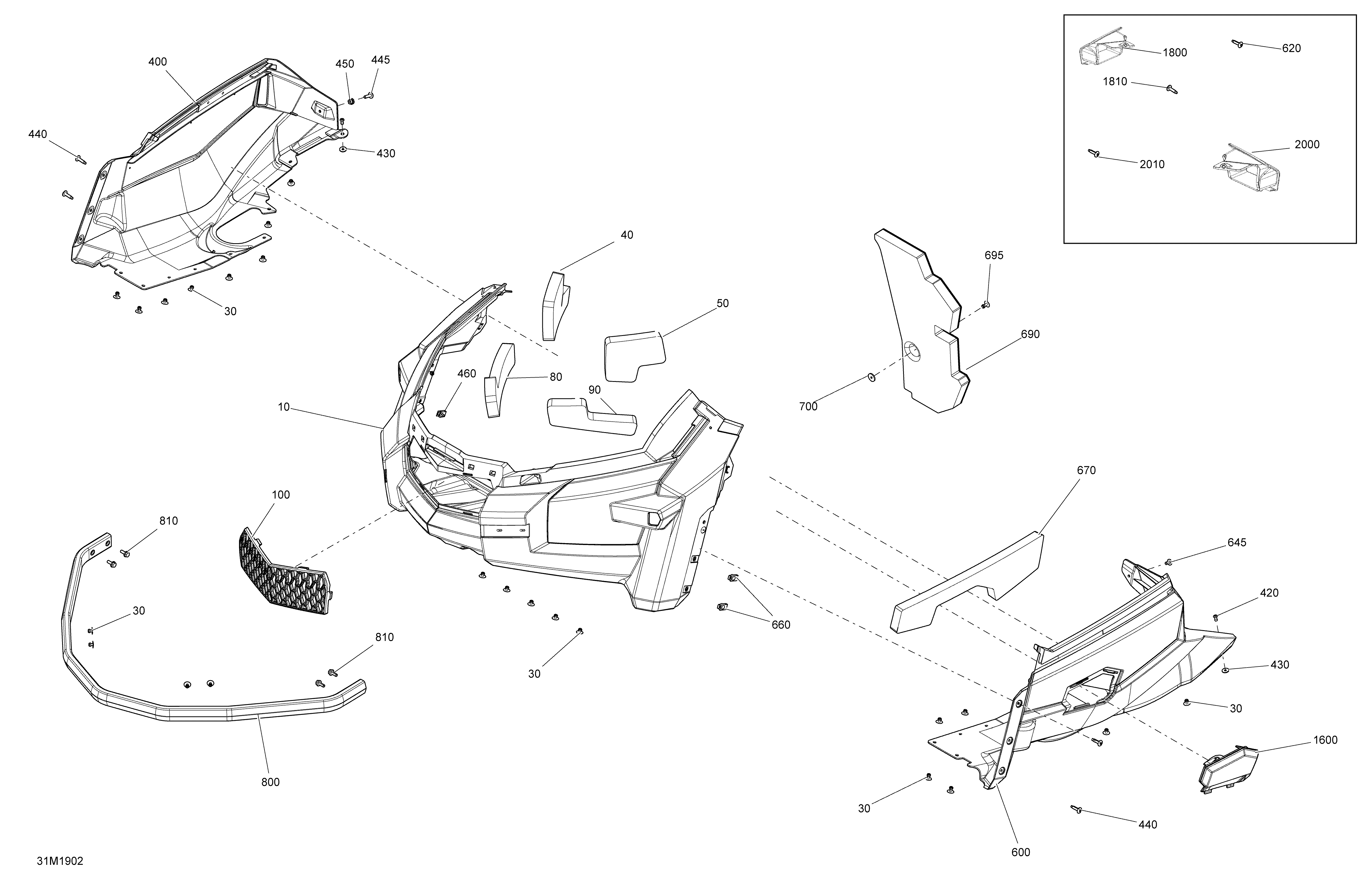

09- Bottom Pan - 600HO E-TEC для BRP Ski-Doo 003 - Tundra 600HO E-TEC - 2019
-
№АртикулНазвание
-
10502007361 Black, Bottom PanBlack, Bottom Pan
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
40502007204 RH Upper Bottom Pan FoamRH Upper Bottom Pan Foam
-
50502007205 LH Upper Bottom Pan FoamLH Upper Bottom Pan Foam
-
80502007206 RH Lower Bottom Pan FoamRH Lower Bottom Pan Foam
-
90502007207 LH Lower Bottom Pan FoamLH Lower Bottom Pan Foam
-
100502006887 Botton Pan GrillBotton Pan Grill
-
400502006965 Black RH Bottom PanBlack RH Bottom Pan
-
410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
420293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
430517124300 WasherWasher
-
440250000618 Torx Screw M6 X 25Torx Screw M6 X 25
-
445250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
450293450275 InsertInsert
-
460250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
600502006966 Black LH Bottom PanBlack LH Bottom Pan
-
610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
620293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
630517124300 WasherWasher
-
640250000618 Torx Screw M6 X 25Torx Screw M6 X 25
-
645250000767 Torx Truss Screw M6 X 12Torx Truss Screw M6 X 12
-
660250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
670502007208 LH Bottom Pan FoamLH Bottom Pan Foam
-
690502007209 Foam On PlateFoam On Plate
-
695293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
700250200016 WasherWasher
-
800502007121 Black Front BumperBlack Front Bumper
-
810207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
830293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1600502006970 Black Bottom Pan DoorBlack Bottom Pan Door
