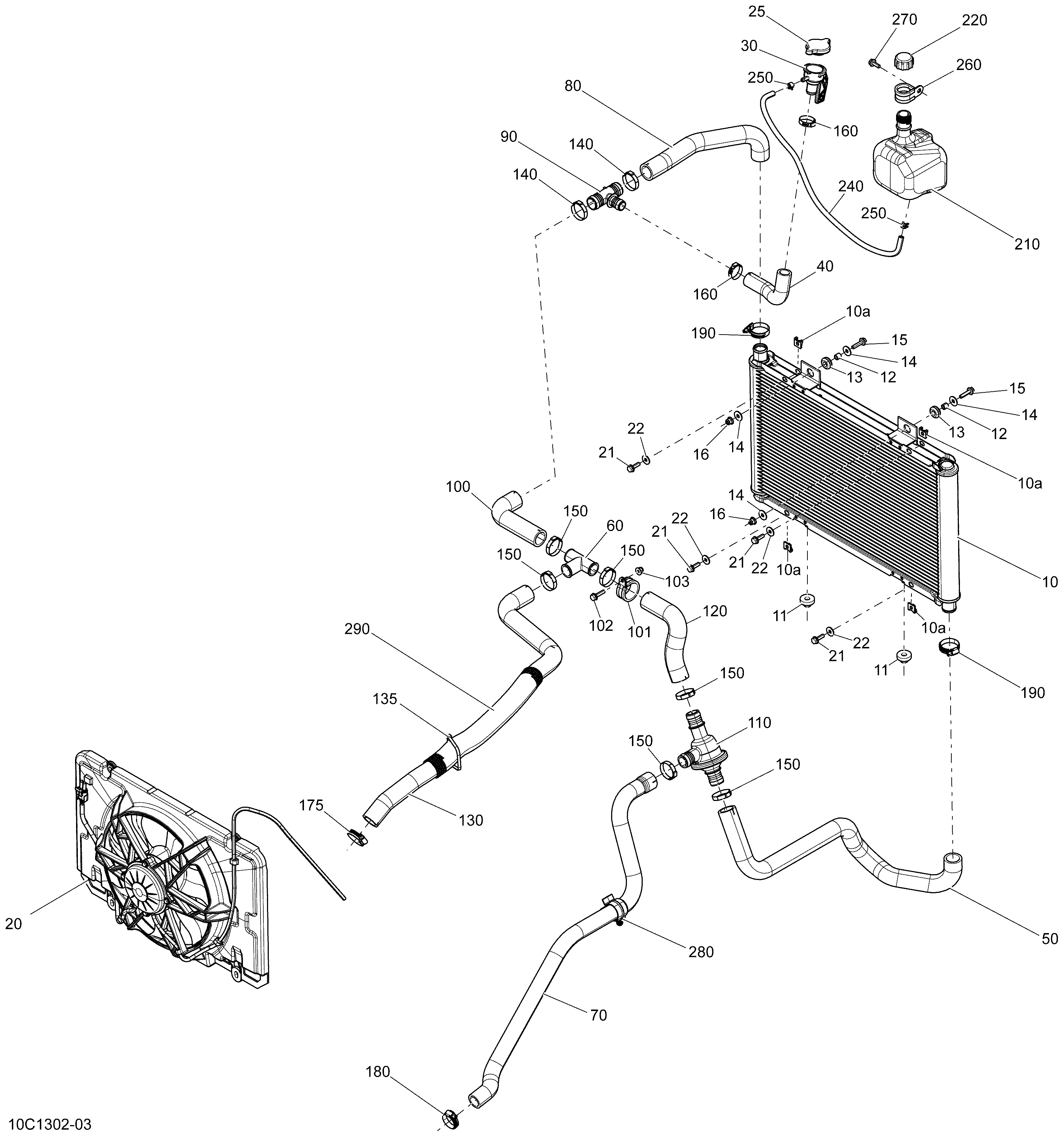

01- Cooling System для BRP Commander STD, DPS, XT, X 1000 EFI - 2013
-
№АртикулНазвание
-
10709200395 Radiator. Includes 10 to 10aRadiator. Includes 10 to 10a
-
10a715900148 Clip Nut M6 X 1Clip Nut M6 X 1
-
11709200285 GrommetGrommet
-
12293900105 BushingBushing
-
13293720053 GrommetGrommet
-
14250200082 Flat WasherFlat Washer
-
15207662534 Hex. Flanged ScrewHex. Flanged Screw
-
16233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
20709200375 Fan Ass'yFan Ass'y
-
21207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
22234062410 Flat Washer 6 mmFlat Washer 6 mm
-
25709200207 Pressure CapPressure Cap
-
30709200179 Filler NeckFiller Neck
-
40709200264 Filler Neck HoseFiller Neck Hose
-
50709200378 Radiator Inlet HoseRadiator Inlet Hose
-
60509000219 T-FittingT-Fitting
-
70709200379 Pump HosePump Hose
-
80709200265 Radiator Outlet HoseRadiator Outlet Hose
-
90509000372 T-FittingT-Fitting
-
100709200380 Intermediate HoseIntermediate Hose
-
101293650218 Hose RetainerHose Retainer
-
102207662534 Hex. Flanged ScrewHex. Flanged Screw
-
103233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
110709200406 ThermostatThermostat
-
120709200381 Recirculation HoseRecirculation Hose
-
130709200382 Intermediate HoseIntermediate Hose
-
135293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
140509000162 Gear ClampGear Clamp
-
150509000162 Gear ClampGear Clamp
-
160293650099 Oetiker Gear ClampOetiker Gear Clamp
-
175293650098 Norma Gear ClampNorma Gear Clamp
-
180293650098 Norma Gear ClampNorma Gear Clamp
-
190293650098 Norma Gear ClampNorma Gear Clamp
-
210709200312 Coolant TankCoolant Tank
-
220709200328 Tank CapTank Cap
-
240415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
250414554800 Spring ClampSpring Clamp
-
260709200036 Hose AnchorHose Anchor
-
270207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
280275500590 RetainerRetainer
-
290515176260 Tubing 35mmTubing 35mm
