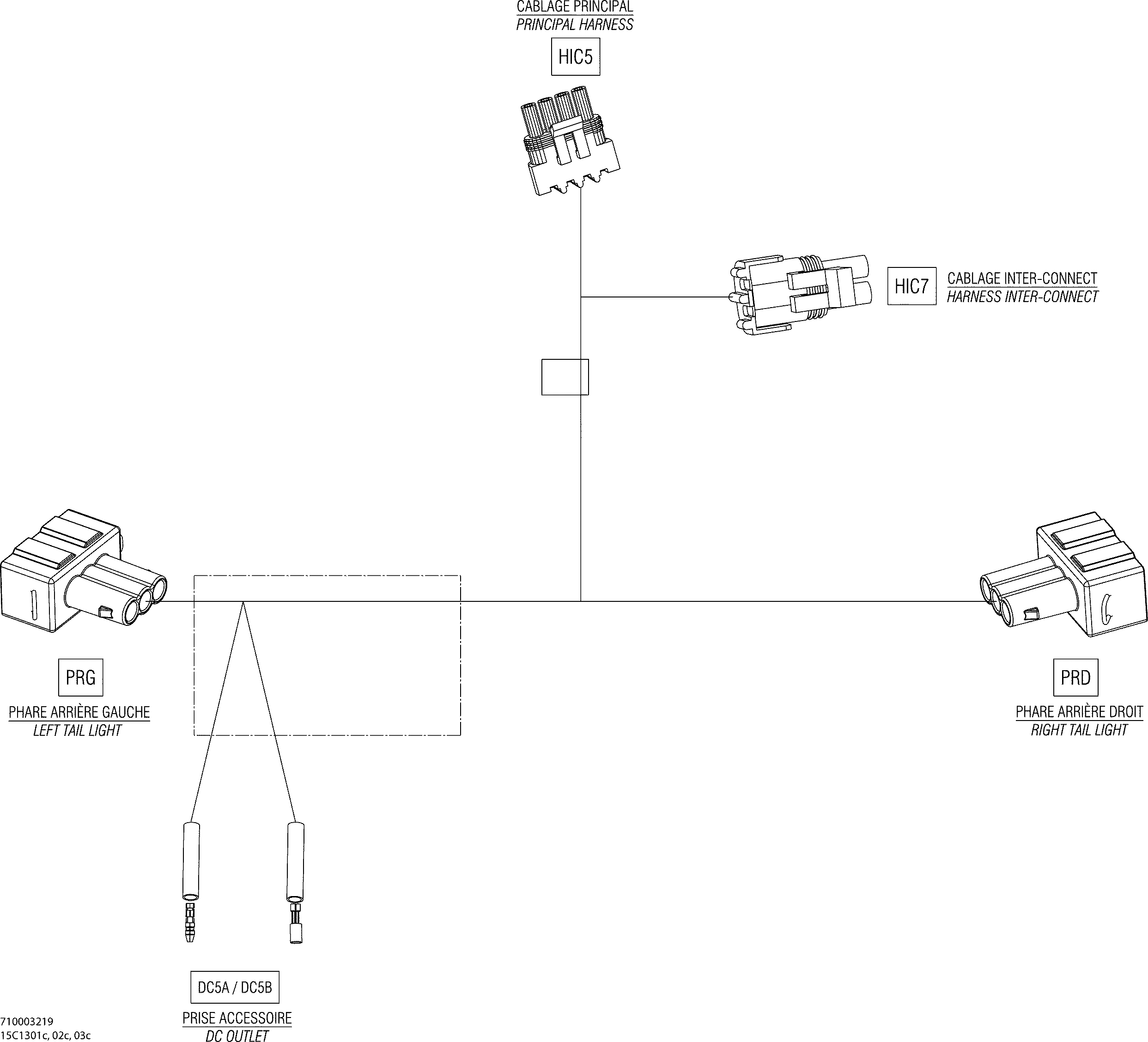

10- Electrical Harness Rear, NA_Inter для BRP Commander STD, DPS, XT, X 1000 EFI - 2013
-
№АртикулНазвание
-
1710003219 Rear Harness. North America, InterRear Harness. North America, Inter
-
504278001065 Wire Seal. North America, InterWire Seal. North America, Inter
-
DC5A278001008 Insulated Sheath. North America, InterInsulated Sheath. North America, Inter
-
DC5A278002261 Female Terminal. North America, InterFemale Terminal. North America, Inter
-
DC5B278001007 Insulated Sheath. North America, InterInsulated Sheath. North America, Inter
-
DC5B710000421 Female Terminal. North America, InterFemale Terminal. North America, Inter
-
DC5B293550004 Dielectric Grease, 150 g. North America, InterDielectric Grease, 150 g. North America, Inter
-
HIC5278000223 Female Terminal. North America, InterFemale Terminal. North America, Inter
-
HIC5278000395 Male Housing, 4 Circuits. North America, InterMale Housing, 4 Circuits. North America, Inter
-
HIC5278000585 Wire Seal (20 Gauge) (Purple)(Packard). North America, InterWire Seal (20 Gauge) (Purple)(Packard). North America, Inter
-
HIC7409007300 Female Terminal. North America, InterFemale Terminal. North America, Inter
-
HIC7278000220 Male Connector, 2 Circuits. North America, InterMale Connector, 2 Circuits. North America, Inter
-
HIC7278000218 Wire Seal. North America, InterWire Seal. North America, Inter
-
PRD278000998 Female Terminal. North America, InterFemale Terminal. North America, Inter
-
PRD415128501 Seal. North America, InterSeal. North America, Inter
-
PRG278000998 Female Terminal. North America, InterFemale Terminal. North America, Inter
