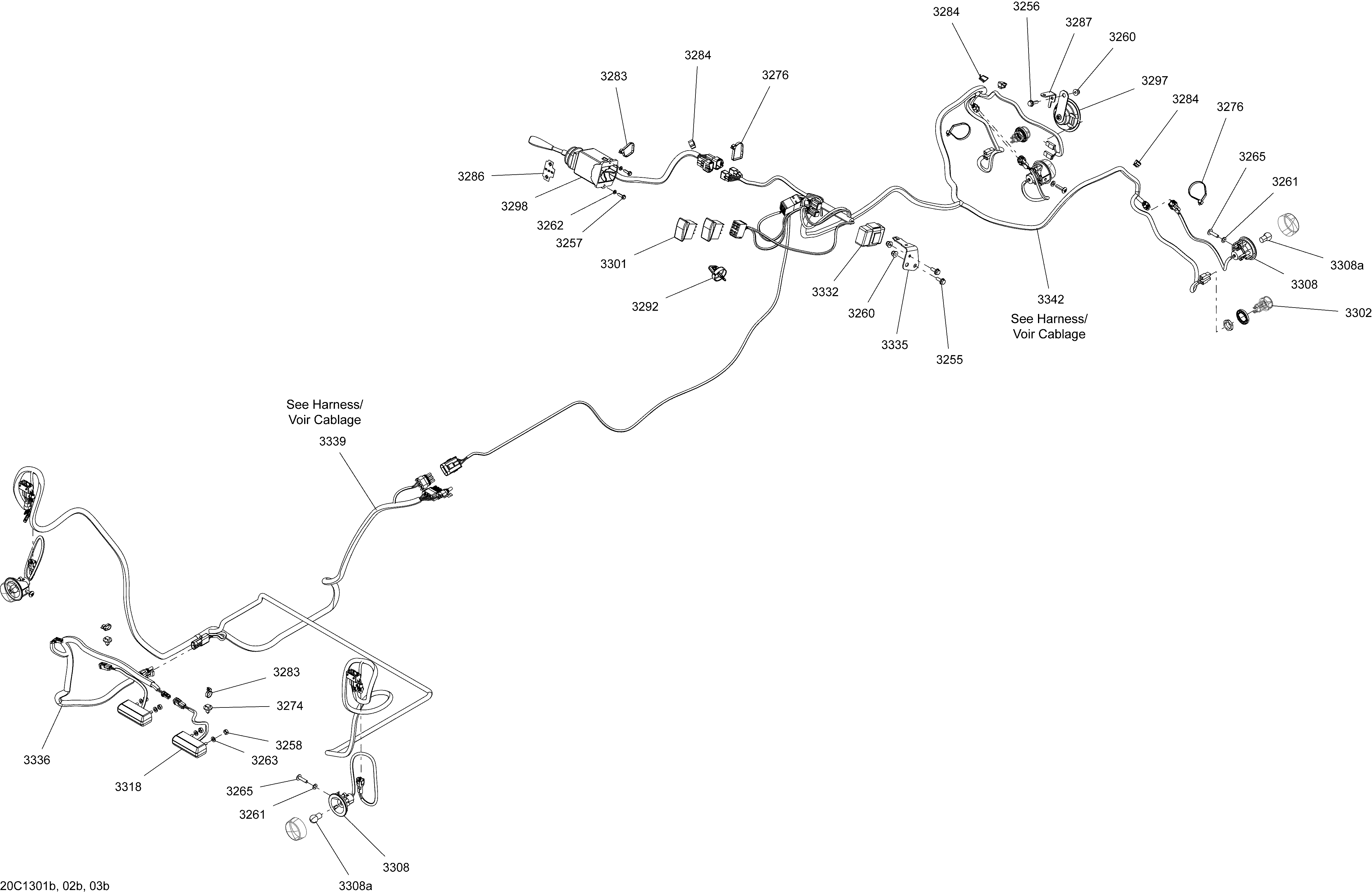

10- Electrical System NA, INTER, EUR для BRP Commander STD, DPS, XT, X 1000 EFI - 2013
-
№АртикулНазвание
-
3255207661644 Hex. Flanged Screw M6 X 16. EURHex. Flanged Screw M6 X 16. EUR
-
3256207662044 Hex. Flanged Screw M6 X 20. EURHex. Flanged Screw M6 X 20. EUR
-
3257210251680 Hex. Forming Screw M5 X 16. EURHex. Forming Screw M5 X 16. EUR
-
3258232061600 Hex. Nut M6. EURHex. Nut M6. EUR
-
3260233261414 Hex. Flanged Elastic Nut M6. EURHex. Flanged Elastic Nut M6. EUR
-
3261234061410 Flat Washer 6 mm. EURFlat Washer 6 mm. EUR
-
3262234151401 Lock Washer 5 mm. EURLock Washer 5 mm. EUR
-
3263234161601 Lock Washer Helical M6. EURLock Washer Helical M6. EUR
-
3265250000284 Torx Screw M6 x 25. EURTorx Screw M6 x 25. EUR
-
3274293730040 Mount Dart. EURMount Dart. EUR
-
3276293750008 Tie-Rap 350 mm. EURTie-Rap 350 mm. EUR
-
3283414115200 Tie-Rap 180 mm. EURTie-Rap 180 mm. EUR
-
3284414227300 Clip. EURClip. EUR
-
3286704902614 Flasher Decal. EURFlasher Decal. EUR
-
3287709200284 Support. EURSupport. EUR
-
3292710000817 Black-Electronic Key. EURBlack-Electronic Key. EUR
-
3297710000983 Horn. EURHorn. EUR
-
3298710001721 Turn Signal. EURTurn Signal. EUR
-
3301710001725 Hi/Low Beam Switch. North America, InternationalHi/Low Beam Switch. North America, International
-
3301710002076 Switch. EURSwitch. EUR
-
3302710001726 Day Light. EURDay Light. EUR
-
3308710002047 Flasher. EURFlasher. EUR
-
3318710002055 License Light. EURLicense Light. EUR
-
3332710002393 Flasher Unit. EURFlasher Unit. EUR
-
3335710002408 Support. EURSupport. EUR
-
3336710002220 Rear Harness Ass'y. EURRear Harness Ass'y. EUR
-
3339710003219 Rear Harness. North America, InternationalRear Harness. North America, International
-
3339710003220 Rear Harness. EURRear Harness. EUR
-
3342710003008 Harness Ass'y. EURHarness Ass'y. EUR
