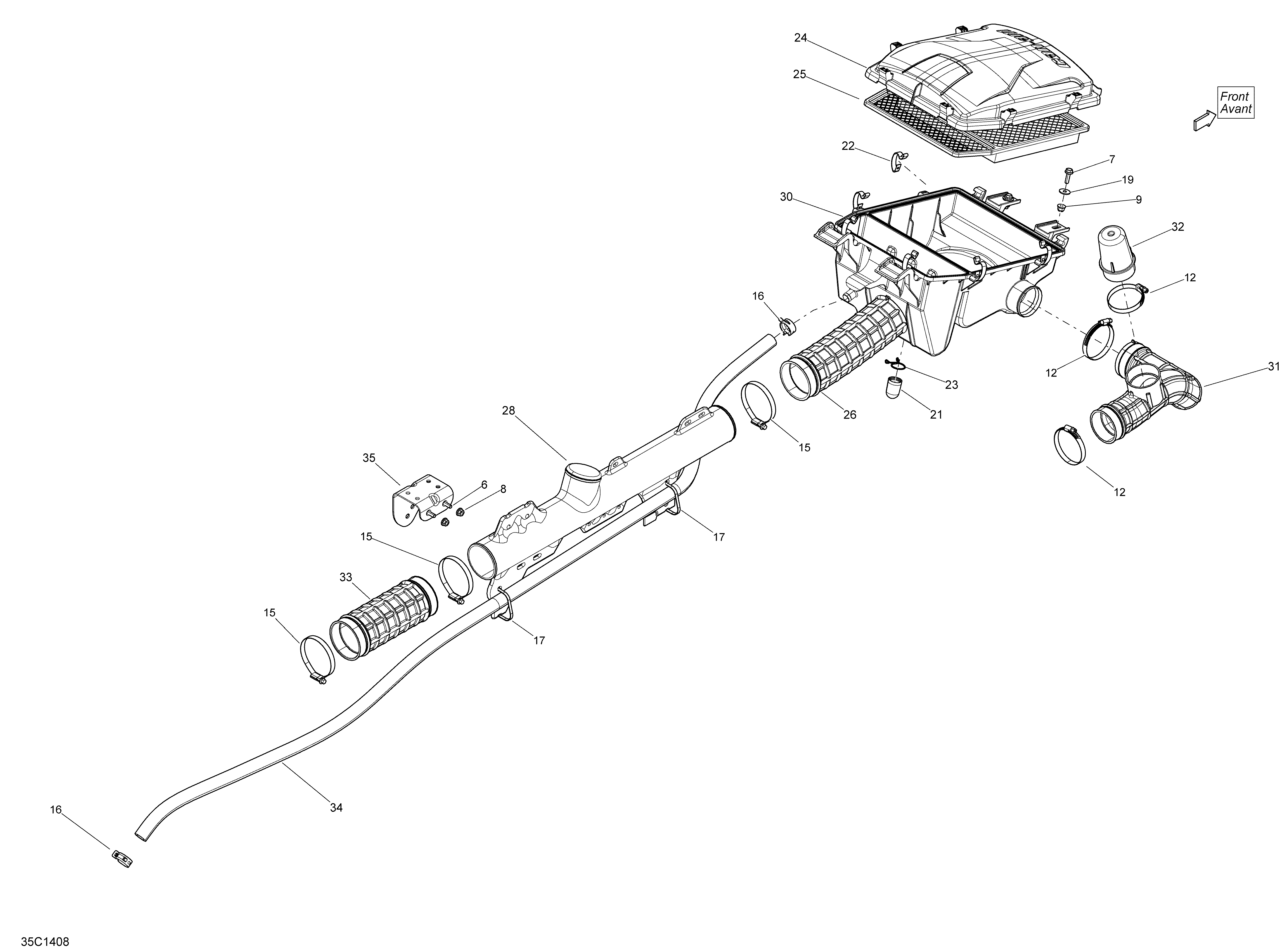

02- Air Intake для BRP Maverick MAX 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
6207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12293650079 Norma ClampNorma Clamp
-
15293650091 Norma ClampNorma Clamp
-
16293650213 Norma Spring ClampNorma Spring Clamp
-
17293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
19250200082 Flat WasherFlat Washer
-
21707800080 Drain TubeDrain Tube
-
22707800249 Cover BracketCover Bracket
-
23707800278 Retainer ClipRetainer Clip
-
24707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
25707800327 Air FilterAir Filter
-
26707800329 Intake AdaptorIntake Adaptor
-
28707800515 Intake AdaptorIntake Adaptor
-
30707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
31707800532 Intake AdaptorIntake Adaptor
-
32707800533 Intake Adaptor TankIntake Adaptor Tank
-
33707800541 Intake AdaptorIntake Adaptor
-
34707800411 Hose 15.88 mmHose 15.88 mm
-
35707800560 Rear SupportRear Support
