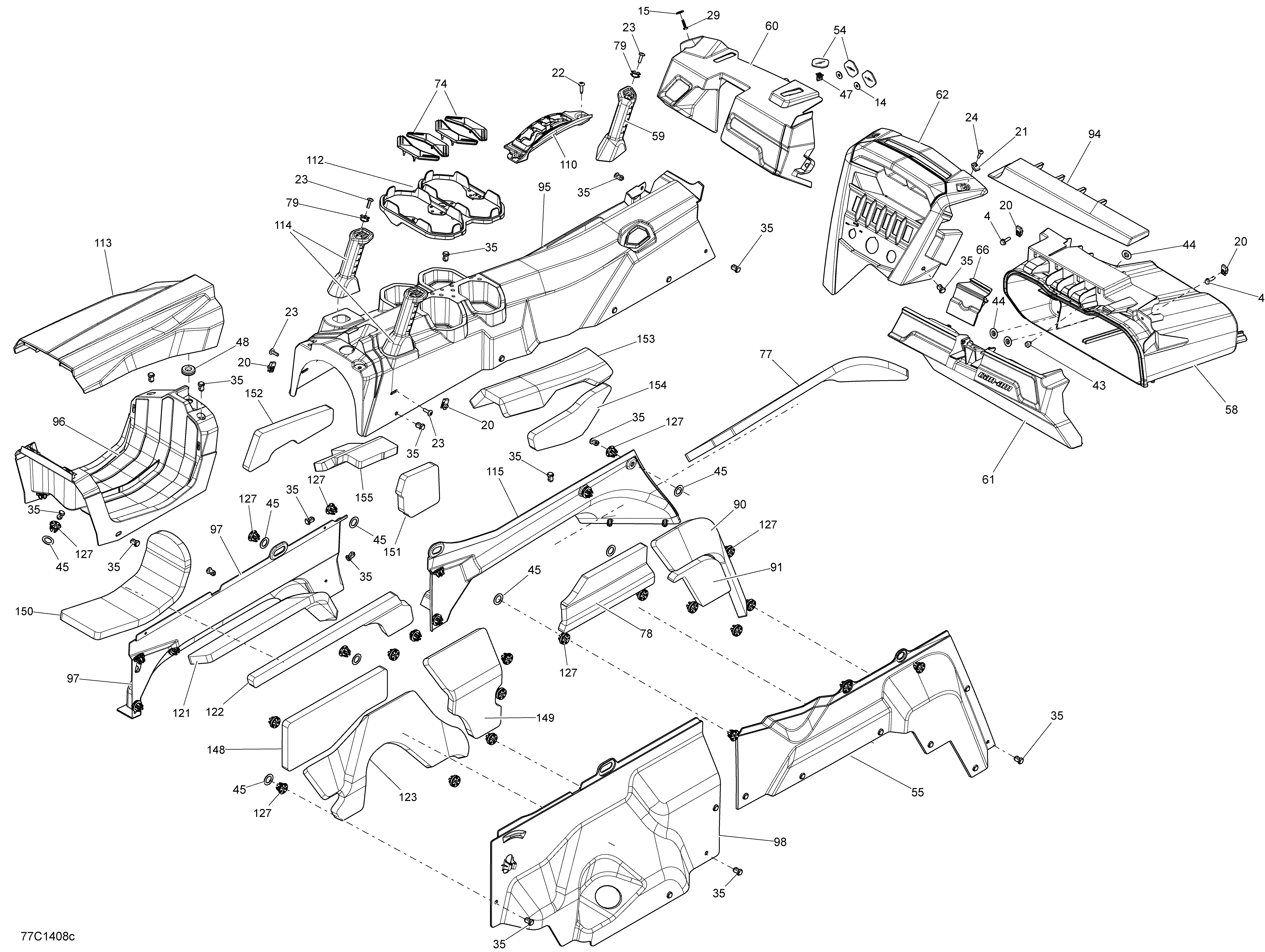

09- Cab Interior Dash And Console для BRP Maverick MAX 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
4207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
14234062410 Flat Washer 6 mmFlat Washer 6 mm
-
15234062670 Flat WasherFlat Washer
-
20250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
21250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
22250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
23250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
24250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
29250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
35293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
43293830005 Rubber BumperRubber Bumper
-
44414859400 CapCap
-
45503189273 WasherWasher
-
47517302785 ClipClip
-
48517303756 GrommetGrommet
-
54705003841 Support PlateSupport Plate
-
55707900002 RH Side ConsoleRH Side Console
-
58707900009 Storage BinStorage Bin
-
59707900011 Passenger HandlePassenger Handle
-
60715001250 Dashboard Ass'yDashboard Ass'y
-
61715001263 Bin Cover Ass'yBin Cover Ass'y
-
62715001265 Central Dashboard Ass'yCentral Dashboard Ass'y
-
62715900108 Central Dashboard Ass'y. EuropeCentral Dashboard Ass'y. Europe
-
66707900031 LatchLatch
-
74707900036 Cup RetainerCup Retainer
-
77707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
78707900045 RH Lateral Console FoamRH Lateral Console Foam
-
79707900048 Connector TubeConnector Tube
-
90707900055 RH Lateral Console FoamRH Lateral Console Foam
-
91707900056 RH Lateral Console FoamRH Lateral Console Foam
-
94707900062 Trim Glove BoxTrim Glove Box
-
95707900072 Front Control ConsoleFront Control Console
-
96707900075 Rear Central ConsoleRear Central Console
-
97707900079 LH Rear Console PanelLH Rear Console Panel
-
98707900080 RH Rear Console PanelRH Rear Console Panel
-
110707900088 Shift Lever IndicatorShift Lever Indicator
-
112707900100 Cup HolderCup Holder
-
113707900102 Rear Central Console Cover. STD ModelRear Central Console Cover. STD Model
-
113707900195 Rear Central Console Cover. White ModelRear Central Console Cover. White Model
-
113707900197 Rear Central Console Cover. Black ModelRear Central Console Cover. Black Model
-
114707900103 HandleHandle
-
115707900001 LH Side ConsoleLH Side Console
-
121707900119 Acoustic FoamAcoustic Foam
-
122707900120 Acoustic FoamAcoustic Foam
-
123707900121 Acoustic FoamAcoustic Foam
-
127707900133 InsertInsert
-
148707900205 Acoustic FoamAcoustic Foam
-
149707900206 Acoustic FoamAcoustic Foam
-
150707900208 Acoustic FoamAcoustic Foam
-
151707900209 Acoustic FoamAcoustic Foam
-
152707900210 Acoustic FoamAcoustic Foam
-
153707900211 Acoustic FoamAcoustic Foam
-
154707900212 Acoustic FoamAcoustic Foam
-
155707900213 Acoustic FoamAcoustic Foam
