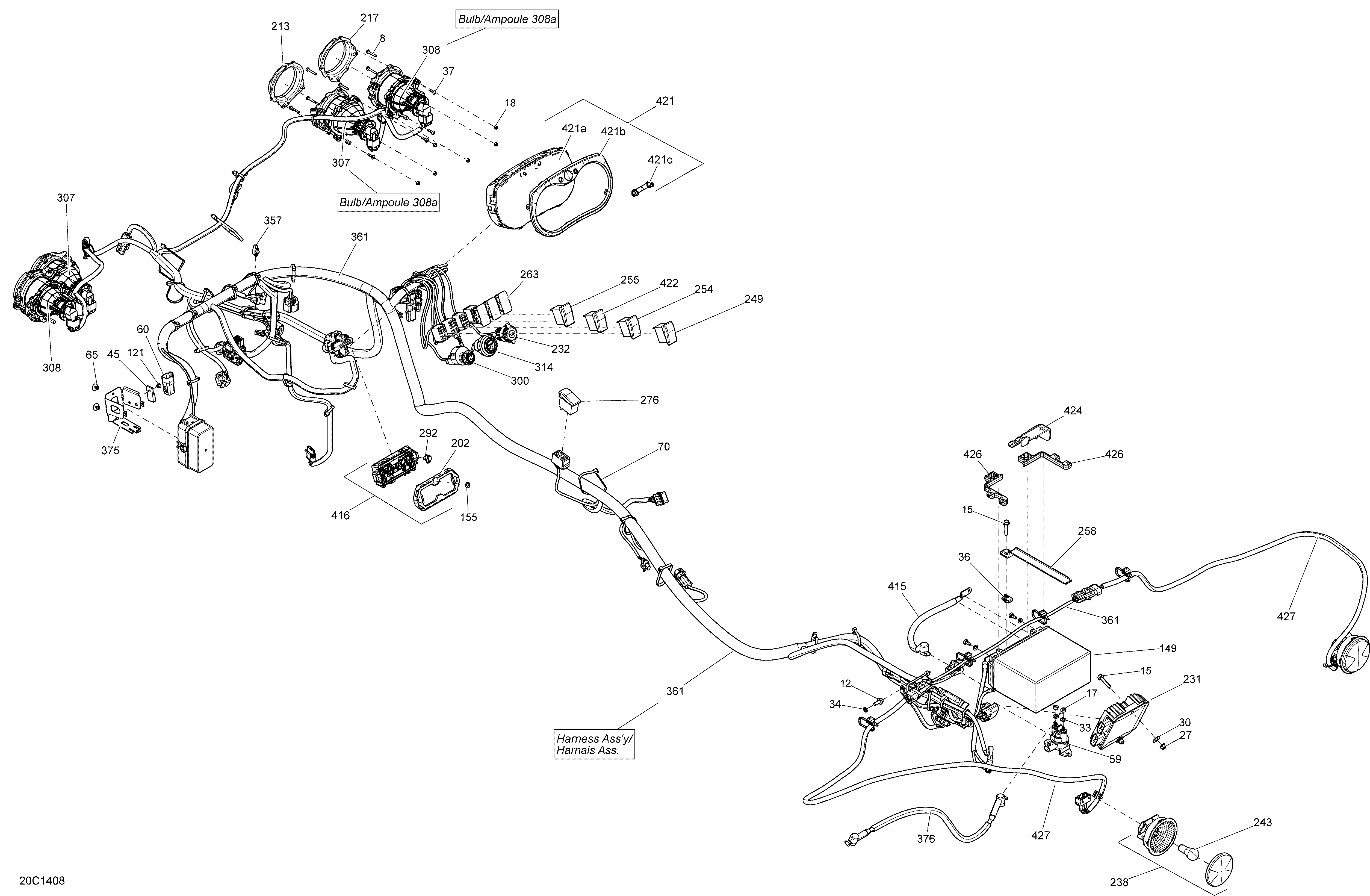

10- Electrical System для BRP Maverick MAX 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
8207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
12207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
15207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
17232061600 Hex. Nut M6Hex. Nut M6
-
18232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
27233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
30234062670 Flat WasherFlat Washer
-
34234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
36250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
37250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
45270000141 ClipClip
-
59278002347 Starter RelayStarter Relay
-
60278002704 Diagnostic ConnectorDiagnostic Connector
-
65293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
70293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
121390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
149410301203 Battery Ass'y, 18 AmperesBattery Ass'y, 18 Amperes
-
213710001081 RH Low Front HousingRH Low Front Housing
-
213710001083 LH Low Front HousingLH Low Front Housing
-
217710001085 RH High Front HousingRH High Front Housing
-
217710001087 LH High Front HousingLH High Front Housing
-
231710001191 Voltage RegulatorVoltage Regulator
-
232710001248 Outlet DCOutlet DC
-
238710001645 Tail LightTail Light
-
243520000758 BulbBulb
-
249710001725 Hi/Low SwitchHi/Low Switch
-
254710001737 SwitchSwitch
-
255710001781 Switch DPSSwitch DPS
-
258710001916 Battery HolderBattery Holder
-
263710001999 Plug CarlingPlug Carling
-
276710002053 Switch, Over RideSwitch, Over Ride
-
300710002327 Ignition SwitchIgnition Switch
-
307710002524 Low Beam Ass'yLow Beam Ass'y
-
308710002525 High Beam Ass'yHigh Beam Ass'y
-
314710002594 Engine START ButtonEngine START Button
-
357710003168 Tie-RapTie-Rap
-
361710003187 Harness Ass'yHarness Ass'y
-
375710003335 Fuse HolderFuse Holder
-
376710003340 Positive CablePositive Cable
-
415710003440 Positive CablePositive Cable
-
416710003851 SpeedometerSpeedometer
-
202710001183 Trim Ring Ass'yTrim Ring Ass'y
-
155704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
292715900265 ButtonButton
-
421710003855 SpeedometerSpeedometer
-
422710003541 Switch PPS SportSwitch PPS Sport
-
424710003582 CapCap
-
426710003602 Battery Rubber PadBattery Rubber Pad
-
427710003680 Rear HarnessRear Harness
-
427710003681 Rear HarnessRear Harness
-
308a415129249 Halogen BulbHalogen Bulb
-
421a415129349 LensLens
-
421b415129348 Gauge RingGauge Ring
-
421c415129355 Speedometer ButtonSpeedometer Button
