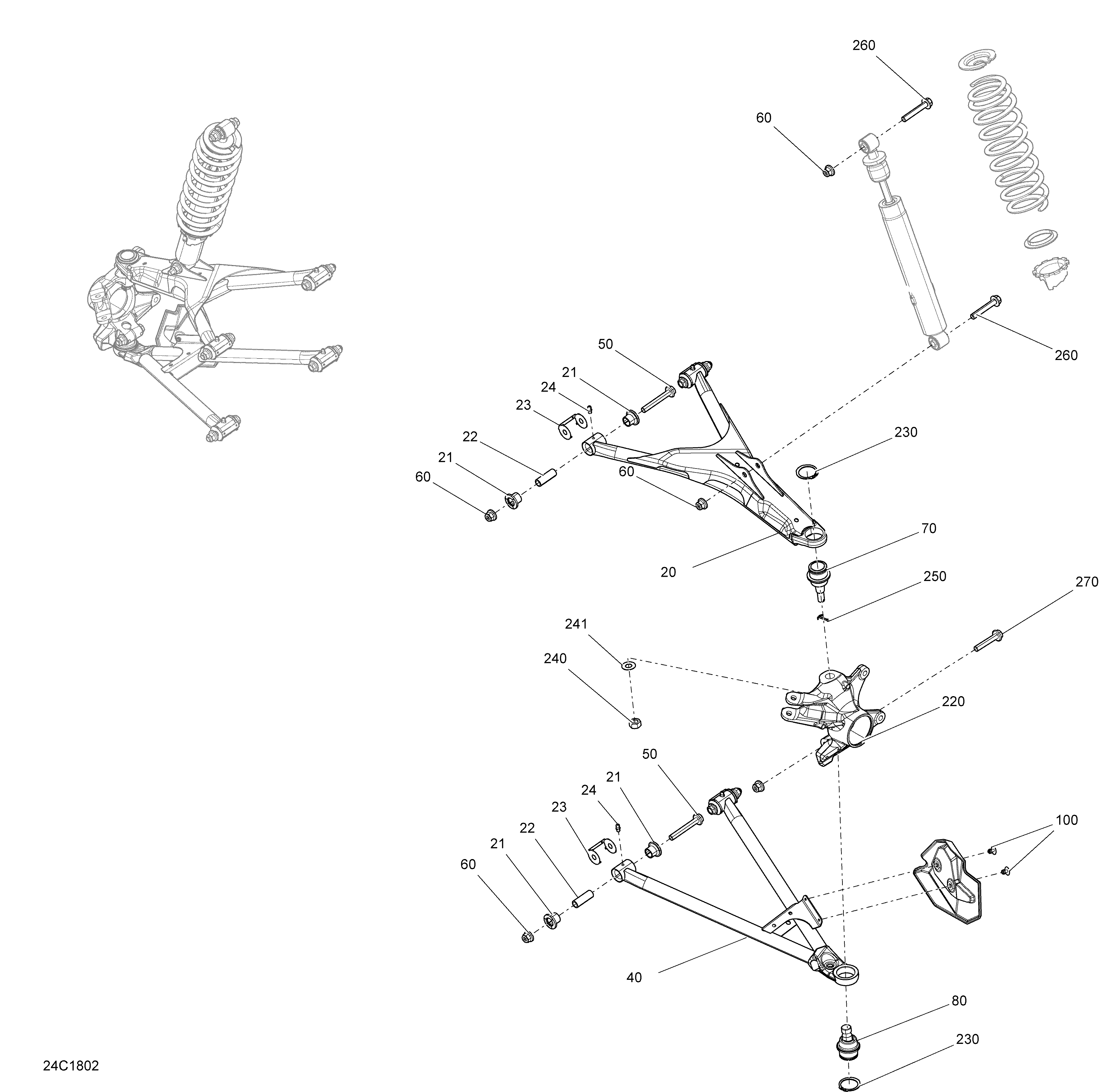

07- Front Suspension Defender - All Models Except Package CAB для BRP 6- Defender MAX HD8 - 2018
-
№АртикулНазвание
-
20706203251 LH Front Upper Arm. Package BASE, STD, DPSLH Front Upper Arm. Package BASE, STD, DPS
-
20706203251 LH Front Upper Arm. Package XT, HunterLH Front Upper Arm. Package XT, Hunter
-
20706203252 RH Front Upper Arm. Package BASE, STD, DPSRH Front Upper Arm. Package BASE, STD, DPS
-
20706203252 RH Front Upper Arm. Package XT, HunterRH Front Upper Arm. Package XT, Hunter
-
21706202088 CushionCushion
-
22703500875 Bushing KitBushing Kit
-
23703500875 Bushing KitBushing Kit
-
24408200700 Grease FittingGrease Fitting
-
40706203028 LH Front Lower Arm. Package XT, HunterLH Front Lower Arm. Package XT, Hunter
-
40706203028 LH Front Lower Arm. Package BASE, STD, DPSLH Front Lower Arm. Package BASE, STD, DPS
-
40706203029 RH Front Lower Arm. Package BASE, STD, DPSRH Front Lower Arm. Package BASE, STD, DPS
-
40706203029 RH Front Lower Arm. Package XT, HunterRH Front Lower Arm. Package XT, Hunter
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
70706203084 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
160706202135 RH ProtectorRH Protector
-
160706202134 LH ProtectorLH Protector
-
220706202027 LH KnuckleLH Knuckle
-
220706202028 RH KnuckleRH Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
