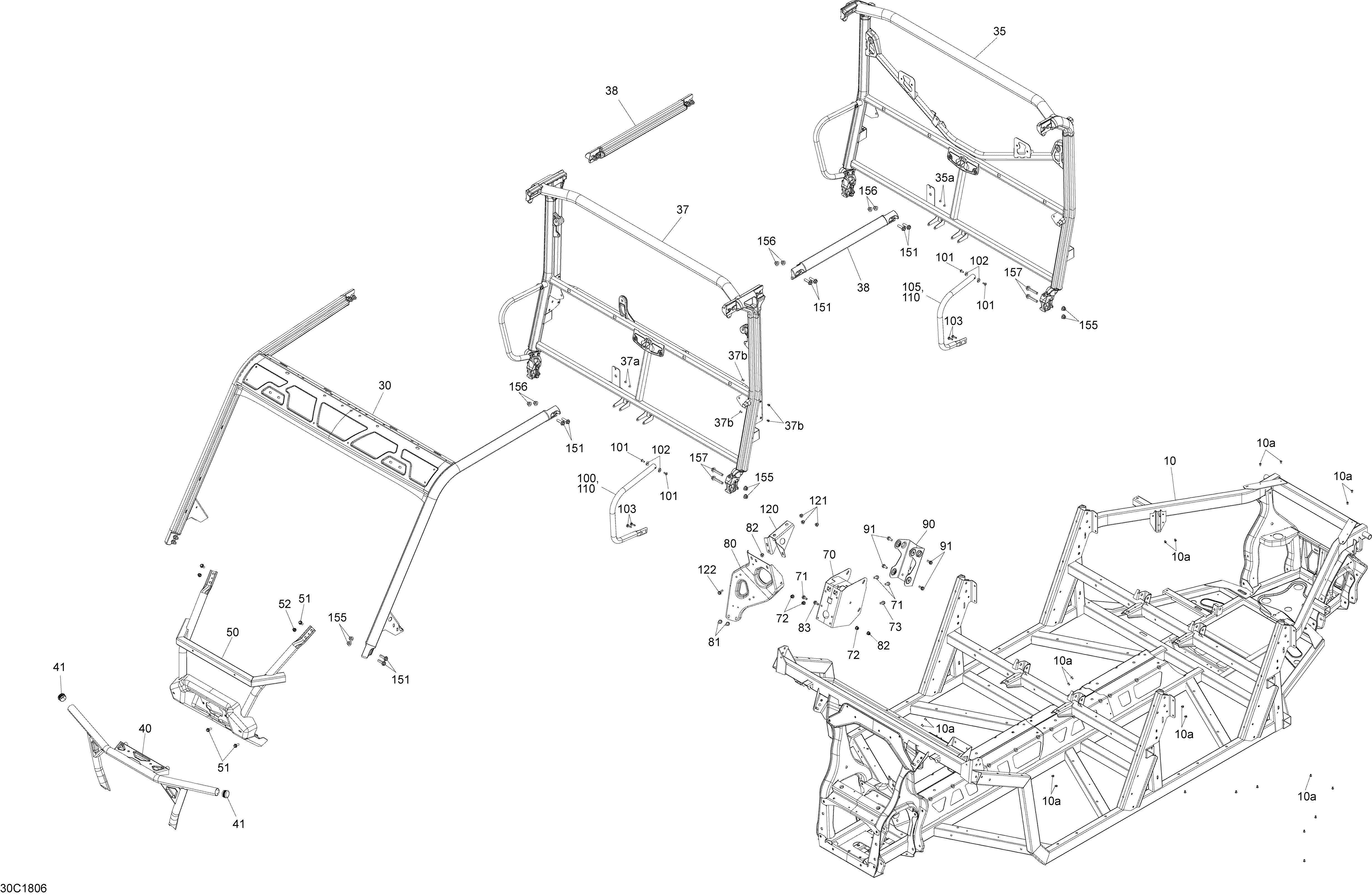

09- Frame Defender MAX для BRP 6- Defender MAX HD8 - 2018
-
№АртикулНазвание
-
10715005223 Frame Kit Black. Includes 10 to 10aFrame Kit Black. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715005053 Front Cage Profile Kit. Model Without CabFront Cage Profile Kit. Model Without Cab
-
30715005059 Front Cage Profile Kit. Model With CabFront Cage Profile Kit. Model With Cab
-
35715003569 Black, Rear Cage Kit. Includes 35 to 35aBlack, Rear Cage Kit. Includes 35 to 35a
-
35a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35715003569 Black, Rear Cage KitBlack, Rear Cage Kit
-
37715003770 Black, Central Cage Kit. Includes 37 to 37aBlack, Central Cage Kit. Includes 37 to 37a
-
37a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
37b390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
38705205401 Black, Cage ExtensionBlack, Cage Extension
-
40715004407 XT Front Bumper. Incl 40a>40dXT Front Bumper. Incl 40a>40d
-
40a250000806 Torx Truss M8 X 90. Not IllustratedTorx Truss M8 X 90. Not Illustrated
-
40b705206398 Bumper Spacer. Not IllustratedBumper Spacer. Not Illustrated
-
40c233281414 Hex. Flanged Elastic Nut M8. Not IllustratedHex. Flanged Elastic Nut M8. Not Illustrated
-
40d207682044 Hex. Flanged Screw M8 X 20. Not IllustratedHex. Flanged Screw M8 X 20. Not Illustrated
-
41705202455 CapCap
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
80705206185 DPS SupportDPS Support
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90705204429 Steering SupportSteering Support
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705204594 LH Protector TubeLH Protector Tube
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
105705204590 LH Side ProtectLH Side Protect
-
110705204592 RH Protector TubeRH Protector Tube
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
151250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
152207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
153705202223 Offset WasherOffset Washer
-
154250000789 Torx Truss M6X14Torx Truss M6X14
-
155233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
156233201466 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
157207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
