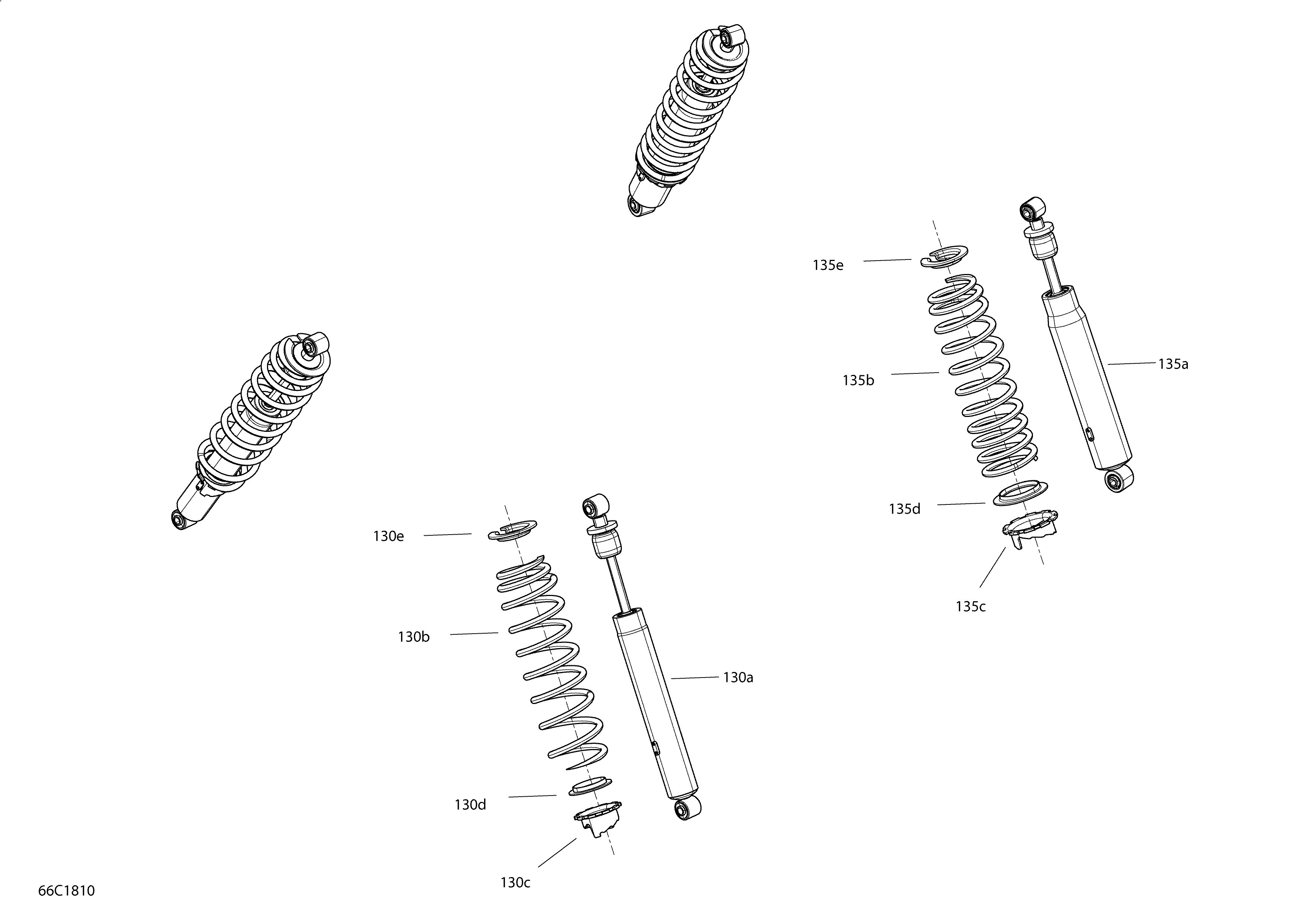

07- Shocks - Package BASE для BRP 6- Defender MAX HD8 - 2018
-
№АртикулНазвание
-
130a706202602 Front ShockFront Shock
-
130b706202770 Deep Black, Front Spring. Non Max ModelDeep Black, Front Spring. Non Max Model
-
130b706202666 Deep Black, Front Spring. Max ModelDeep Black, Front Spring. Max Model
-
130c706001893 Adjust RingAdjust Ring
-
130d503187500 Spring GuideSpring Guide
-
130e706001894 Spring CupSpring Cup
-
135a706002485 ShockShock
-
135b706002638 Deep Black, Rear Spring. Non Max ModelDeep Black, Rear Spring. Non Max Model
-
135b706002537 Deep Black, Rear Spring. Max ModelDeep Black, Rear Spring. Max Model
-
135c706000910 Adjustable RingAdjustable Ring
-
135d706000911 Protector RingProtector Ring
-
135e706001894 Spring CupSpring Cup
