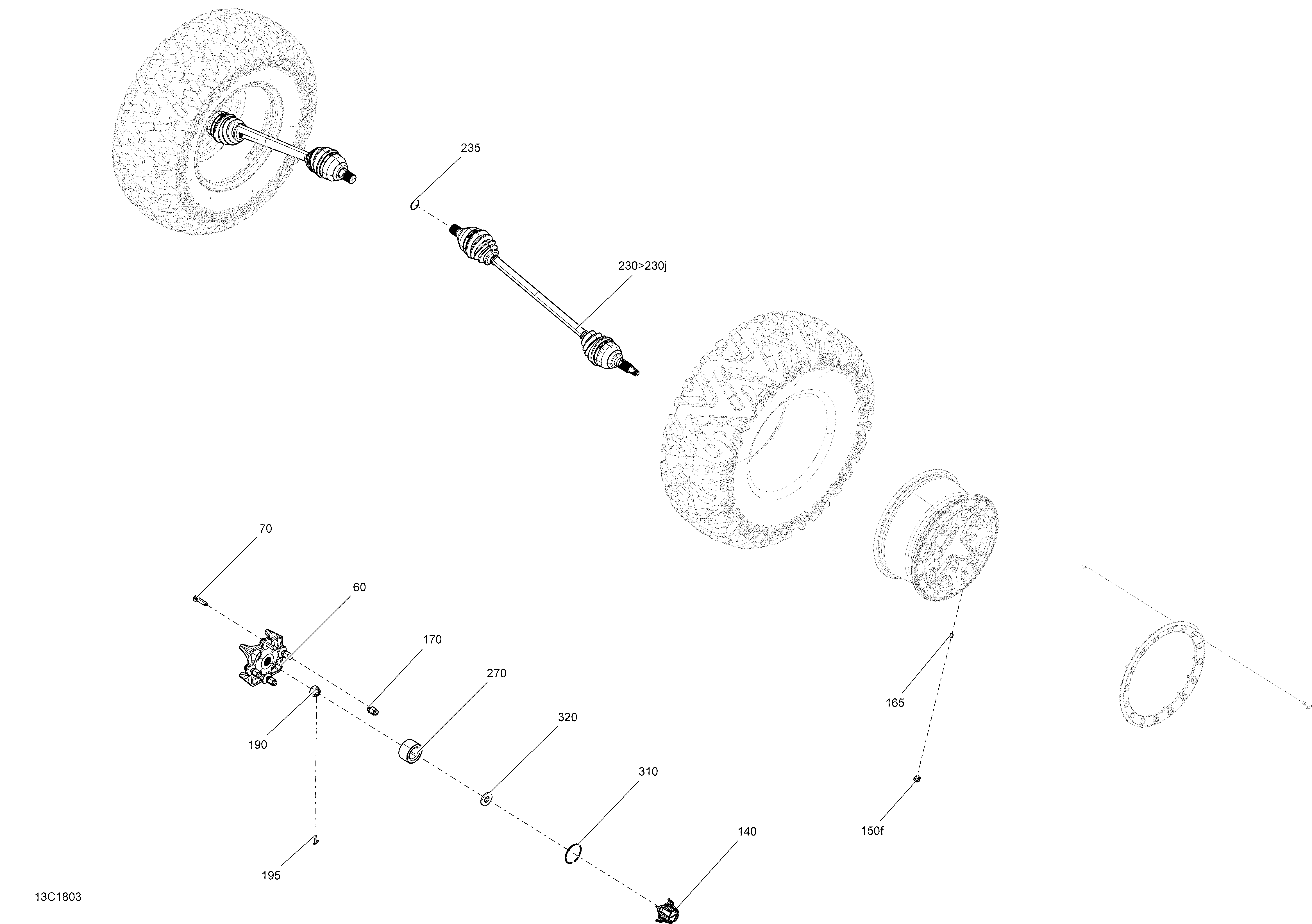

08- Rear Drive - All Models для BRP 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS - 2018
-
№АртикулНазвание
-
60705502122 Wheel HubWheel Hub
-
70250300625 Wheel Stud M12X1.5Wheel Stud M12X1.5
-
140705401841 Wheel CapWheel Cap
-
165293000110 Valve CapValve Cap
-
170250100196 Black Wheel Nut M12 X 1.50Black Wheel Nut M12 X 1.50
-
190250100193 Castle Nut M20Castle Nut M20
-
195250400084 Cotter PinCotter Pin
-
230>230j705502154 Homocinetic Joint. Package STDHomocinetic Joint. Package STD
-
230>230j705502154 Homocinetic Joint. Package XDSDPSHomocinetic Joint. Package XDSDPS
-
230>230j705502362 Homocinetic Joint. Package XRSDPSHomocinetic Joint. Package XRSDPS
-
230>230j705502362 Homocinetic Joint. Package XRSDPSHomocinetic Joint. Package XRSDPS
-
230>230j705502362 Homocinetic Joint. Package XRSDPSHomocinetic Joint. Package XRSDPS
-
230a715900447 CV JointCV Joint
-
230b715900448 Plunging JointPlunging Joint
-
230c715900449 Circlip JointCirclip Joint
-
230d715900450 Boot Kit, Wheel SideBoot Kit, Wheel Side
-
230e715900455 Oetiker Clamp, LargeOetiker Clamp, Large
-
230f715900456 Oetiker Clamp, SmallOetiker Clamp, Small
-
230g715900451 Boot Kit, Differential SideBoot Kit, Differential Side
-
230h715900455 Oetiker Clamp, LargeOetiker Clamp, Large
-
230j715900456 Oetiker Clamp, SmallOetiker Clamp, Small
-
235293300196 O-RingO-Ring
-
270293350109 Ball BearingBall Bearing
-
310293370102 CirclipCirclip
-
320250200170 Conical Spring Washer M20Conical Spring Washer M20
