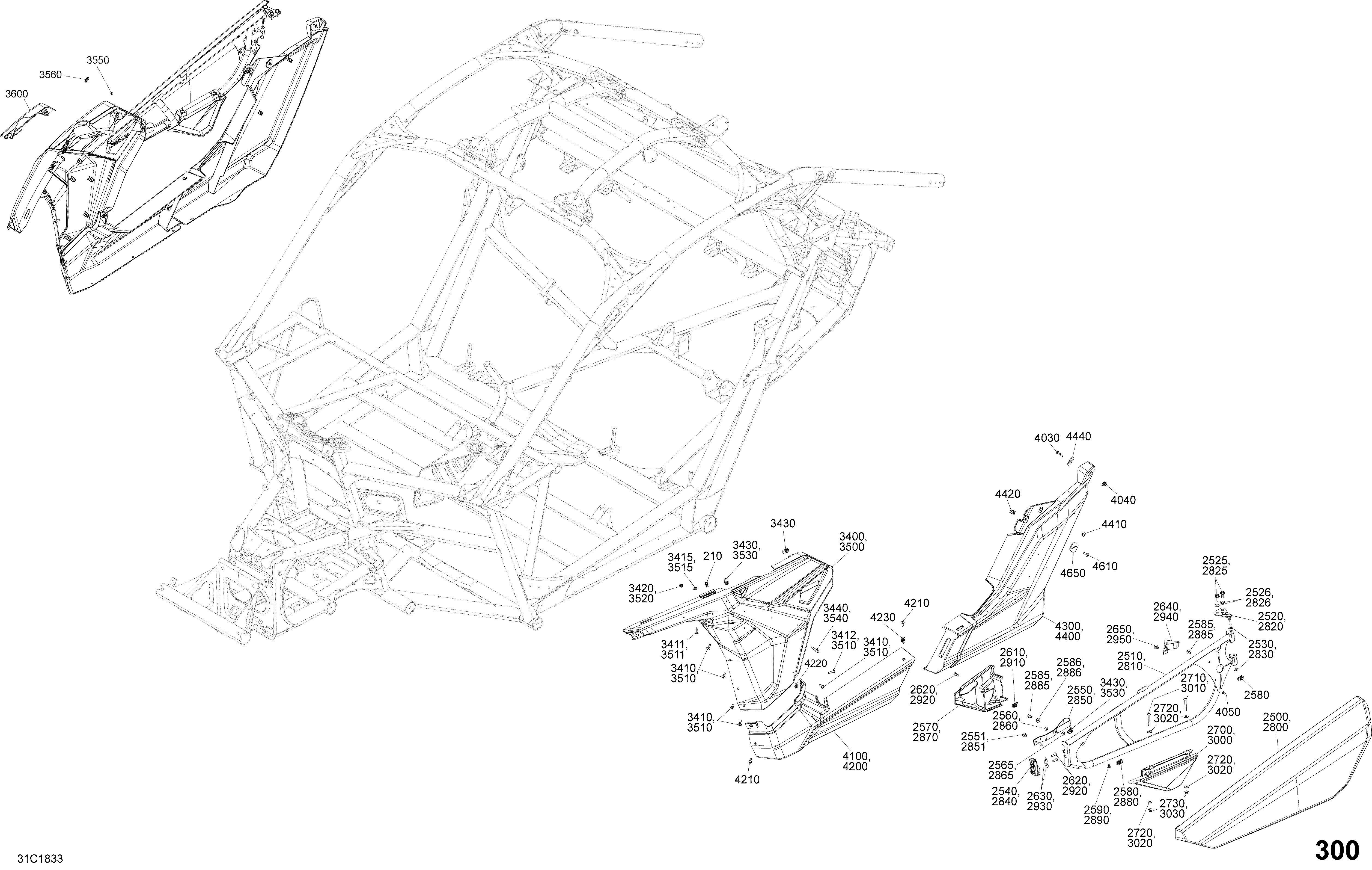

09- Body Parts - Triple Black - Package XDS DPS - Side Section для BRP 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS - 2018
-
№АртикулНазвание
-
210705010721 ClipClip
-
2500705011115 Black LH Door PanelBlack LH Door Panel
-
2510705012564 Black LH Door FrameBlack LH Door Frame
-
2520705011187 Door SupportDoor Support
-
2525207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2526234081430 Flat Washer M8Flat Washer M8
-
2530234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2540705012183 LH LatchLH Latch
-
2550293850126 BeltBelt
-
2551293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
2560293730070 Belt StopperBelt Stopper
-
2565293730072 Belt StopperBelt Stopper
-
2570705010734 LH Latch CoverLH Latch Cover
-
2580250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2585250000721 Torx ScrewTorx Screw
-
2586234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2590293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2610250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2630234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2640293850129 Door BeltDoor Belt
-
2650293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2700705010732 LH Lower Door PanelLH Lower Door Panel
-
2710250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
2720234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2730233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2800705011116 Black RH Door PanelBlack RH Door Panel
-
2810705012565 Black RH Door FrameBlack RH Door Frame
-
2820705011187 Door SupportDoor Support
-
2825207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2826234081430 Flat Washer M8Flat Washer M8
-
2830234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
2840705012184 RH LatchRH Latch
-
2850293850126 BeltBelt
-
2851293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
2860293730070 Belt StopperBelt Stopper
-
2865293730072 Belt StopperBelt Stopper
-
2870705010735 RH Latch CoverRH Latch Cover
-
2880250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2885250000721 Torx ScrewTorx Screw
-
2886234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2890293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2910250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2920250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2930234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2940293850129 Door BeltDoor Belt
-
2950293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
3000705010733 RH Lower Door PanelRH Lower Door Panel
-
3010250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
3020234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3030233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3400715004064 LH Front Lateral Panel KitLH Front Lateral Panel Kit
-
3410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3411250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3412250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
3415233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3420293450274 InsertInsert
-
3430250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3440250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3500715004074 RH Front Lateral PanelRH Front Lateral Panel
-
3510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3511250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3515233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3520293450274 InsertInsert
-
3530250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
3540250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
3550233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3560517303756 GrommetGrommet
-
3600705010334 RH Side Panel CoverRH Side Panel Cover
-
4030250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
4040250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4050250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4100705009513 LH Central Lateral PanelLH Central Lateral Panel
-
4200705009514 RH Central Lateral PanelRH Central Lateral Panel
-
4210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4220250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4230705010872 InsertInsert
-
4300705010676 LH Rear Lateral PanelLH Rear Lateral Panel
-
4400705010677 RH Rear Lateral PanelRH Rear Lateral Panel
-
4410293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4420250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
4440705003841 Support PlateSupport Plate
-
4610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4650705003841 Support PlateSupport Plate
