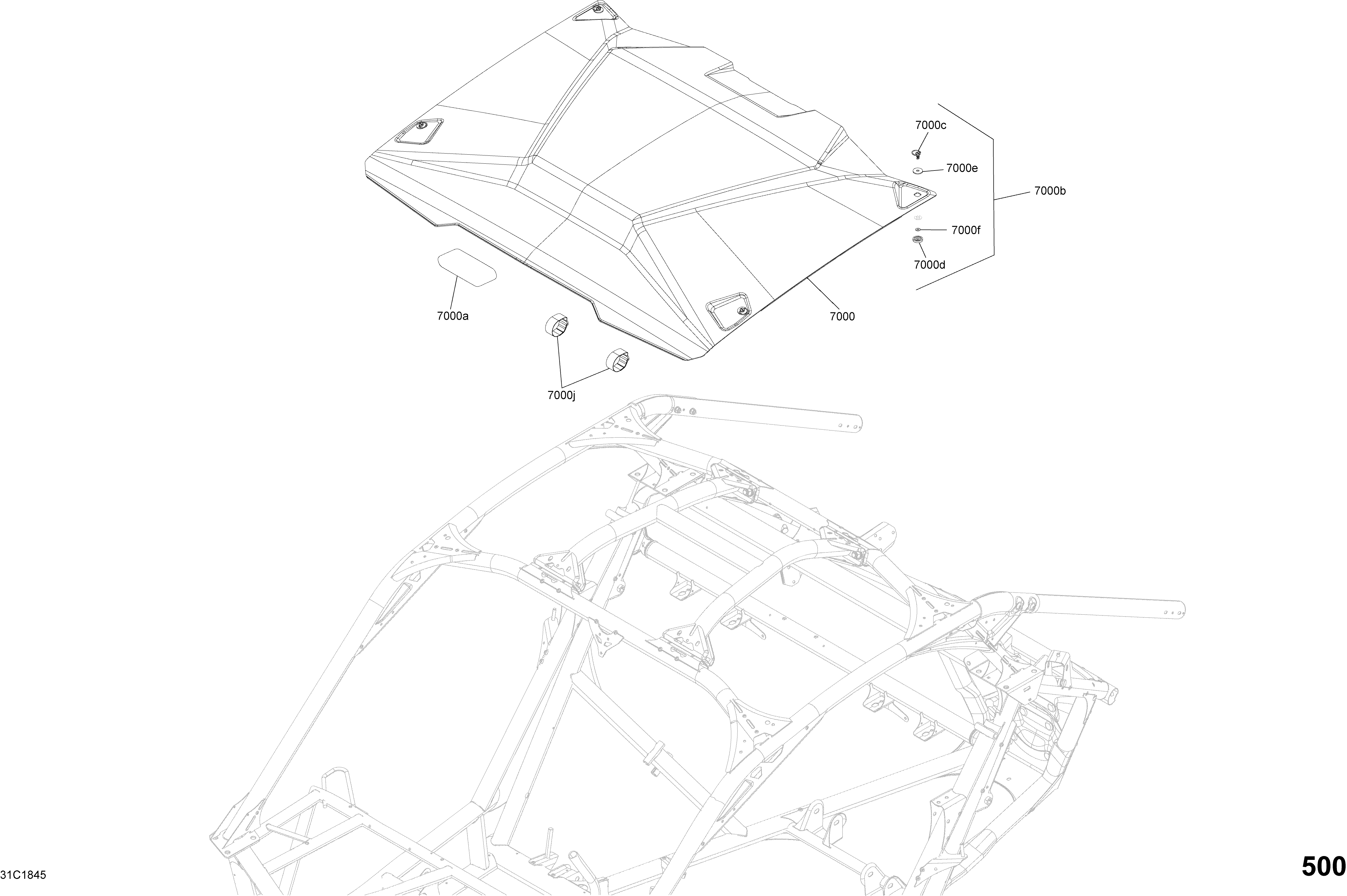

09- Body Parts - Triple Black - Package Xrs DPS - Roof Section для BRP 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS - 2018
-
№АртикулНазвание
-
7000>7000j715002902 Sport Roof Kit. Includes 7000 to 7000jSport Roof Kit. Includes 7000 to 7000j
-
7000a704904566 CAN-AM DecalCAN-AM Decal
-
7000b715003815 Quarter Turn Service KitQuarter Turn Service Kit
-
7000c715003815 Quarter Turn Service KitQuarter Turn Service Kit
-
7000d705011055 Quarter Turn Urethane WasherQuarter Turn Urethane Washer
-
7000e250200165 Flat Washer M6Flat Washer M6
-
7000f705002650 WasherWasher
-
7000j705011280 StrapStrap
