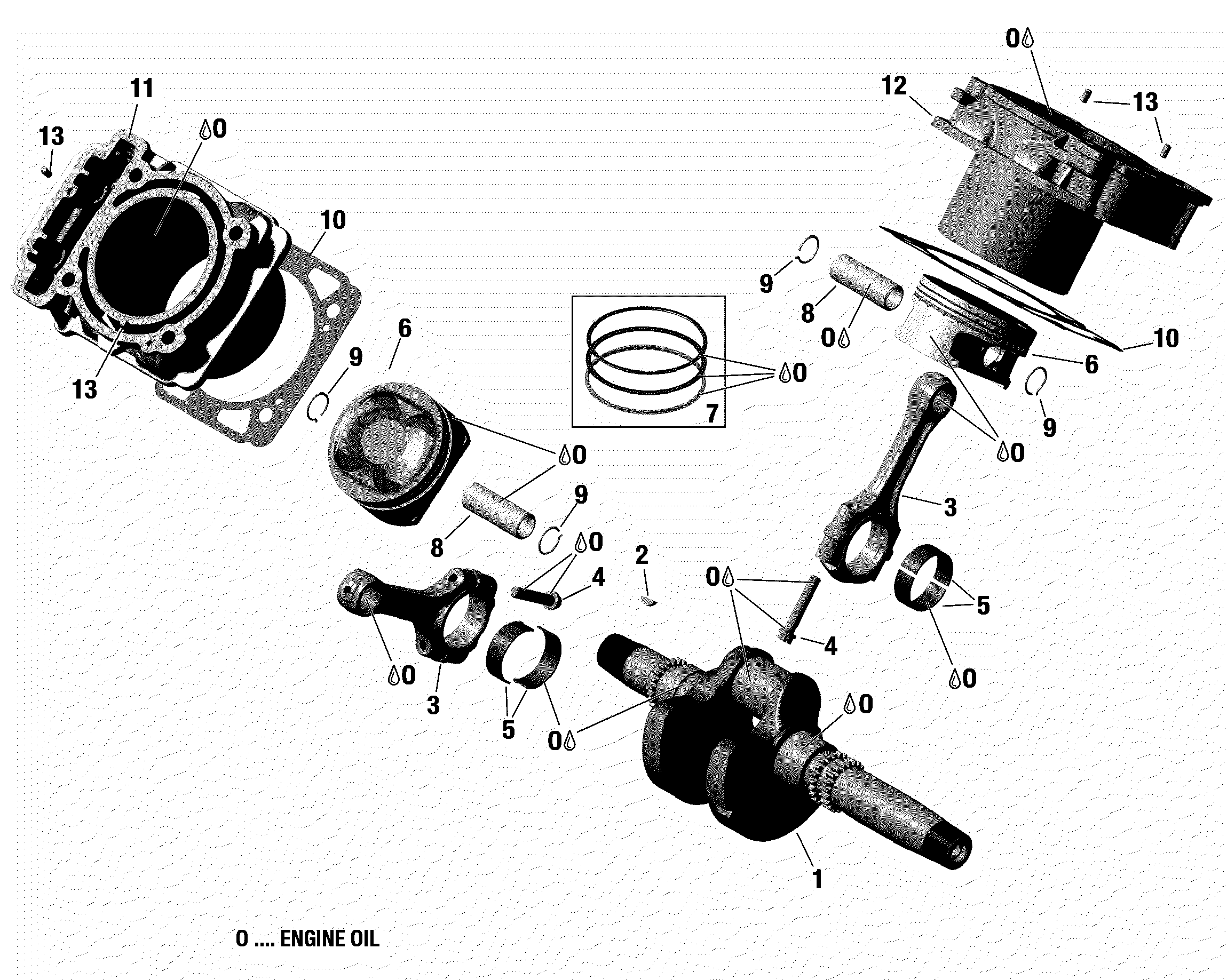

01- Crankshaft, Piston And Cylinder для BRP 1- Maverick Trail 800R EFI - 2018
-
№АртикулНазвание
-
1420219748 CrankshaftCrankshaft
-
2420246570 Woodruff Key 4 X 5Woodruff Key 4 X 5
-
3>4420217429 Connecting Rod Ass'yConnecting Rod Ass'y
-
4420641645 Connecting Rod Screw M8 X 1Connecting Rod Screw M8 X 1
-
5420233980 Plain Bearing 40 X 43 X 15Plain Bearing 40 X 43 X 15
-
6>7420685714 Piston Ass'y, 90.958 mmPiston Ass'y, 90.958 mm
-
7420296774 Piston Ring SetPiston Ring Set
-
8420216270 Piston PinPiston Pin
-
9420845107 Piston CirclipPiston Circlip
-
10420630210 GasketGasket
-
11420613587 Cylinder With SleeveCylinder With Sleeve
-
12420613587 Cylinder With SleeveCylinder With Sleeve
-
13420929650 Drive Pin 5 X 10Drive Pin 5 X 10
