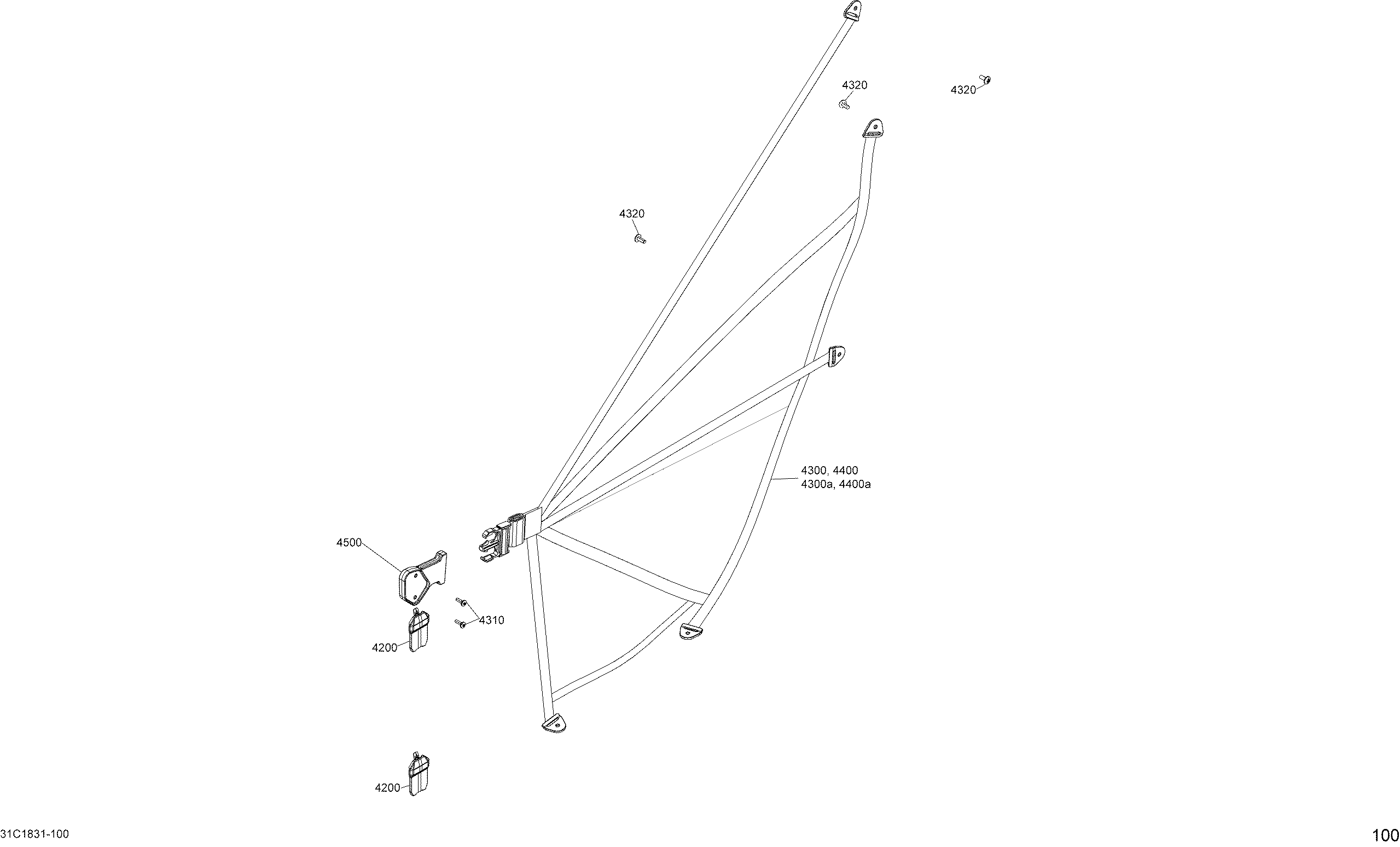

09 - BODY, Safety Net, Maverick Trail - 800R EFI для BRP 1- Maverick Trail 800R EFI - 2018
-
№АртикулНазвание
-
4200705012703 Hinge CoverHinge Cover
-
4300707900604 LH Front Safety Net. Includes 4300 to 4300aLH Front Safety Net. Includes 4300 to 4300a
-
4300a707900049 Upper LinkUpper Link
-
4310250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4320250000721 Torx ScrewTorx Screw
-
4400707900605 RH Front Safety Net. Includes 4400 to 4400aRH Front Safety Net. Includes 4400 to 4400a
-
4400a707900049 Upper LinkUpper Link
-
4500707900592 Safety Net LinkSafety Net Link
