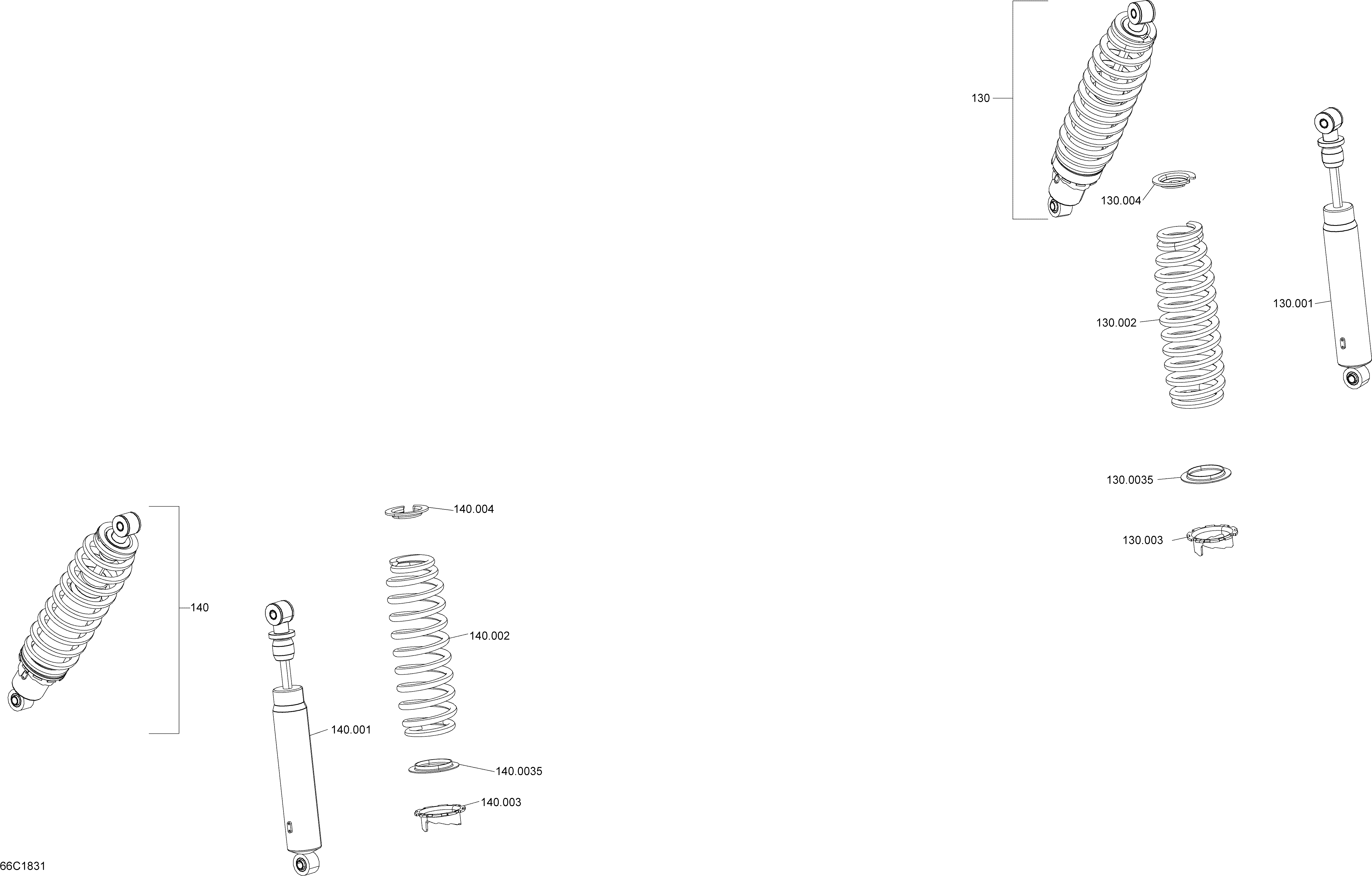

08- Shocks Maverick Trail для BRP 1- Maverick Trail 800R EFI - 2018
-
№АртикулНазвание
-
130.001706002719 Rear ShockRear Shock
-
130.002706002720 Deep Black Rear Spring. White ModelDeep Black Rear Spring. White Model
-
130.002706002720 Deep Black Rear Spring. Camo ModelDeep Black Rear Spring. Camo Model
-
130.002706003007 Red Rear Spring. Red ModelRed Rear Spring. Red Model
-
130.002706003008 Sunburst Yellow Rear Spring. Yellow ModelSunburst Yellow Rear Spring. Yellow Model
-
130.003706000910 Adjustable RingAdjustable Ring
-
130.0035706000911 Protector RingProtector Ring
-
130.004706001894 Spring CupSpring Cup
-
140.001706202835 Front ShockFront Shock
-
140.002706202836 Deep Black Front Spring. White ModelDeep Black Front Spring. White Model
-
140.002706202836 Deep Black Front Spring. Camo ModelDeep Black Front Spring. Camo Model
-
140.002706203173 Red Front Spring. Red ModelRed Front Spring. Red Model
-
140.002706203172 Sunburst Yellow Front Spring. Yellow ModelSunburst Yellow Front Spring. Yellow Model
-
140.003706000910 Adjustable RingAdjustable Ring
-
140.0035706000911 Protector RingProtector Ring
-
140.004706001894 Spring CupSpring Cup
