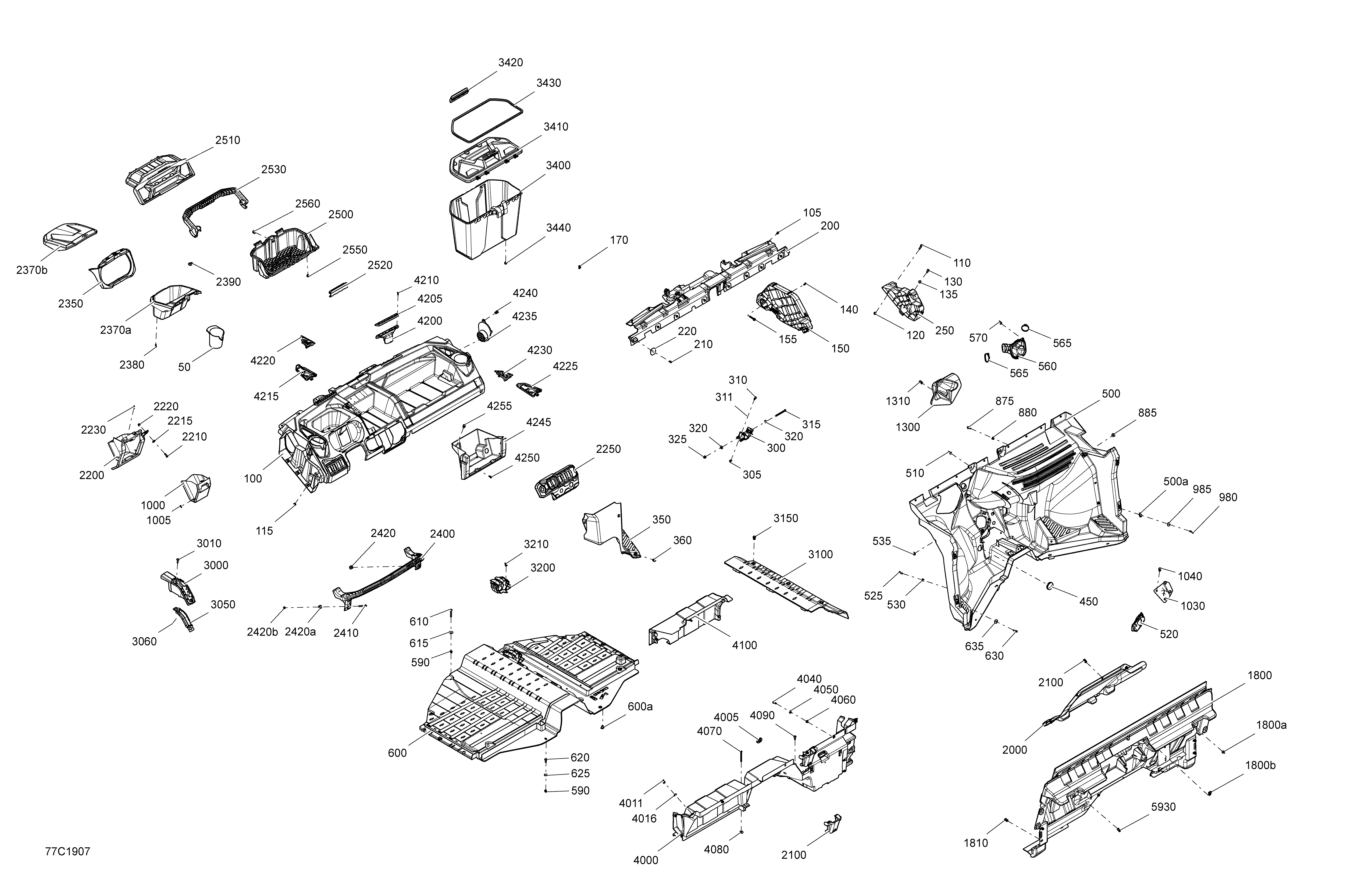

09- Cab Interior - XT CAB для BRP 002 - Defender HD8 - North America - 2019
-
№АртикулНазвание
-
50707900288 Cup HolderCup Holder
-
50707900288 Cup HolderCup Holder
-
100715005584 Dashboard KitDashboard Kit
-
100715005584 Dashboard KitDashboard Kit
-
105250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
105250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
110207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
110207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
115250000721 Torx ScrewTorx Screw
-
115250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
130250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
130250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
135233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
135233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
140250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
140250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
150707900249 Dash SupportDash Support
-
150707900249 Dash SupportDash Support
-
155207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
155207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
200707900296 Upper Front DeflectorUpper Front Deflector
-
200707900296 Upper Front DeflectorUpper Front Deflector
-
210250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
210250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
220705003841 Support PlateSupport Plate
-
220705003841 Support PlateSupport Plate
-
250707900367 RH SupportRH Support
-
250707900367 RH SupportRH Support
-
300707900402 ClampClamp
-
300707900402 ClampClamp
-
310207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
310207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
311234061410 Flat Washer 6 mmFlat Washer 6 mm
-
311234061410 Flat Washer 6 mmFlat Washer 6 mm
-
315207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
315207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
320234062670 Flat Washer, StainlessFlat Washer, Stainless
-
320234062670 Flat Washer, StainlessFlat Washer, Stainless
-
325233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
325233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
350707900289 Front Bulkhead CoverFront Bulkhead Cover
-
350707900289 Front Bulkhead CoverFront Bulkhead Cover
-
360293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
360293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
450293250242 Rubber CoverRubber Cover
-
450293250242 Rubber CoverRubber Cover
-
500707900430 Front Bulkhead. Includes 500 to 500aFront Bulkhead. Includes 500 to 500a
-
500707900430 Front Bulkhead. Includes 500 to 500aFront Bulkhead. Includes 500 to 500a
-
500a250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
500a250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520707900408 DPS CoverDPS Cover
-
520707900408 DPS CoverDPS Cover
-
525250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
525250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
560707900390 RH Rubber CoverRH Rubber Cover
-
560707900390 RH Rubber CoverRH Rubber Cover
-
565293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
565293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
570293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
570293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
600707900431 Floor. Includes 600 to 600aFloor. Includes 600 to 600a
-
600707900431 Floor. Includes 600 to 600aFloor. Includes 600 to 600a
-
600a250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
600a250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
610250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
610250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
615250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
615250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
625234062670 Flat Washer, StainlessFlat Washer, Stainless
-
625234062670 Flat Washer, StainlessFlat Washer, Stainless
-
630250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
630250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
635250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
635250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
875250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
875250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
880233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
885234062670 Flat Washer, StainlessFlat Washer, Stainless
-
885234062670 Flat Washer, StainlessFlat Washer, Stainless
-
980250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
980250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
985250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
985250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1000707900252 DrawerDrawer
-
1000707900252 DrawerDrawer
-
1005293300194 O-RingO-Ring
-
1005293300194 O-RingO-Ring
-
1030707900645 Steering Column DeflectorSteering Column Deflector
-
1030707900645 Steering Column DeflectorSteering Column Deflector
-
1040293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1040293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1300707900389 Exterior CoverExterior Cover
-
1300707900389 Exterior CoverExterior Cover
-
1310293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1310293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1800707900635 Rear Upper Deflector Ass'y. Includes 1800 to 1800bRear Upper Deflector Ass'y. Includes 1800 to 1800b
-
1800707900635 Rear Upper Deflector Ass'y. Includes 1800 to 1800bRear Upper Deflector Ass'y. Includes 1800 to 1800b
-
1800a293830005 Rubber BumperRubber Bumper
-
1800a293830005 Rubber BumperRubber Bumper
-
1800b250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1800b250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1810293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2000707900326 Engine Service CoverEngine Service Cover
-
2000707900326 Engine Service CoverEngine Service Cover
-
2010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2100707900419 Support belt coverSupport belt cover
-
2100707900419 Support belt coverSupport belt cover
-
2200707900251 LH Lower DashLH Lower Dash
-
2200707900251 LH Lower DashLH Lower Dash
-
2210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2215234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2215234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2220250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
2220250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
2230250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2230250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2250707900320 Switches PanelSwitches Panel
-
2250707900730 Support SwitchSupport Switch
-
2350707900358 Cluster SupportCluster Support
-
2350707900358 Cluster SupportCluster Support
-
2370707900606 Storage Bin ASS'Y. Includes 2370 to 2370bStorage Bin ASS'Y. Includes 2370 to 2370b
-
2370707900606 Storage Bin ASS'Y. Includes 2370 to 2370bStorage Bin ASS'Y. Includes 2370 to 2370b
-
2370a707900284 Storage BinStorage Bin
-
2370a707900284 Storage BinStorage Bin
-
2370b707900225 Storage CoverStorage Cover
-
2370b707900225 Storage CoverStorage Cover
-
2380241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
2380241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
2390705003264 GrommetGrommet
-
2390705003264 GrommetGrommet
-
2400707900248 Passenger HandholdPassenger Handhold
-
2400707900248 Passenger HandholdPassenger Handhold
-
2410250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
2410250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
2420269500725 Nut Housing Ass'y. Includes 2420 to 2420bNut Housing Ass'y. Includes 2420 to 2420b
-
2420269500725 Nut Housing Ass'y. Includes 2420 to 2420bNut Housing Ass'y. Includes 2420 to 2420b
-
2420a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2420a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2420b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
2420b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
2500707900244 Glove Box BaseGlove Box Base
-
2500707900244 Glove Box BaseGlove Box Base
-
2510707900245 Glove Box CoverGlove Box Cover
-
2510707900245 Glove Box CoverGlove Box Cover
-
2520269501945 ClipClip
-
2520269501945 ClipClip
-
2530707900567 HandleHandle
-
2530707900567 HandleHandle
-
2550293830005 Rubber BumperRubber Bumper
-
2550293830005 Rubber BumperRubber Bumper
-
2560293000120 CapCap
-
2560293000120 CapCap
-
3000707900608 Shifter GateShifter Gate
-
3000707900608 Shifter GateShifter Gate
-
3010250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3010250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3050707900506 Shifter Gate DeflectorShifter Gate Deflector
-
3050707900506 Shifter Gate DeflectorShifter Gate Deflector
-
3060250100178 Push NutPush Nut
-
3060250100178 Push NutPush Nut
-
3100707900324 Floor CoverFloor Cover
-
3100707900324 Floor CoverFloor Cover
-
3150293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3150293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3200707900325 Hose SupportHose Support
-
3200707900325 Hose SupportHose Support
-
3210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3210293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
3400715003314 Storage BoxStorage Box
-
3400715003314 Storage BoxStorage Box
-
3410715003314 Storage BoxStorage Box
-
3410715003314 Storage BoxStorage Box
-
3420269501945 ClipClip
-
3420269501945 ClipClip
-
3430293250453 Neoprene SealNeoprene Seal
-
3430293250453 Neoprene SealNeoprene Seal
-
3440293830005 Rubber BumperRubber Bumper
-
3440293830005 Rubber BumperRubber Bumper
-
4000707900228 Rear Lower BulkheadRear Lower Bulkhead
-
4000707900228 Rear Lower BulkheadRear Lower Bulkhead
-
4005705005156 Oval WasherOval Washer
-
4005705005156 Oval WasherOval Washer
-
4010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4010293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4011293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4011293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4016503192494 WasherWasher
-
4016503192494 WasherWasher
-
4040250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4040250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4050234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4050234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4070250000954 Torx Screw M6 X 70Torx Screw M6 X 70
-
4070250000954 Torx Screw M6 X 70Torx Screw M6 X 70
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
4100707900282 Battery CoverBattery Cover
-
4100707900282 Battery CoverBattery Cover
-
4200707900452 Central AdaptorCentral Adaptor
-
4200707900452 Central AdaptorCentral Adaptor
-
4205707900434 Front GridFront Grid
-
4205707900434 Front GridFront Grid
-
4210250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
4210250000759 Torx-Truss Pt K40 X 16Torx-Truss Pt K40 X 16
-
4215707900437 LH AdaptorLH Adaptor
-
4215707900437 LH AdaptorLH Adaptor
-
4220707900435 LH GridLH Grid
-
4220707900435 LH GridLH Grid
-
4225707900455 RH AdaptorRH Adaptor
-
4225707900455 RH AdaptorRH Adaptor
-
4230707900436 RH GridRH Grid
-
4230707900436 RH GridRH Grid
-
4235707900438 Side FlangeSide Flange
-
4235707900438 Side FlangeSide Flange
-
4240293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4240293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4245707900417 RH Lower DashRH Lower Dash
-
4245707900417 RH Lower DashRH Lower Dash
-
4250250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4250250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
4255293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4255293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5910250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
5910250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
5920233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
5920233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
5930293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5930293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
5980293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
5980293150100 Pop Rivet 3/16''Pop Rivet 3/16''
Все узлы модели:
- 00- Model Numbers
- 01- Cooling
- 01- Crankcase - HD8
- 01- Crankshaft, Piston And Cylinder - HD8
- 01- Cylinder Head, Front - HD8
- 01- Cylinder Head, Rear - HD8
- 01- Engine
- 01- Engine Cooling - HD8
- 01- Engine Lubrication - HD8
- 01- Exhaust - HD8
- 02- Air Intake - HD8
- 02- Air Intake Manifold And Throttle Body - HD8
- 02- Fuel - EVAP
- 02- Fuel - No EVAP
- 03- Magneto And Electric Starter - HD8
- 05- Gear Box 1 - 420686757
- 05- Gear Box 2 - 420686757
- 05- Gear Box And Components - 420686757
- 05- Transmission - HD8
- 06- Brakes - HD8
- 07- Front Drive - HD8
- 07- Front Suspension - HD8 - Except Package XT CAB
- 07- Front Suspension - HD8 - XT CAB
- 07- Shocks - Package BASE - DPS - XT- PRO- Pro International
- 07- Shocks - XT CAB
- 07- Steering
- 07- Wheels And Tires - DPS - XT
- 07- Wheels And Tires - HD8 - Package BASE
- 07- Wheels And Tires - XT CAB
- 08- Drive Shaft - HD8
- 08- Rear Drive - HD8
- 08- Rear Suspension - HD8
- 09- Body - Camo
- 09- Body - Hyper Silver
- 09- Body - Intense Red
- 09- Body - Squadron Green
- 09- Cab Interior - Except XT CAB
- • 09- Cab Interior - XT CAB
- 09- Decals - HD8 - BASE
- 09- Decals - HD8 - DPS
- 09- Decals - HD8 - XT
- 09- Decals - HD8 - XT CAB
- 09- Enclosure Cab - XT CAB - North America - Dash & Roof Section
- 09- Enclosure Cab - XT CAB - North America - Front Door Section
- 09- Enclosure Cab - XT CAB - North America - Windshield Section - Radio Support Parts
- 09- Frame - North America
- 09- Rear Cargo Box
- 09- Seat
- 09- Storage Tray
- 10- Electrical - HD8
- 10- Engine Harness And Electronic Module - HD8
- 10- Main Harness 710006159
