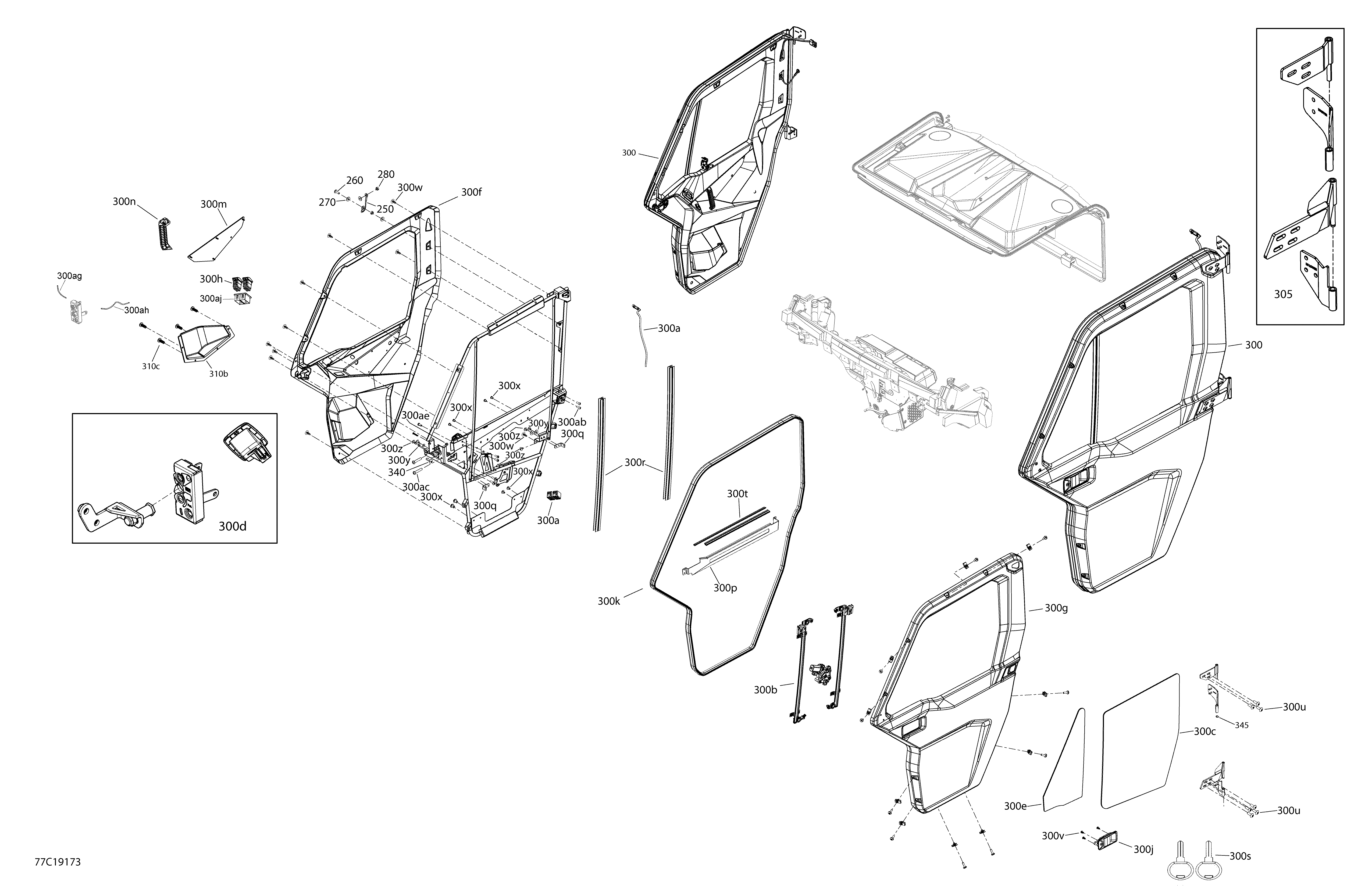

09- Enclosure Cab - XT CAB - North America - Front Door Section для BRP 002 - Defender HD8 - North America - 2019
-
№АртикулНазвание
-
250703500982 Door Limit Device KitDoor Limit Device Kit
-
260250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
270234062670 Flat Washer, StainlessFlat Washer, Stainless
-
280708300737 BushingBushing
-
300705800336 LH Front Door Rigid Ass'y. Includes 300 to 300ajLH Front Door Rigid Ass'y. Includes 300 to 300aj
-
300a705800047 Driver Door HarnessDriver Door Harness
-
300b705800046 LH Window ActuatorLH Window Actuator
-
300c705800016 LH Roll-Down GlassLH Roll-Down Glass
-
300d703500915 LH Interior Latch KitLH Interior Latch Kit
-
300e705800044 A-Pillar Glass LHA-Pillar Glass LH
-
300f705800322 LH Routed Inner DoorLH Routed Inner Door
-
300g705800320 LH Door Outer PanelLH Door Outer Panel
-
300h705800048 Window SwitchWindow Switch
-
300j705800015 Exterior Paddle LatchExterior Paddle Latch
-
300k705800289 Seal 705800290 - 5000 MMSeal 705800290 - 5000 MM
-
300m715003567 LH Door Panel KitLH Door Panel Kit
-
300n705800324 LH Interior HandleLH Interior Handle
-
300p705800148 LH Door Frame BracketLH Door Frame Bracket
-
300q705800150 Window Guide BracketWindow Guide Bracket
-
300r705800151 Window Guide ExtrusionWindow Guide Extrusion
-
300s705800184 Key SetKey Set
-
300t705800293 Flocked Beltline Trim 705800294 - 600 MMFlocked Beltline Trim 705800294 - 600 MM
-
300u250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
300v205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
300w293730011 Black DartBlack Dart
-
300x205460860 Socket Screw M6 X 8Socket Screw M6 X 8
-
300y234062670 Flat Washer, StainlessFlat Washer, Stainless
-
300z250000747 Torx-Truss M/S M6 X 10Torx-Truss M/S M6 X 10
-
300aa250000789 Torx Truss M6X14. NOT SHOWNTorx Truss M6X14. NOT SHOWN
-
300ab250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
300ac205484060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
300ad233261494 Hex. Elastic Flanged Nut M6. NOT SHOWNHex. Elastic Flanged Nut M6. NOT SHOWN
-
300ae233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
300af207662044 Hex. Flanged Screw M6 X 20. NOT SHOWNHex. Flanged Screw M6 X 20. NOT SHOWN
-
300ag715900493 LH Latch Cable 2.4''LH Latch Cable 2.4''
-
300ah715900504 Interior Latch Cable 28''Interior Latch Cable 28''
-
300aj715900526 LH Power Window Switch HousingLH Power Window Switch Housing
-
305703500917 LH Hinge KitLH Hinge Kit
-
310b705800145 LH PocketLH Pocket
-
310c705009405 Plastic DartPlastic Dart
-
310d250000874 Torx Truss M8 X 25. Not ShownTorx Truss M8 X 25. Not Shown
-
340250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
345293370125 Retaining RingRetaining Ring
-
300705800337 RH Front Door Rigid Ass'y. Includes 400 to 400ajRH Front Door Rigid Ass'y. Includes 400 to 400aj
-
300a705800050 Passenger Door HarnessPassenger Door Harness
-
300b705800051 RH Window ActuatorRH Window Actuator
-
300c705800025 RH Roll-Down GlassRH Roll-Down Glass
-
300d703500916 RH Interior Latch KitRH Interior Latch Kit
-
300e705800052 A-Pillar Glass RHA-Pillar Glass RH
-
300f705800323 RH Routed Inner DoorRH Routed Inner Door
-
300g705800321 RH Door Outer PanelRH Door Outer Panel
-
300h705800048 Window SwitchWindow Switch
-
300j705800015 Exterior Paddle LatchExterior Paddle Latch
-
300k705800289 Seal 705800290 - 5000 MMSeal 705800290 - 5000 MM
-
300m715003568 Door Panel Kit RHDoor Panel Kit RH
-
300n705800325 Interior Handle RHInterior Handle RH
-
300p705800149 RH Door Frame BracketRH Door Frame Bracket
-
300q705800150 Window Guide BracketWindow Guide Bracket
-
300r705800151 Window Guide ExtrusionWindow Guide Extrusion
-
300t705800293 Flocked Beltline Trim 705800294 - 600 MMFlocked Beltline Trim 705800294 - 600 MM
-
300u250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
300v205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
300w293730011 Black DartBlack Dart
-
300x205460860 Socket Screw M6 X 8Socket Screw M6 X 8
-
300y234062670 Flat Washer, StainlessFlat Washer, Stainless
-
300z250000747 Torx-Truss M/S M6 X 10Torx-Truss M/S M6 X 10
-
300aa250000789 Torx Truss M6X14. NOT SHOWNTorx Truss M6X14. NOT SHOWN
-
300ab250000616 Socket Screw, M6 X 16Socket Screw, M6 X 16
-
300ac205484060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
300ad233261494 Hex. Elastic Flanged Nut M6. NOT SHOWNHex. Elastic Flanged Nut M6. NOT SHOWN
-
300ae233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
300af207662044 Hex. Flanged Screw M6 X 20. NOT SHOWNHex. Flanged Screw M6 X 20. NOT SHOWN
-
300ag715900494 RH Latch Cable 2.9''RH Latch Cable 2.9''
-
300ah715900504 Interior Latch Cable 28''Interior Latch Cable 28''
-
300aj715900527 RH Power Window Switch HousingRH Power Window Switch Housing
-
305703500918 RH Hinge KitRH Hinge Kit
-
310b705800146 RH PocketRH Pocket
-
310c705009405 Plastic DartPlastic Dart
-
310d250000874 Torx Truss M8 X 25. NOT SHOWNTorx Truss M8 X 25. NOT SHOWN
-
340250000874 Torx Truss M8 X 25Torx Truss M8 X 25
