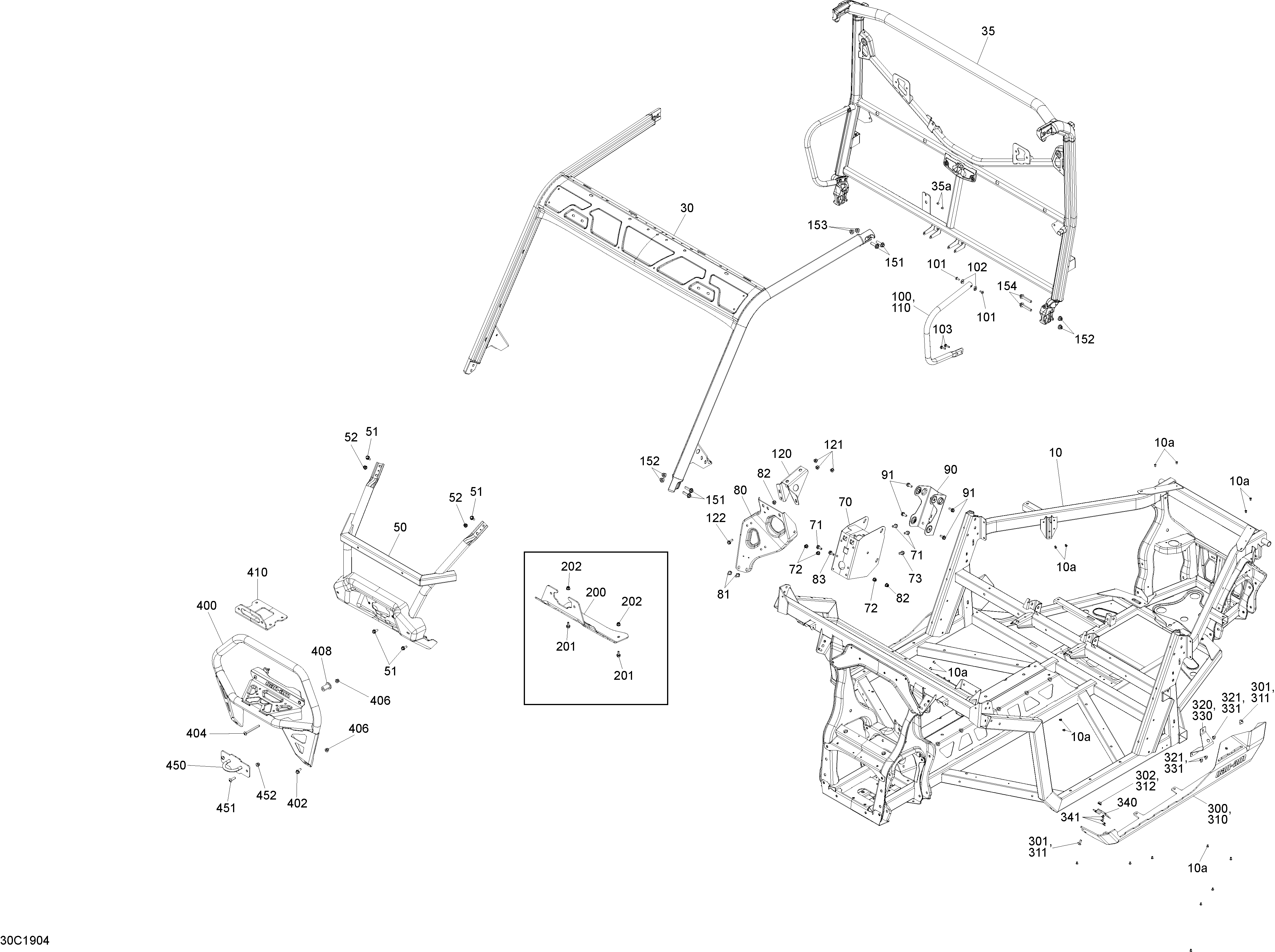

09- Frame - North America для BRP 002 - Defender HD8 - North America - 2019
-
№АртикулНазвание
-
10715005592 Frame KitFrame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715005057 Front Cage Profile Kit. Package CABFront Cage Profile Kit. Package CAB
-
30715005554 Front Cage Kit. Except Packages CAB & XMR - Yellow HoodFront Cage Kit. Except Packages CAB & XMR - Yellow Hood
-
30715005558 Yellow, Front Cage Kit. Package XMR - Yellow HoodYellow, Front Cage Kit. Package XMR - Yellow Hood
-
35715003569 Black, Rear Cage Kit. Black Hood. Includes 35 to 35aBlack, Rear Cage Kit. Black Hood. Includes 35 to 35a
-
35715005226 Yellow, Rear Cage Kit. Yellow HoodYellow, Rear Cage Kit. Yellow Hood
-
35a390402200 Pop Rivet 3/16''. Black HoodPop Rivet 3/16''. Black Hood
-
40705206536 XT Front Bumper. Packages CAB & XTXT Front Bumper. Packages CAB & XT
-
41705202455 Cap. Packages CAB & XTCap. Packages CAB & XT
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
80705206185 DPS Support. Package BASEDPS Support. Package BASE
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705204594 LH Protector Tube. Black HoodLH Protector Tube. Black Hood
-
100705206478 Sunburst Yellow, LH Side Protector . Yellow HoodSunburst Yellow, LH Side Protector . Yellow Hood
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
110705204592 RH Protector Tube. Black HoodRH Protector Tube. Black Hood
-
110705206477 Sunburst Yellow, RH Side Protector. Yellow HoodSunburst Yellow, RH Side Protector. Yellow Hood
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
135250100199 Insert Half Hex Body M6 x 1.0. Except Packages CAB & BASEInsert Half Hex Body M6 x 1.0. Except Packages CAB & BASE
-
200705205847 Front Skid Plate. Package Hunting EditionFront Skid Plate. Package Hunting Edition
-
201207682044 Hex. Flanged Screw M8 X 20. Package Hunting EditionHex. Flanged Screw M8 X 20. Package Hunting Edition
-
202233281414 Hex. Flanged Elastic Nut M8. Package Hunting EditionHex. Flanged Elastic Nut M8. Package Hunting Edition
-
300705206338 Sunburst Yellow, LH Rock Slider Welded. Package XMR - Sunburst YellowSunburst Yellow, LH Rock Slider Welded. Package XMR - Sunburst Yellow
-
300705206482 Black, LH Rock Slider Welded. Package XMR - CamoBlack, LH Rock Slider Welded. Package XMR - Camo
-
300705206482 Black, LH Rock Slider Welded. Package Hunting EditionBlack, LH Rock Slider Welded. Package Hunting Edition
-
300705206488 LH Rock Slider Welded Red. Package XTPLH Rock Slider Welded Red. Package XTP
-
301250000746 Torx Truss Screw M8 X 16. Packages Hunting Edition, XTP, XMRTorx Truss Screw M8 X 16. Packages Hunting Edition, XTP, XMR
-
302233181414 Hex. Flanged Nut M8. Packages Hunting Edition, XTP, XMRHex. Flanged Nut M8. Packages Hunting Edition, XTP, XMR
-
305293150108 Pop Rivet 3/16”. Packages Hunting Edition, XTP, XMRPop Rivet 3/16”. Packages Hunting Edition, XTP, XMR
-
310705206339 Sunburst Yellow, RH Rock Slider. Package XMR - Sunburst YellowSunburst Yellow, RH Rock Slider. Package XMR - Sunburst Yellow
-
310705206481 Black, RH Rock Slider. Package XMR - CamoBlack, RH Rock Slider. Package XMR - Camo
-
310705206481 Black, RH Rock Slider. Package Hunting EditionBlack, RH Rock Slider. Package Hunting Edition
-
310705206487 Red, RH Rock Slider. Package XTPRed, RH Rock Slider. Package XTP
-
311250000746 Torx Truss Screw M8 X 16. Packages Hunting Edition, XTP, XMRTorx Truss Screw M8 X 16. Packages Hunting Edition, XTP, XMR
-
312233181414 Hex. Flanged Nut M8. Packages Hunting Edition, XTP, XMRHex. Flanged Nut M8. Packages Hunting Edition, XTP, XMR
-
315293150108 Pop Rivet 3/16”. Packages Hunting Edition, XTP, XMRPop Rivet 3/16”. Packages Hunting Edition, XTP, XMR
-
320705206342 LH Rock Slider Support. Packages Hunting Edition, XTP, XMRLH Rock Slider Support. Packages Hunting Edition, XTP, XMR
-
321293150104 Pop Rivet 3/16''. Packages Hunting Edition, XTP, XMRPop Rivet 3/16''. Packages Hunting Edition, XTP, XMR
-
330705206343 RH Rock Slider Support. Packages Hunting Edition, XTP, XMRRH Rock Slider Support. Packages Hunting Edition, XTP, XMR
-
331293150104 Pop Rivet 3/16''. Packages Hunting Edition, XTP, XMRPop Rivet 3/16''. Packages Hunting Edition, XTP, XMR
-
340705206382 Rock Slider Front Support. Packages Hunting Edition, XTP, XMRRock Slider Front Support. Packages Hunting Edition, XTP, XMR
-
341293150104 Pop Rivet 3/16''. Packages Hunting Edition, XTP, XMRPop Rivet 3/16''. Packages Hunting Edition, XTP, XMR
-
400715004405 XMR Front Bumper . Package Hunting EditionXMR Front Bumper . Package Hunting Edition
-
400705206368 Painted Bumper. Package XMR - Sunburst YellowPainted Bumper. Package XMR - Sunburst Yellow
-
400715004405 XMR Front Bumper . Package XMR - CamoXMR Front Bumper . Package XMR - Camo
-
400715004408 XTP Front Bumper. Package XTPXTP Front Bumper. Package XTP
-
402207682044 Hex. Flanged Screw M8 X 20. Package XMRHex. Flanged Screw M8 X 20. Package XMR
-
404250000806 Torx Truss M8 X 90. Package XMRTorx Truss M8 X 90. Package XMR
-
406233281414 Hex. Flanged Elastic Nut M8. Package XMRHex. Flanged Elastic Nut M8. Package XMR
-
408705206398 Bumper Spacer. Package XMRBumper Spacer. Package XMR
-
410705206371 Winch Support. Package XMRWinch Support. Package XMR
-
450705206590 Painted Front Attachment. Package XMRPainted Front Attachment. Package XMR
-
451250000886 Torx Screw M8 X 30. Package XMRTorx Screw M8 X 30. Package XMR
-
452233281414 Hex. Flanged Elastic Nut M8. Package XMRHex. Flanged Elastic Nut M8. Package XMR
-
480250000855 Hex. Flanged Screw M10 X 35. Not ShownHex. Flanged Screw M10 X 35. Not Shown
-
490233201436 Flanged Elastic Nut M10. Not ShownFlanged Elastic Nut M10. Not Shown
-
500233201466 Flanged Elastic Nut M10. Not ShownFlanged Elastic Nut M10. Not Shown
-
510207606046 Hex. Flanged Screw M10 X 60. Not ShownHex. Flanged Screw M10 X 60. Not Shown
