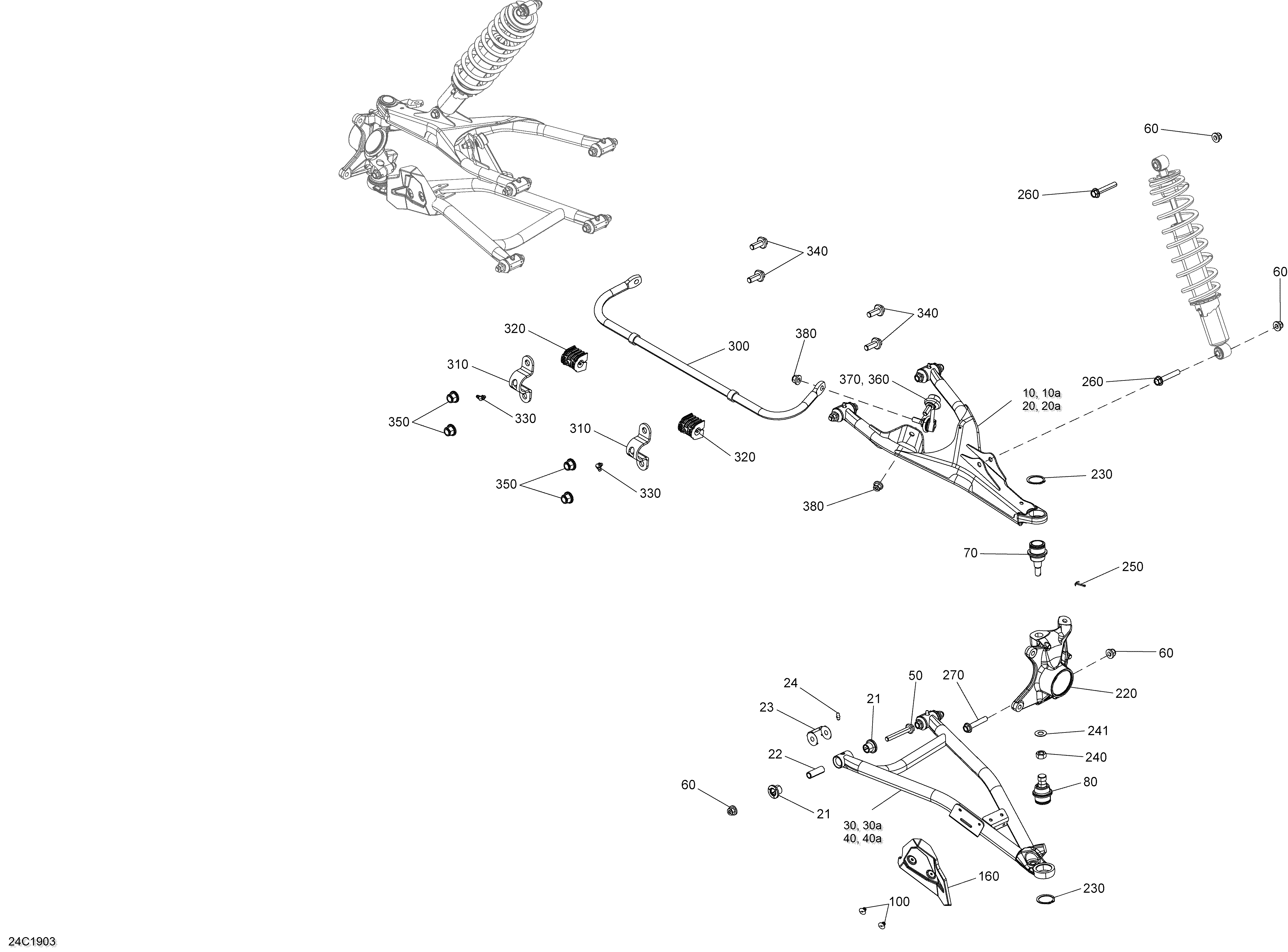

07- Front Suspension - HD10 для BRP 006 - Defender MAX HD10 - XMR - North America - 2019
-
№АртикулНазвание
-
10706203039 Front Suspension Upper Arm. Includes 10 to 10aFront Suspension Upper Arm. Includes 10 to 10a
-
10a706202977 Front Suspension Upper Arm - Left HandFront Suspension Upper Arm - Left Hand
-
20706203040 RH Front Upper Suspension Arm. Includes 20 to 20aRH Front Upper Suspension Arm. Includes 20 to 20a
-
20a706202978 RH Front Suspension Upper ArmRH Front Suspension Upper Arm
-
21703500875 Bushing KitBushing Kit
-
22703500875 Bushing KitBushing Kit
-
23703500875 Bushing KitBushing Kit
-
24408200700 Grease FittingGrease Fitting
-
30706203041 LH Front Suspension Lower Arm. Includes 30 to 30aLH Front Suspension Lower Arm. Includes 30 to 30a
-
30a706202979 LH Front Suspension Lower ArmLH Front Suspension Lower Arm
-
40706203042 RH Front Suspension Lower Arm. Includes 40 to 40aRH Front Suspension Lower Arm. Includes 40 to 40a
-
40a706202980 RH Front Suspension Lower ArmRH Front Suspension Lower Arm
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
70706203084 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
160706202135 RH ProtectorRH Protector
-
170706202134 LH ProtectorLH Protector
-
210706203096 LH Front Machined KnuckleLH Front Machined Knuckle
-
220706203097 RH Front Machined KnuckleRH Front Machined Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
300706203167 Sway-BarSway-Bar
-
310706203437 ClampClamp
-
320706002535 CushionCushion
-
330293550056 Grease Fitting 90°Grease Fitting 90°
-
340250000951 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
350233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
360706202538 Stabilizer Bar Link LHStabilizer Bar Link LH
-
370706202539 Stabilizer Bar Link RHStabilizer Bar Link RH
-
380233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
390234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
