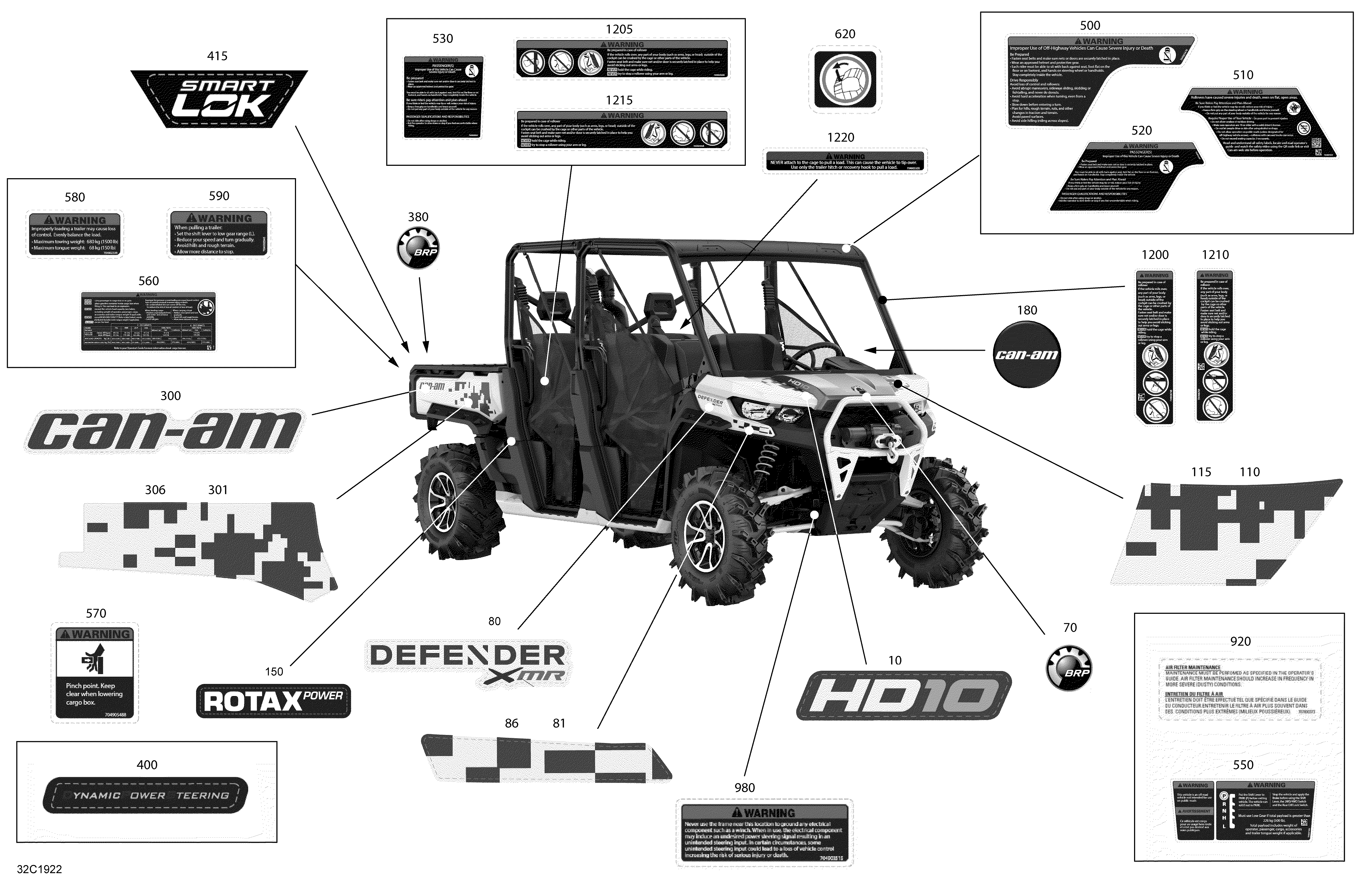

09- Decals - HD10 - XMR для BRP 006 - Defender MAX HD10 - XMR - North America - 2019
-
№АртикулНазвание
-
10704906740 Hood Decal HD10Hood Decal HD10
-
70516008739 BRP Logo, 68mmBRP Logo, 68mm
-
80704906520 Lateral Decal Defender XMRLateral Decal Defender XMR
-
81704907221 LH Front Side DecalLH Front Side Decal
-
86704907222 RH Front Side DecalRH Front Side Decal
-
110704907217 Decal Left CoverDecal Left Cover
-
115704907218 Decal Right CoverDecal Right Cover
-
150704905524 Decal ''Rotax Power''Decal ''Rotax Power''
-
180704904274 Can-Am LogoCan-Am Logo
-
300704906756 CAN-AM DecalCAN-AM Decal
-
301704907219 LH Rear Side DecalLH Rear Side Decal
-
306704907220 RH Rear Side DecalRH Rear Side Decal
-
380516008739 BRP Logo, 68mmBRP Logo, 68mm
-
400704905637 Decal DPSDecal DPS
-
415704907186 Smart-Lok DecalSmart-Lok Decal
-
500704905476 Warning Label Operator's GuideWarning Label Operator's Guide
-
510704907239 Warning Decal Operating GuideWarning Decal Operating Guide
-
520704905487 Warning Label PassengerWarning Label Passenger
-
530704905800 Warning Label Rear PassengerWarning Label Rear Passenger
-
550704907712 Warning Label DashboardWarning Label Dashboard
-
560704907118 Warning Label Cargo LoadWarning Label Cargo Load
-
570704905488 Warning Label InjuryWarning Label Injury
-
580704905479 Warning Label TowingWarning Label Towing
-
590704905481 Warning Label TrailerWarning Label Trailer
-
620704906029 Label SymbolLabel Symbol
-
920707800373 Decal, Air Filter MaintenanceDecal, Air Filter Maintenance
-
980704905495 Warning Label Ground And DPSWarning Label Ground And DPS
-
1200704906768 Warning Label Roll OverWarning Label Roll Over
-
1205704905928 Warning Label Roll OverWarning Label Roll Over
-
1210704906769 Warning Label Roll OverWarning Label Roll Over
-
1215704905930 Warning Label Roll OverWarning Label Roll Over
-
1220704905500 Warning Label CageWarning Label Cage
