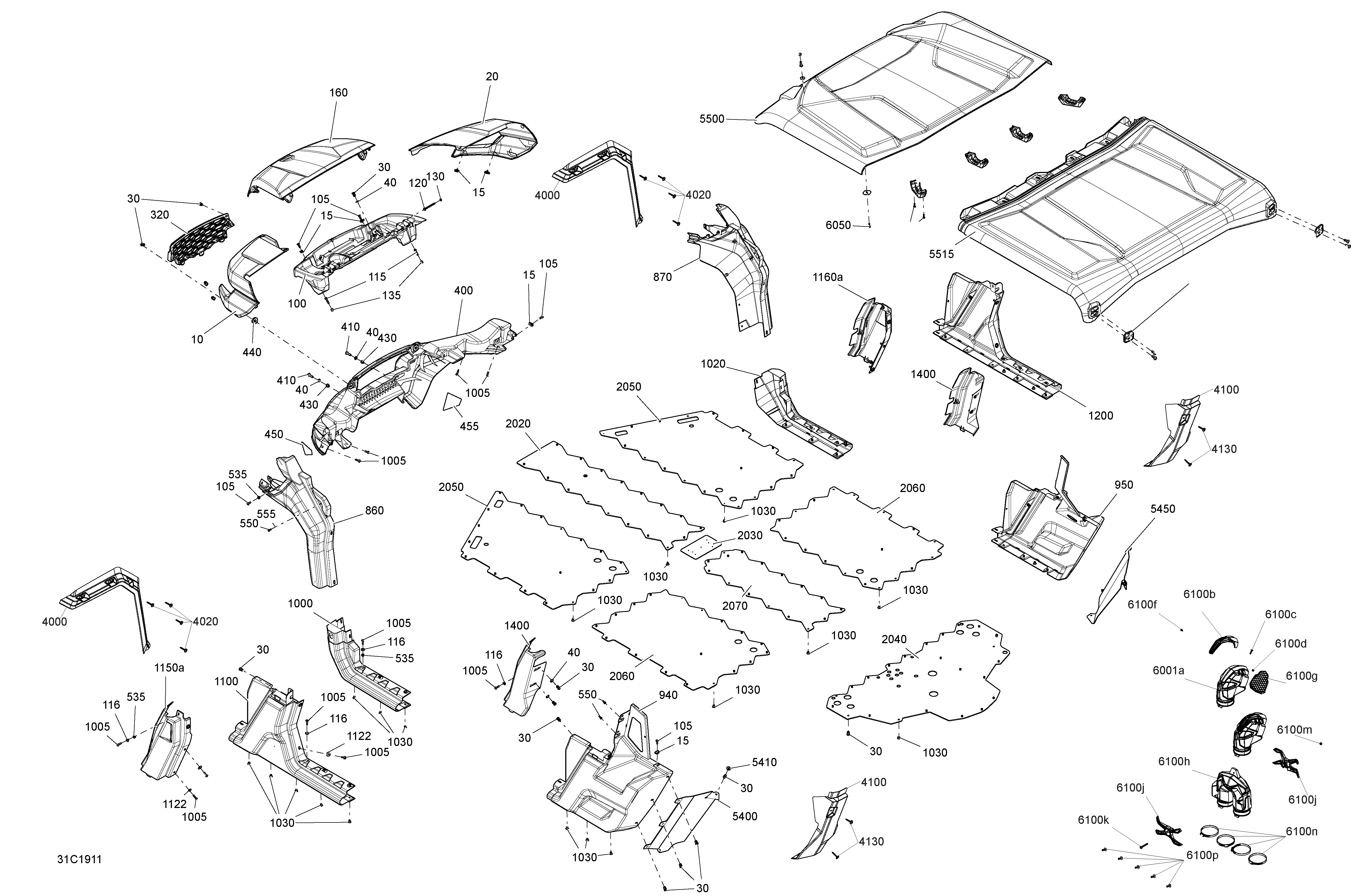

09- Body - Sunburst Yellow для BRP 006 - Defender MAX HD10 - XMR - North America - 2019
-
№АртикулНазвание
-
10705012296 Sunburst Yellow, Front LH FenderSunburst Yellow, Front LH Fender
-
15250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
20705012297 Sunburst Yellow, Front RH FenderSunburst Yellow, Front RH Fender
-
25250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
30293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
40503192494 WasherWasher
-
100705011391 Service CenterService Center
-
105250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
110250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
115210263050 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
116234062670 Flat Washer, StainlessFlat Washer, Stainless
-
120207667554 Screw Hex Flange M6 X 75Screw Hex Flange M6 X 75
-
130732610072 Push NutPush Nut
-
135293900125 BushingBushing
-
160705012300 Carbon Black, Removable HoodCarbon Black, Removable Hood
-
320705009364 Grid Front FasciaGrid Front Fascia
-
330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
400705011392 Front FaciaFront Facia
-
410250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
420503192494 WasherWasher
-
430233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
440705010718 GrommetGrommet
-
450704905072 LH Front ReflectorLH Front Reflector
-
455704905073 RH Front ReflectorRH Front Reflector
-
510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
520250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
525250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
530234062670 Flat Washer, StainlessFlat Washer, Stainless
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
555234051670 Flat Washer M5Flat Washer M5
-
860705008152 LH Front Lateral PanelLH Front Lateral Panel
-
870705008153 RH Front Lateral PanelRH Front Lateral Panel
-
935250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
940705012704 Rear LH Side PanelRear LH Side Panel
-
945293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
950705012705 RH Rear Side PanelRH Rear Side Panel
-
955293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
960250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
970250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
975293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1000705008699 LH Central Lateral PanelLH Central Lateral Panel
-
1005250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1006234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1020705008700 RH Central Lateral PanelRH Central Lateral Panel
-
1025250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1026234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1030293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
1100705013112 LH Middle Side PanelLH Middle Side Panel
-
1105250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1115293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1120250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1122250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1125234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1150a705010601 LH Middle Cage CoverLH Middle Cage Cover
-
1155250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1156250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1160a705010602 RH Middle Cage CoverRH Middle Cage Cover
-
1165250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1166250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1167250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1200705013113 RH Middle Side PanelRH Middle Side Panel
-
1205250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1215293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1220250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
1222250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
1225234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1300715003564 LH Rear Cage Cover KitLH Rear Cage Cover Kit
-
1330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1335503192494 WasherWasher
-
1400715003565 RH Rear Cage Cover KitRH Rear Cage Cover Kit
-
1430293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1435503192494 WasherWasher
-
1880293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2020705009151 Central Skid PlateCentral Skid Plate
-
2025293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2030705010884 Connection PlateConnection Plate
-
2040705011292 Rear Skid PlateRear Skid Plate
-
2045293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2050705010422 Lateral Skid Plate. Except Packages BASE & DPSLateral Skid Plate. Except Packages BASE & DPS
-
2055293150104 Pop Rivet 3/16''. Except Packages BASE & DPSPop Rivet 3/16''. Except Packages BASE & DPS
-
2060705010587 Rear Side Skid Plate. Except Packages BASE & DPSRear Side Skid Plate. Except Packages BASE & DPS
-
2065293150104 Pop Rivet 3/16''. Except Packages BASE & DPSPop Rivet 3/16''. Except Packages BASE & DPS
-
2070705010588 Rear Central Skid PlateRear Central Skid Plate
-
2075293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2100293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
4000705011518 LH Front Fender Flare. Package XMRLH Front Fender Flare. Package XMR
-
4010705011519 Front RH Fender Flare. Package XMRFront RH Fender Flare. Package XMR
-
4020250000840 Torx-Screw Truss Head PT.K50 X 40. Package XMRTorx-Screw Truss Head PT.K50 X 40. Package XMR
-
4100705011522 LH Central Fender Flare. Package XMRLH Central Fender Flare. Package XMR
-
4110705011523 RH Center Fender Flare. Package XMRRH Center Fender Flare. Package XMR
-
4120250000758 Torx Screw M6 X 25. Package XMRTorx Screw M6 X 25. Package XMR
-
4125234062670 Flat Washer, Stainless. Package XMRFlat Washer, Stainless. Package XMR
-
4130250000840 Torx-Screw Truss Head PT.K50 X 40. Package XMRTorx-Screw Truss Head PT.K50 X 40. Package XMR
-
4140233261494 Hex. Elastic Flanged Nut M6. Package XMRHex. Elastic Flanged Nut M6. Package XMR
-
5400705010426 LH Rear DeflectorLH Rear Deflector
-
5410292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
5450705010427 RH Rear DeflectorRH Rear Deflector
-
5460292001663 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
6000a706600236 Air Inlet. Package XMRAir Inlet. Package XMR
-
6000b707002086 Cap. Package XMRCap. Package XMR
-
6000c250000792 Torx Screw M5 X 20. Package XMRTorx Screw M5 X 20. Package XMR
-
6000d233251494 Elastic Flanged Nut M5. Package XMRElastic Flanged Nut M5. Package XMR
-
6000e250000577 Torx Truss K40 X 12. Package XMRTorx Truss K40 X 12. Package XMR
-
6000f706600247 Grate. Package XMRGrate. Package XMR
-
6000g706600205 CVT Outlet. Package XMRCVT Outlet. Package XMR
-
6000h705012556 Trim. Package XMRTrim. Package XMR
-
6000j250000647 Torx Screw M6 X 45. Package XMRTorx Screw M6 X 45. Package XMR
-
6000k232561494 Elastic Stop Nut M6. Package XMRElastic Stop Nut M6. Package XMR
-
6000m293650272 Clamp. Package XMRClamp. Package XMR
-
6000n293150101 Pop Rivet 3/16”. Package XMRPop Rivet 3/16”. Package XMR
-
6000p706600277 Intake Tube. Package XMRIntake Tube. Package XMR
-
6000q706600278 Flexible Joint. Package XMRFlexible Joint. Package XMR
-
6000r250000712 Torx Screw M6 X 20. Package XMRTorx Screw M6 X 20. Package XMR
-
6000s250200164 Flat washer M6. Package XMRFlat washer M6. Package XMR
-
6010232081414 Hex. Nut M8. Not ShownHex. Nut M8. Not Shown
-
6015234082410 Flat Washer 8 mm. Not ShownFlat Washer 8 mm. Not Shown
-
6020250000874 Torx Truss M8 X 25. Not ShownTorx Truss M8 X 25. Not Shown
-
6025250000760 Torx Screw Truss Head K50X20 T20. Not ShownTorx Screw Truss Head K50X20 T20. Not Shown
-
6030250200162 Flat Washer M6.6 X 22. Not ShownFlat Washer M6.6 X 22. Not Shown
-
6035250000874 Torx Truss M8 X 25. Not ShownTorx Truss M8 X 25. Not Shown
-
6040705800131 Roof Anchor. Not ShownRoof Anchor. Not Shown
-
6055705800058 Roof Cap. Not ShownRoof Cap. Not Shown
-
6060250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6065250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6070250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6075234062670 Flat Washer, Stainless. Not ShownFlat Washer, Stainless. Not Shown
-
6080250000807 Torx Screw M6 X 25. Not ShownTorx Screw M6 X 25. Not Shown
-
6085234062670 Flat Washer, Stainless. Not ShownFlat Washer, Stainless. Not Shown
