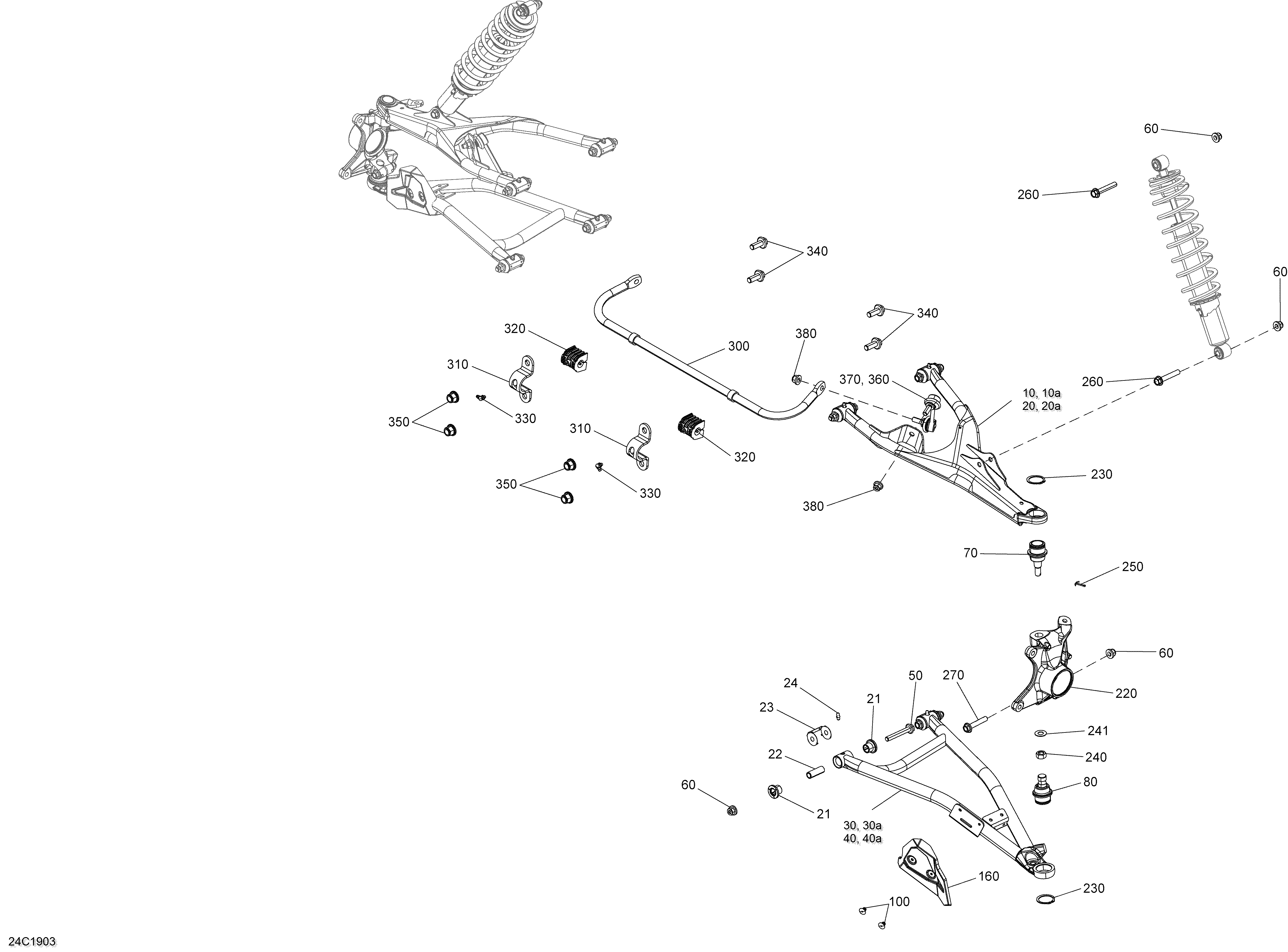

07- Front Suspension - HD10 для BRP 002 - Traxter HD10 - International - 2019
-
№АртикулНазвание
-
10706203039 Front Suspension Upper Arm. Package XMR - SunBurst Yellow. Includes 10 to 10aFront Suspension Upper Arm. Package XMR - SunBurst Yellow. Includes 10 to 10a
-
10a706202977 Front Suspension Upper Arm - Left Hand. Packages CAB, Lone Star Edition & XMRFront Suspension Upper Arm - Left Hand. Packages CAB, Lone Star Edition & XMR
-
10706203257 Red, LH Front Upper Suspension Arm. Package XTP. Includes 10 to 10aRed, LH Front Upper Suspension Arm. Package XTP. Includes 10 to 10a
-
10a706203251 LH Front Upper Arm. Packages Hunting Edition, XTP, XT & DPSLH Front Upper Arm. Packages Hunting Edition, XTP, XT & DPS
-
20706203040 RH Front Upper Suspension Arm. Package XMR - SunBurst Yellow. Includes 20 to 20aRH Front Upper Suspension Arm. Package XMR - SunBurst Yellow. Includes 20 to 20a
-
20a706202978 RH Front Suspension Upper Arm. Packages CAB, Lone Star Edition & XMRRH Front Suspension Upper Arm. Packages CAB, Lone Star Edition & XMR
-
20706203258 Red, RH Front Upper Suspension Arm. Package XTP. Includes 20 to 20aRed, RH Front Upper Suspension Arm. Package XTP. Includes 20 to 20a
-
20a706203252 RH Front Upper Arm. Packages Hunting Edition, XTP, XT & DPSRH Front Upper Arm. Packages Hunting Edition, XTP, XT & DPS
-
21703500875 Bushing KitBushing Kit
-
22703500875 Bushing KitBushing Kit
-
23703500875 Bushing KitBushing Kit
-
24408200700 Grease FittingGrease Fitting
-
30706203041 LH Front Suspension Lower Arm. Package XMR - SunBurst Yellow. Includes 30 to 30aLH Front Suspension Lower Arm. Package XMR - SunBurst Yellow. Includes 30 to 30a
-
30a706202979 LH Front Suspension Lower Arm. Packages CAB, Lone Star Edition & XMRLH Front Suspension Lower Arm. Packages CAB, Lone Star Edition & XMR
-
30706203045 Red, LH Front Lower Suspension Arm. Package XTP. Includes 30 to 30aRed, LH Front Lower Suspension Arm. Package XTP. Includes 30 to 30a
-
30a706203028 LH Front Lower Arm. Packages Hunting Edition, XTP, XT & DPSLH Front Lower Arm. Packages Hunting Edition, XTP, XT & DPS
-
40706203042 RH Front Suspension Lower Arm. Package XMR - SunBurst Yellow. Includes 40 to 40aRH Front Suspension Lower Arm. Package XMR - SunBurst Yellow. Includes 40 to 40a
-
40a706202980 RH Front Suspension Lower Arm. Packages CAB, Lone Star Edition & XMRRH Front Suspension Lower Arm. Packages CAB, Lone Star Edition & XMR
-
40706203046 Red, RH Front Lower Suspension Arm. Package XTP. Includes 40 to 40aRed, RH Front Lower Suspension Arm. Package XTP. Includes 40 to 40a
-
40a706203029 RH Front Lower Arm. Packages Hunting Edition, XTP, XT & DPSRH Front Lower Arm. Packages Hunting Edition, XTP, XT & DPS
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
70706203084 Ball JointBall Joint
-
80706202045 Ball JointBall Joint
-
100293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
160706202135 RH ProtectorRH Protector
-
170706202134 LH ProtectorLH Protector
-
210706203096 LH Front Machined KnuckleLH Front Machined Knuckle
-
220706203097 RH Front Machined KnuckleRH Front Machined Knuckle
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207606046 Hex. Flanged Screw M10 X 60. Package CAB & Lone Star EditionHex. Flanged Screw M10 X 60. Package CAB & Lone Star Edition
-
270207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
300706203167 Sway-Bar. Packages CAB, Lone Star Edition & XMRSway-Bar. Packages CAB, Lone Star Edition & XMR
-
310706203437 Clamp. Packages CAB, Lone Star Edition & XMRClamp. Packages CAB, Lone Star Edition & XMR
-
320706002535 Cushion. Packages CAB, Lone Star Edition & XMRCushion. Packages CAB, Lone Star Edition & XMR
-
330293550056 Grease Fitting 90°. Packages CAB, Lone Star Edition & XMRGrease Fitting 90°. Packages CAB, Lone Star Edition & XMR
-
340250000951 Screw-Hex.Flange DIN.6921. Packages CAB, Lone Star Edition & XMRScrew-Hex.Flange DIN.6921. Packages CAB, Lone Star Edition & XMR
-
350233221466 Elastic Flange Nut M12. Packages CAB, Lone Star Edition & XMRElastic Flange Nut M12. Packages CAB, Lone Star Edition & XMR
-
360706202538 Stabilizer Bar Link LH. Packages CAB, Lone Star Edition & XMRStabilizer Bar Link LH. Packages CAB, Lone Star Edition & XMR
-
370706202539 Stabilizer Bar Link RH. Packages CAB, Lone Star Edition & XMRStabilizer Bar Link RH. Packages CAB, Lone Star Edition & XMR
-
380233201436 Flanged Elastic Nut M10. Packages CAB, Lone Star Edition & XMRFlanged Elastic Nut M10. Packages CAB, Lone Star Edition & XMR
-
390234201474 Conical Spring Washer 10 mm. Packages CAB, Lone Star Edition & XMRConical Spring Washer 10 mm. Packages CAB, Lone Star Edition & XMR
