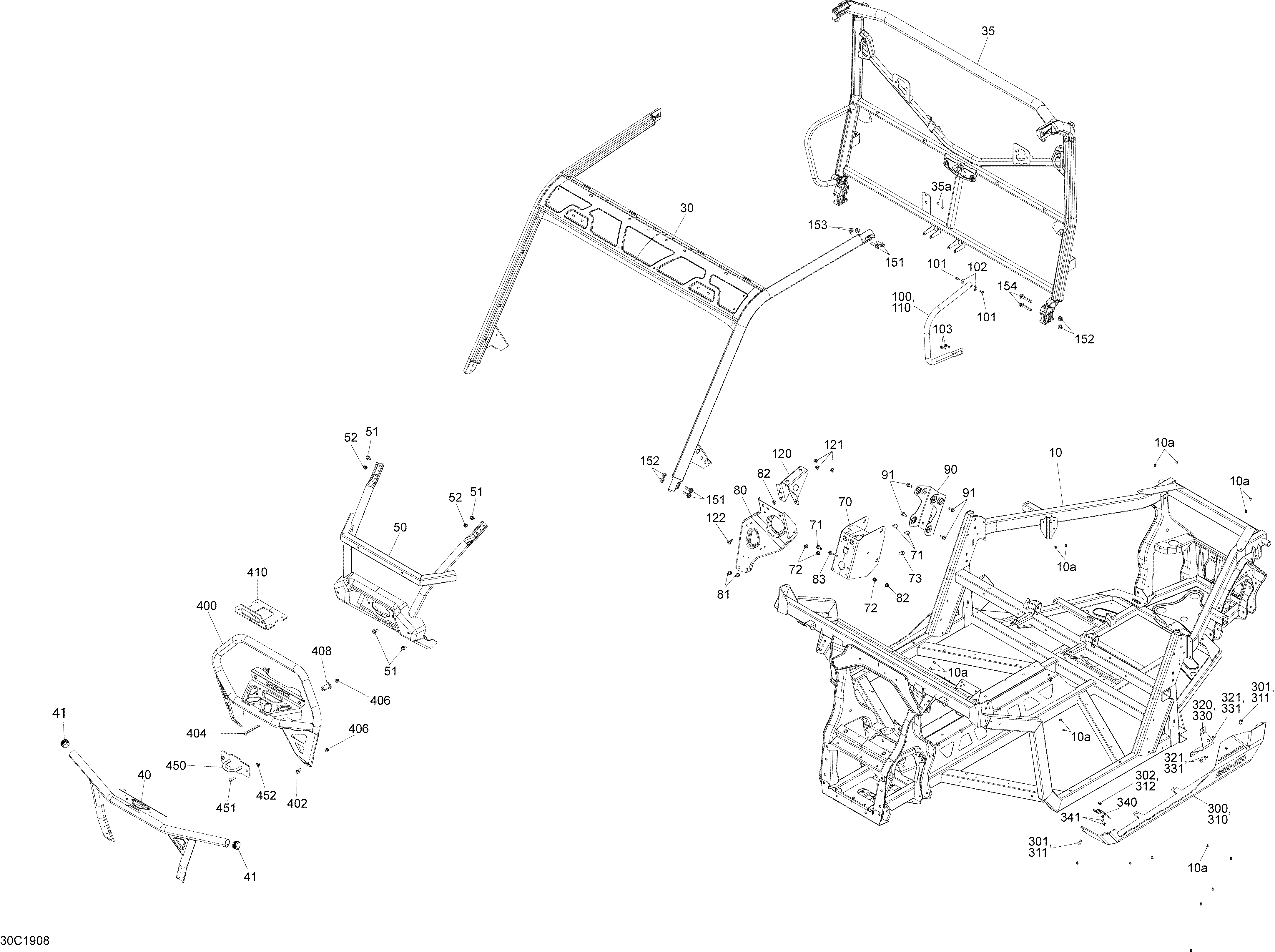

09- Frame - HD10 - International для BRP 002 - Traxter HD10 - International - 2019
-
№АртикулНазвание
-
10715005592 Frame KitFrame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30715005554 Front Cage Kit. Package XTFront Cage Kit. Package XT
-
30715005558 Yellow, Front Cage Kit. Package XMRYellow, Front Cage Kit. Package XMR
-
35715003569 Black, Rear Cage Kit. Black Hood. Includes 35 to 35aBlack, Rear Cage Kit. Black Hood. Includes 35 to 35a
-
35715005226 Yellow, Rear Cage Kit. Yellow HoodYellow, Rear Cage Kit. Yellow Hood
-
35a390402200 Pop Rivet 3/16''. Black HoodPop Rivet 3/16''. Black Hood
-
40705206536 XT Front Bumper. Packages CAB & XTXT Front Bumper. Packages CAB & XT
-
41705202455 Cap. Packages CAB & XTCap. Packages CAB & XT
-
50705203999 Front BumperFront Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705206316 PlatePlate
-
71207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
73207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
82233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
83207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100705206478 Sunburst Yellow, LH Side Protector . Yellow HoodSunburst Yellow, LH Side Protector . Yellow Hood
-
101250000789 Torx Truss M6X14Torx Truss M6X14
-
102705202223 Offset WasherOffset Washer
-
103207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
110705204592 RH Protector Tube. Black HoodRH Protector Tube. Black Hood
-
110705206477 Sunburst Yellow, RH Side Protector. Yellow HoodSunburst Yellow, RH Side Protector. Yellow Hood
-
120705205171 Shifting Module SupportShifting Module Support
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
300705206338 Sunburst Yellow, LH Rock Slider Welded. Package XMR - Sunburst YellowSunburst Yellow, LH Rock Slider Welded. Package XMR - Sunburst Yellow
-
300705206482 Black, LH Rock Slider Welded. Package XMR - CamoBlack, LH Rock Slider Welded. Package XMR - Camo
-
301250000746 Torx Truss Screw M8 X 16. Package XMRTorx Truss Screw M8 X 16. Package XMR
-
302233181414 Hex. Flanged Nut M8. Package XMRHex. Flanged Nut M8. Package XMR
-
305293150108 Pop Rivet 3/16”. Package XMRPop Rivet 3/16”. Package XMR
-
310705206339 Sunburst Yellow, RH Rock Slider. Package XMR - Sunburst YellowSunburst Yellow, RH Rock Slider. Package XMR - Sunburst Yellow
-
310705206481 Black, RH Rock Slider. Package XMR - CamoBlack, RH Rock Slider. Package XMR - Camo
-
311250000746 Torx Truss Screw M8 X 16. Package XMRTorx Truss Screw M8 X 16. Package XMR
-
312233181414 Hex. Flanged Nut M8. Package XMRHex. Flanged Nut M8. Package XMR
-
315293150108 Pop Rivet 3/16”. Package XMRPop Rivet 3/16”. Package XMR
-
320705206342 LH Rock Slider Support. Package XMRLH Rock Slider Support. Package XMR
-
321293150104 Pop Rivet 3/16''. Package XMRPop Rivet 3/16''. Package XMR
-
330705206343 RH Rock Slider Support. Package XMRRH Rock Slider Support. Package XMR
-
331293150104 Pop Rivet 3/16''. Package XMRPop Rivet 3/16''. Package XMR
-
340705206382 Rock Slider Front Support. Package XMRRock Slider Front Support. Package XMR
-
341293150104 Pop Rivet 3/16''. Package XMRPop Rivet 3/16''. Package XMR
-
400705206368 Painted Bumper. Package XMR - Sunburst YellowPainted Bumper. Package XMR - Sunburst Yellow
-
400715004405 XMR Front Bumper . Package XMR - CamoXMR Front Bumper . Package XMR - Camo
-
402207682044 Hex. Flanged Screw M8 X 20. Package XMRHex. Flanged Screw M8 X 20. Package XMR
-
404250000806 Torx Truss M8 X 90. Package XMRTorx Truss M8 X 90. Package XMR
-
406233281414 Hex. Flanged Elastic Nut M8. Package XMRHex. Flanged Elastic Nut M8. Package XMR
-
408705206398 Bumper Spacer. Package XMRBumper Spacer. Package XMR
-
410705206371 Winch Support. Package XMRWinch Support. Package XMR
-
450705206590 Painted Front Attachment. Package XMRPainted Front Attachment. Package XMR
-
451250000886 Torx Screw M8 X 30. Package XMRTorx Screw M8 X 30. Package XMR
-
452233281414 Hex. Flanged Elastic Nut M8. Package XMRHex. Flanged Elastic Nut M8. Package XMR
-
480250000855 Hex. Flanged Screw M10 X 35. Not ShownHex. Flanged Screw M10 X 35. Not Shown
-
490233201436 Flanged Elastic Nut M10. Not ShownFlanged Elastic Nut M10. Not Shown
-
500233201466 Flanged Elastic Nut M10. Not ShownFlanged Elastic Nut M10. Not Shown
-
510207606046 Hex. Flanged Screw M10 X 60. Not ShownHex. Flanged Screw M10 X 60. Not Shown
