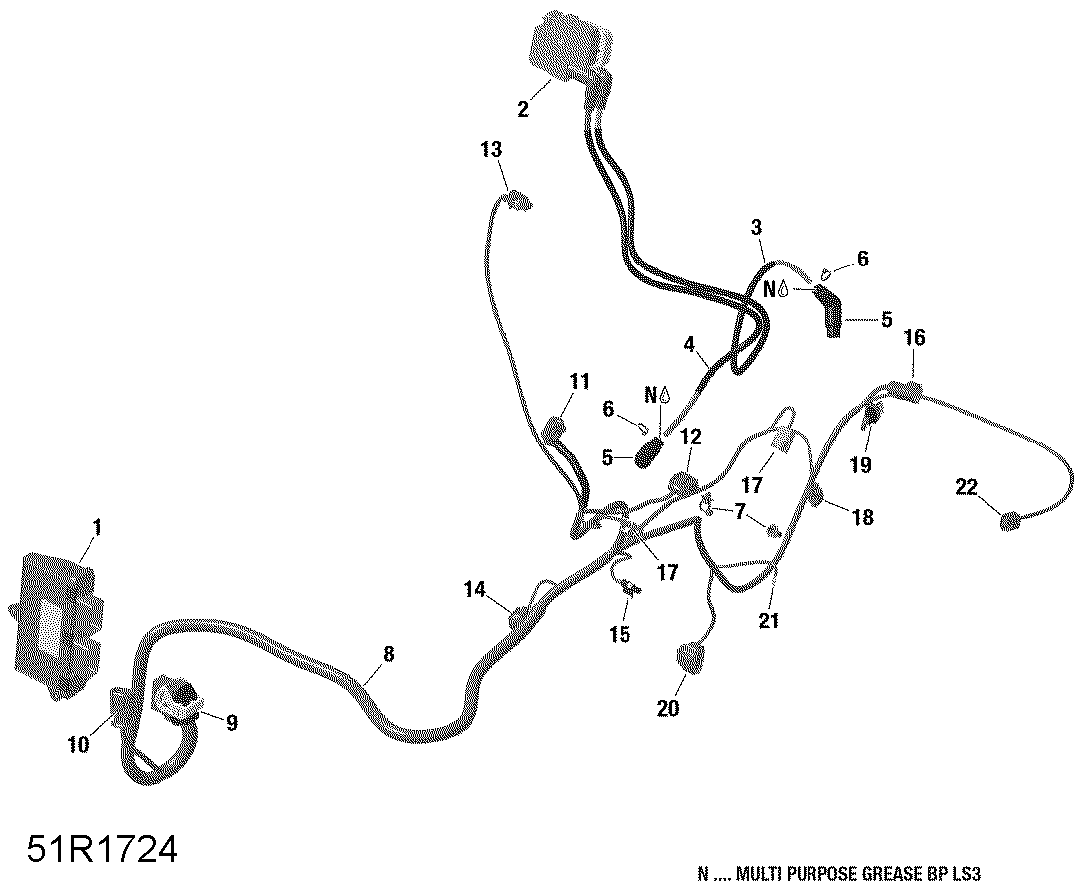

10- Engine Harness And Electronic Module - HD10 - XMR для BRP 002 - Traxter HD10 - International - 2019
-
№АртикулНазвание
-
1420464402 ECM, Engine Control ModuleECM, Engine Control Module
-
2>2a278001546 Ignition CoilIgnition Coil
-
2a710000568 HousingHousing
-
3420665333 Spark Plug Cable, 790 mm, RearSpark Plug Cable, 790 mm, Rear
-
4420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7420866714 Tie RapTie Rap
-
8>21420666579 Engine Wiring HarnessEngine Wiring Harness
-
10710001927 HousingHousing
-
11710001872 Housing, 6 PositionsHousing, 6 Positions
-
13278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
16278002378 Male HousingMale Housing
-
18278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
19278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
20710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
