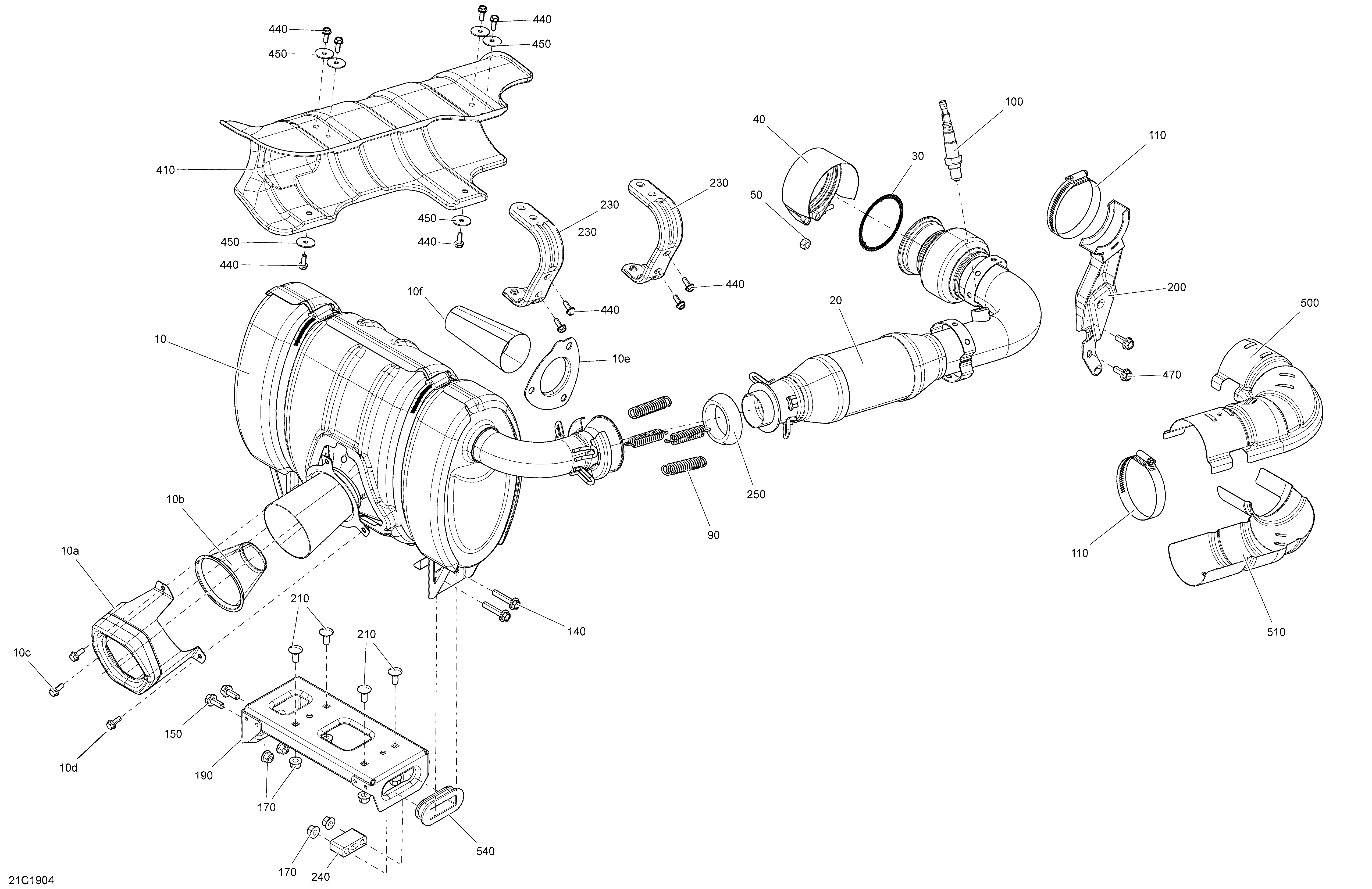

01- Exhaust для BRP 002 - Maverick Turbo - International - 2019
-
№АртикулНазвание
-
10707601731 Muffler. Except XMR. Includes 10 to 10cMuffler. Except XMR. Includes 10 to 10c
-
10707602501 Muffler. Package XMR. Includes 10 to 10dMuffler. Package XMR. Includes 10 to 10d
-
10a707602046 Heat ShieldHeat Shield
-
10b707602087 Spark Arrestor. Except XMRSpark Arrestor. Except XMR
-
10b707602511 Esthetic Spark Arrestor. Package XMREsthetic Spark Arrestor. Package XMR
-
10c207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
10d207682046 Hex. Flanged Screw M8 X 20. Package XMRHex. Flanged Screw M8 X 20. Package XMR
-
10e707602505 Gasket. Package XMRGasket. Package XMR
-
10f707602467 Spark Arrestor. Package XMRSpark Arrestor. Package XMR
-
20707602242 HeadpipeHeadpipe
-
30707601835 GasketGasket
-
40707602570 V ClampV Clamp
-
50707602143 NutNut
-
90707601834 SpringSpring
-
100707600872 Oxygen SensorOxygen Sensor
-
110293650255 Gear ClampGear Clamp
-
140207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
150207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160234082410 Flat Washer 8 mmFlat Washer 8 mm
-
170233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
190707601765 Muffler SupportMuffler Support
-
200707601842 Pipe SupportPipe Support
-
210207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
230707601896 C SupportC Support
-
240707601897 Muffler StopperMuffler Stopper
-
250707601908 GasketGasket
-
410707601768 Lateral Heat ShieldLateral Heat Shield
-
440210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
450503193995 WasherWasher
-
470207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
500707601795 Upper Heat ShieldUpper Heat Shield
-
510707601796 Lower Heat ShieldLower Heat Shield
-
540707601845 Rubber StopperRubber Stopper
