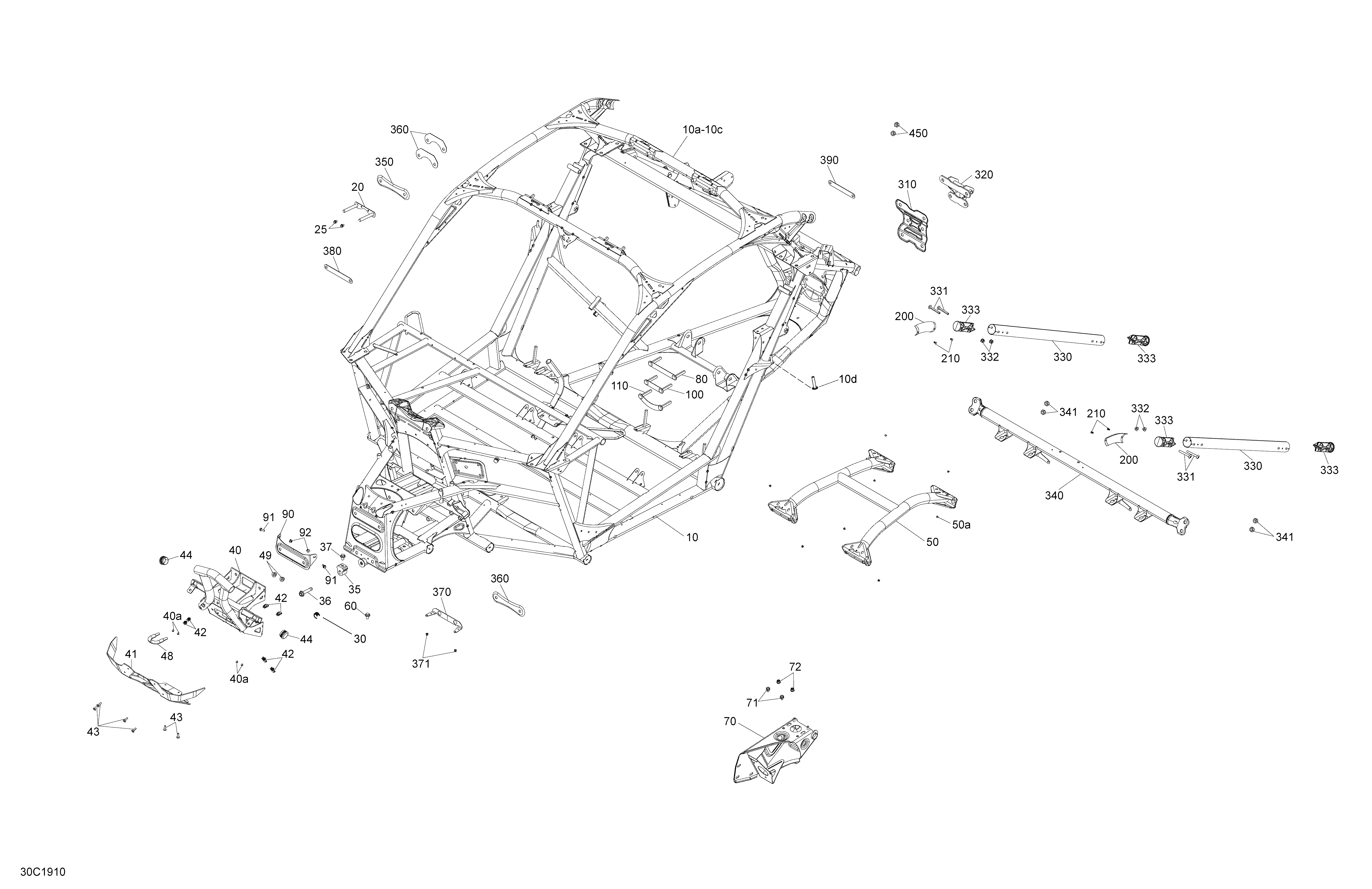

09- Frame - M-903TC для BRP 002 - Maverick Turbo - International - 2019
-
№АртикулНазвание
-
10>10c715005695 Black Frame Kit. Includes 10 to 10cBlack Frame Kit. Includes 10 to 10c
-
10a>10a3715005713 Front Black Cage Kit. Includes 10a to 10a3Front Black Cage Kit. Includes 10a to 10a3
-
10a1250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
10a2207523056 Hex. Flanged Screw M12 X 30, Scotch GripHex. Flanged Screw M12 X 30, Scotch Grip
-
10a3233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
10b233701400 Hexagonal NutHexagonal Nut
-
10c390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
10d250000913 Weld Pin 8mm X 40mmWeld Pin 8mm X 40mm
-
20705207424 E-Coat Front PlateE-Coat Front Plate
-
25207561044 Flanged Screw M6 X 10, Scotch GripFlanged Screw M6 X 10, Scotch Grip
-
30250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
35705206992 Bumper Link. Packages XMR & XRCBumper Link. Packages XMR & XRC
-
36250000987 Screw-Hex.Flange DIN.6921 M12X1.75. Packages XMR & XRCScrew-Hex.Flange DIN.6921 M12X1.75. Packages XMR & XRC
-
37250000060 Flanged Screw M10 X 16, Scotch Grip. Packages XMR & XRCFlanged Screw M10 X 16, Scotch Grip. Packages XMR & XRC
-
40705205746 Black, Front Bumper. Package STD. Includes 40 to 40aBlack, Front Bumper. Package STD. Includes 40 to 40a
-
40705206869 Sunburst Yellow, Front Bumper. Package XMR. Includes 40 to 40aSunburst Yellow, Front Bumper. Package XMR. Includes 40 to 40a
-
40705206868 Blue, Front Bumper. Package XRC. Includes 40 to 40aBlue, Front Bumper. Package XRC. Includes 40 to 40a
-
40a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
41705206871 Front Master Plate. Packages XMR & XRCFront Master Plate. Packages XMR & XRC
-
42250000957 Extruded Panel Nut M6. Packages XMR & XRCExtruded Panel Nut M6. Packages XMR & XRC
-
43250000722 Torx Screw M6 X 20. Packages XMR & XRCTorx Screw M6 X 20. Packages XMR & XRC
-
44705202455 Cap. Packages XMR & XRCCap. Packages XMR & XRC
-
48705206983 U-Clamp. Packages XMR & XRCU-Clamp. Packages XMR & XRC
-
49233201436 Flanged Elastic Nut M10. Packages XMR & XRCFlanged Elastic Nut M10. Packages XMR & XRC
-
50705206774 Added Cage. Includes 50 to 50aAdded Cage. Includes 50 to 50a
-
50a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60233221466 Elastic Flange Nut M12. Packages XMR & XRCElastic Flange Nut M12. Packages XMR & XRC
-
70705206924 DPS SupportDPS Support
-
71207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
72233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
80705206852 Rear Upper PlateRear Upper Plate
-
90705206877 Stifner PlateStifner Plate
-
91207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
92233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
100705206853 Front PlateFront Plate
-
110705206854 Rear PlateRear Plate
-
200705205926 Black, LH Link PlateBlack, LH Link Plate
-
210293150102 Rivet 3/16''Rivet 3/16''
-
310705205750 Rear PlateRear Plate
-
320715004450 Black, Rear Attachement Hook. Packages XMR & XRCBlack, Rear Attachement Hook. Packages XMR & XRC
-
330705205751 Black, Rear MountBlack, Rear Mount
-
331250000901 Torx Truss M8 X 65Torx Truss M8 X 65
-
332250100025 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
333705205634 SleeveSleeve
-
340705205268 Belt BarBelt Bar
-
341232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
350705207425 Upper Arm LinkUpper Arm Link
-
360705205295 Lower Arm LinkLower Arm Link
-
365705207438 Front Plate. Package STDFront Plate. Package STD
-
370706203122 SupportSupport
-
371390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
380705206069 Front Upper PlateFront Upper Plate
-
390705206511 Rear Upper Plate. Package STDRear Upper Plate. Package STD
-
450233221466 Elastic Flange Nut M12Elastic Flange Nut M12
