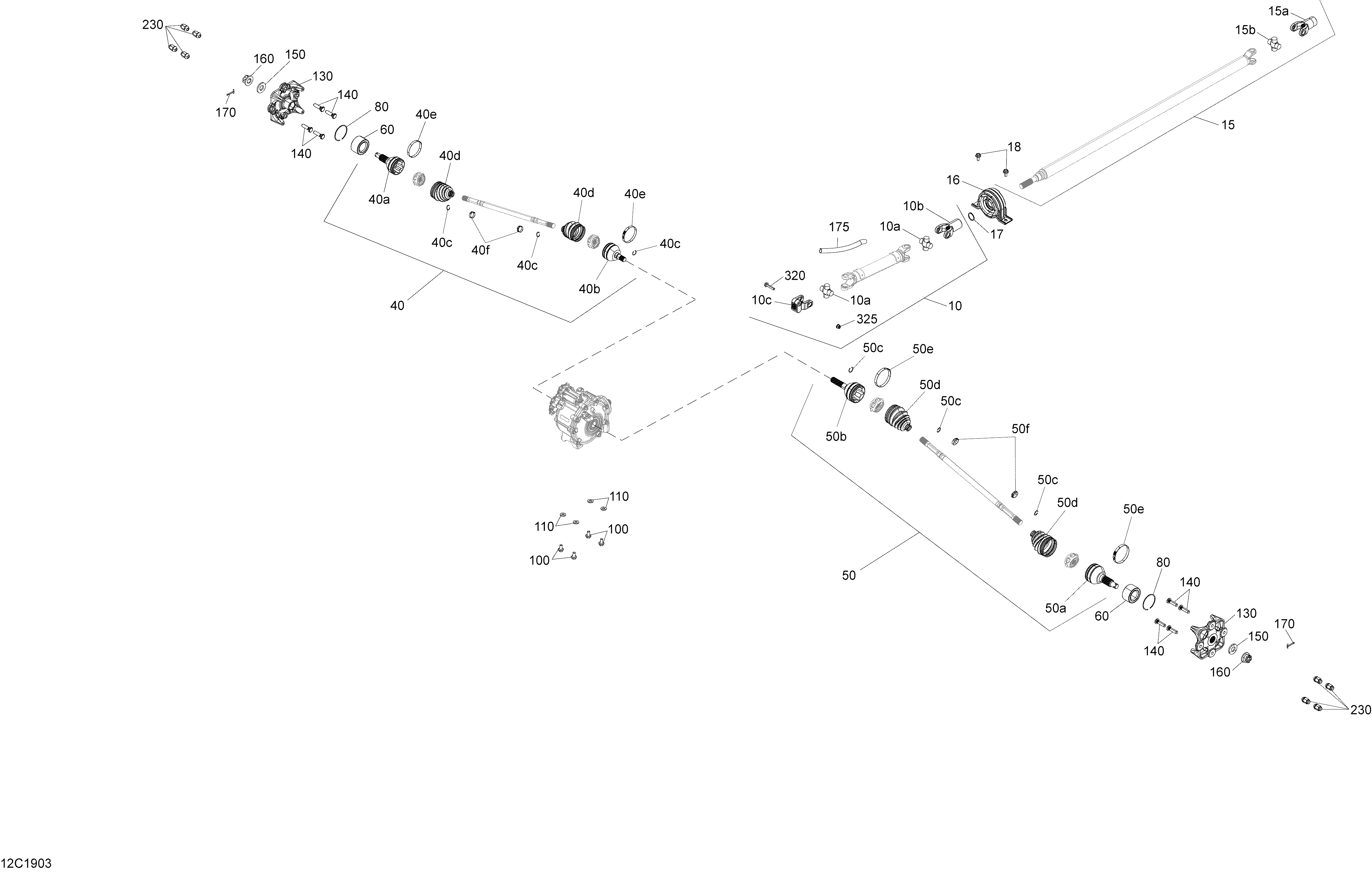

07- Front Drive - Main Parts - Package STD для BRP 002 - Maverick Turbo - International - 2019
-
№АртикулНазвание
-
10705402187 Drive Axle Ass'y. Includes 10 to 10cDrive Axle Ass'y. Includes 10 to 10c
-
10a715900402 J-Joint Cross KitJ-Joint Cross Kit
-
10b715900524 Fixed Yoke JointFixed Yoke Joint
-
10c715900401 YokeYoke
-
15705402026 Drive Shaft Ass'y. Includes 15 to 15bDrive Shaft Ass'y. Includes 15 to 15b
-
15a715900401 YokeYoke
-
15b715900402 J-Joint Cross KitJ-Joint Cross Kit
-
16705401938 BearingBearing
-
17293370098 Snap RingSnap Ring
-
18207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
40705402098 Half Shaft RH. Includes 40 to 40fHalf Shaft RH. Includes 40 to 40f
-
40a715900452 CV JointCV Joint
-
40b715900454 RH Plunging JointRH Plunging Joint
-
40c705401349 Circlip JointCirclip Joint
-
40d705401354 Boot Kit, Wheel Side. Includes 40d to 40fBoot Kit, Wheel Side. Includes 40d to 40f
-
40e715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
40f715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50705402097 Half Shaft LH. Includes 50 to 50fHalf Shaft LH. Includes 50 to 50f
-
50a715900452 CV JointCV Joint
-
50b715900453 LH Plunging JointLH Plunging Joint
-
50c705401349 Circlip JointCirclip Joint
-
50d705401354 Boot Kit, Wheel Side. Includes 50d to 50fBoot Kit, Wheel Side. Includes 50d to 50f
-
50e715900260 Oetiker Clamp, LargeOetiker Clamp, Large
-
50f715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
60293350129 Ball BearingBall Bearing
-
80293370102 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
110234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
130705502122 Wheel HubWheel Hub
-
140250300625 Wheel Stud M12X1.5Wheel Stud M12X1.5
-
150250200170 Conical Spring Washer M20Conical Spring Washer M20
-
160250100193 Castle Nut M20Castle Nut M20
-
170250400084 Cotter PinCotter Pin
-
185518321570 Open ClampOpen Clamp
-
186293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
230250100196 Black Wheel Nut M12 X 1.50Black Wheel Nut M12 X 1.50
-
320250001050 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
325233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
