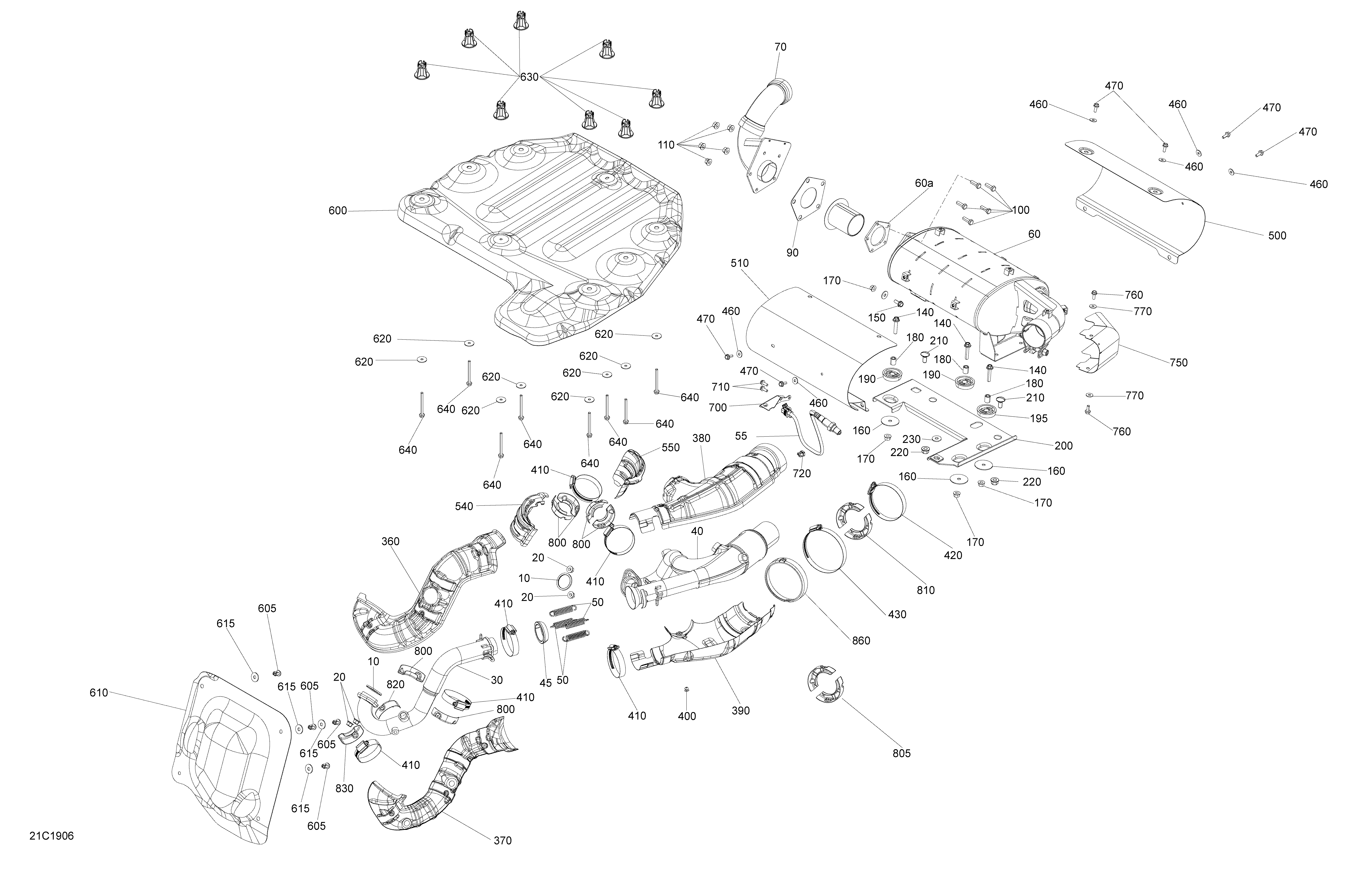

01- Exhaust для BRP 004 - Maverick Sport MAX 1000R - DPS - International - Non European Communities - 2019
-
№АртикулНазвание
-
10707600317 GasketGasket
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
30707602039 Front Exhaust PipeFront Exhaust Pipe
-
40707602040 Rear Exhaust PipeRear Exhaust Pipe
-
45707601033 Exhaust GasketExhaust Gasket
-
50707601834 SpringSpring
-
55707600872 Oxygen SensorOxygen Sensor
-
60707602048 MufflerMuffler
-
70707602097 Tail PipeTail Pipe
-
80707602133 Spark ArresterSpark Arrester
-
90707602134 GasketGasket
-
100207182546 Screw-Hex.Cap DIN.933Screw-Hex.Cap DIN.933
-
110233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
140207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160707602306 Flat Washer 8 mmFlat Washer 8 mm
-
170233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
180707602166 SpacerSpacer
-
190707602167 RubbermountRubbermount
-
195707602305 RubbermountRubbermount
-
200707602168 SupportSupport
-
210207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
220233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
230234082410 Flat Washer 8 mmFlat Washer 8 mm
-
260234082410 Flat Washer 8 mmFlat Washer 8 mm
-
270207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
360707601923 Heat Shield, FrontHeat Shield, Front
-
370707602403 Front Heat ShieldFront Heat Shield
-
380707601925 Heat ShieldHeat Shield
-
390707601926 Heat ShieldHeat Shield
-
400293150071 Pop Rivet 1/8Pop Rivet 1/8
-
410293650258 Tridon Gear ClampTridon Gear Clamp
-
420293650250 Tridon Gear ClampTridon Gear Clamp
-
430293650261 Tridon Gear ClampTridon Gear Clamp
-
460234062410 Flat Washer 6 mmFlat Washer 6 mm
-
470250000906 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
500707602417 Heat ShieldHeat Shield
-
540707601927 Heat Shield, RearHeat Shield, Rear
-
550707601928 Heat Shield, RearHeat Shield, Rear
-
600707602042 Heat ShieldHeat Shield
-
605293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
610707602043 Heat ShieldHeat Shield
-
615234082410 Flat Washer 8 mmFlat Washer 8 mm
-
620224060251 WasherWasher
-
630706002976 Heatshield SpacerHeatshield Spacer
-
640207566544 Hex. Flanged Screw M6x65Hex. Flanged Screw M6x65
-
720710005529 Dart MountDart Mount
-
750707602532 Heat ShieldHeat Shield
-
760250000906 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
770234062410 Flat Washer 6 mmFlat Washer 6 mm
-
800707602026 Exhaust Pipe SpacerExhaust Pipe Spacer
-
805707602138 Exhaust Pipe SpacerExhaust Pipe Spacer
-
810707602140 Exhaust Pipe SpacerExhaust Pipe Spacer
-
820707601948 Exhaust Pipe SpacerExhaust Pipe Spacer
-
830707602016 Exhaust Pipe SpacerExhaust Pipe Spacer
-
860707602013 Exhaust Pipe SpacerExhaust Pipe Spacer
