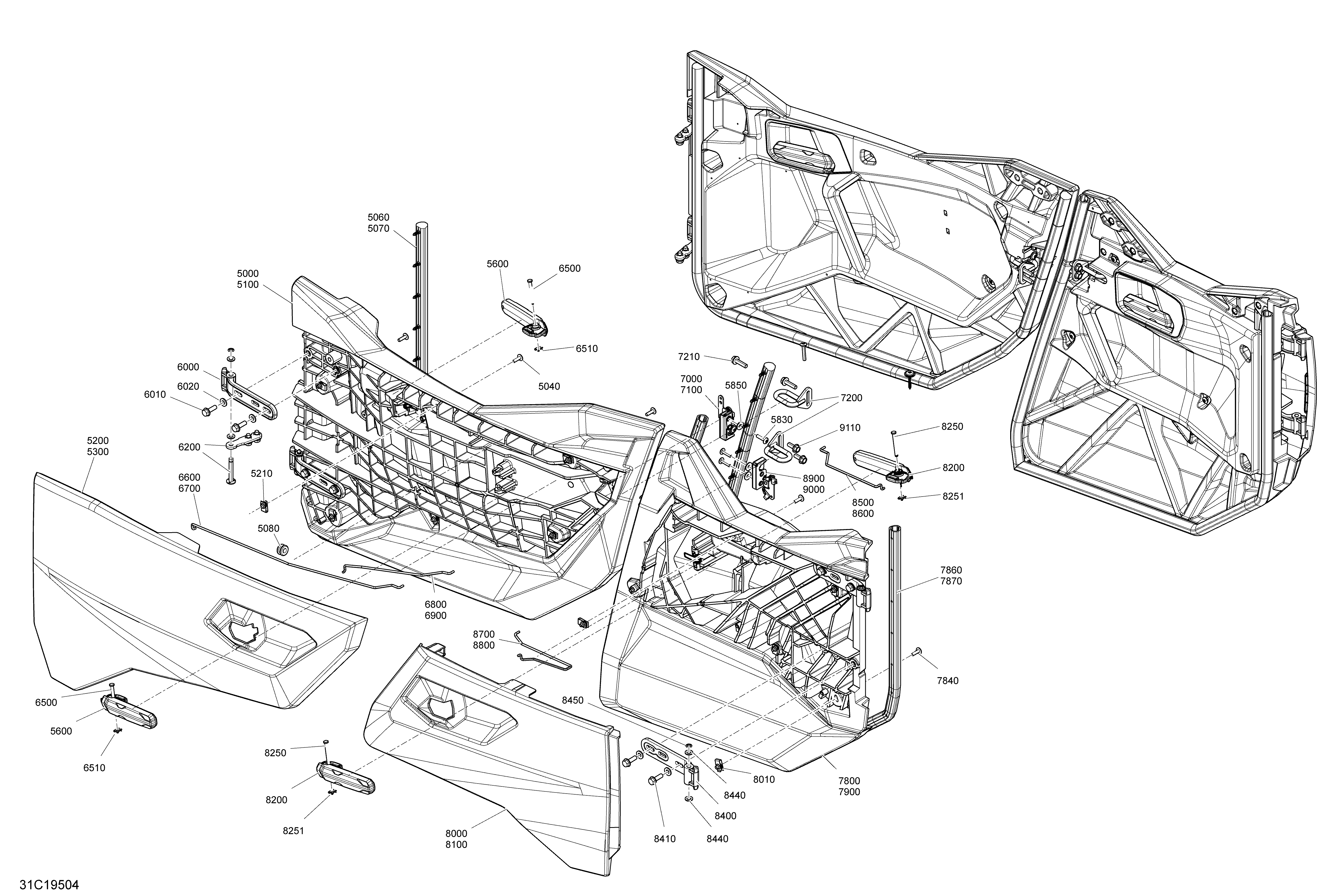

09- Body - Door Parts - Red для BRP 004 - Maverick Sport MAX 1000R - DPS - International - Non European Communities - 2019
-
№АртикулНазвание
-
5000705012982 LH Front Door PanelLH Front Door Panel
-
5040250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5060293250501 LH Front Door Gasket Ass'yLH Front Door Gasket Ass'y
-
5070293250502 RH Front Door Gasket Ass'yRH Front Door Gasket Ass'y
-
5080293720104 GrommetGrommet
-
5100705012983 RH Front Door PanelRH Front Door Panel
-
5200705013440 Can-Am Red, LH Door Trim PanelCan-Am Red, LH Door Trim Panel
-
5210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
5300705013441 Can-Am Red, RH Door Trim PanelCan-Am Red, RH Door Trim Panel
-
5600705012986 Opening HandleOpening Handle
-
5830250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
5850234062670 Flat Washer, StainlessFlat Washer, Stainless
-
6000705013228 HingeHinge
-
6010250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
6020503192494 WasherWasher
-
6200705012506 Upper Hinge AjustementUpper Hinge Ajustement
-
6500705207440 Handle AxleHandle Axle
-
6510705601721 External Retaining RingExternal Retaining Ring
-
6600705207146 LH Upper Locking RodLH Upper Locking Rod
-
6700705207147 RH Upper Locking RodRH Upper Locking Rod
-
6800705207150 LH Lower Locking RodLH Lower Locking Rod
-
6900705207151 RH Lower Locking RodRH Lower Locking Rod
-
7000705013095 LH LatchLH Latch
-
7100705013096 RH LatchRH Latch
-
7200705207246 Stricker SupportStricker Support
-
7210207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
7800705013063 LH Rear Door PanelLH Rear Door Panel
-
7840250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
7860293250505 LH Rear Door Gasket Ass'yLH Rear Door Gasket Ass'y
-
7870293250506 RH Rear Door Gasket Ass'yRH Rear Door Gasket Ass'y
-
7900705013064 RH Rear Door PanelRH Rear Door Panel
-
8000705013601 Can-Am Red, LH Rear Door Trim PanelCan-Am Red, LH Rear Door Trim Panel
-
8010250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
8100705013602 Can-Am Red, RH Rear Door Trim PanelCan-Am Red, RH Rear Door Trim Panel
-
8200705012986 Opening HandleOpening Handle
-
8250705207440 Handle AxleHandle Axle
-
8251705601721 External Retaining RingExternal Retaining Ring
-
8400705013228 HingeHinge
-
8410250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
8440234081100 Flat Washer 8 mm, NylonFlat Washer 8 mm, Nylon
-
8450705601030 CirclipCirclip
-
8500705207152 LH Rear Door Upper Locking RodLH Rear Door Upper Locking Rod
-
8600705207153 RH Rear Door Upper Locking RodRH Rear Door Upper Locking Rod
-
8700705207154 LH Rear Door Lower Locking RodLH Rear Door Lower Locking Rod
-
8800705207155 RH Rear Door Lower Locking RodRH Rear Door Lower Locking Rod
-
8900705013758 LH LatchLH Latch
-
9000705013759 RH LatchRH Latch
-
9110207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
