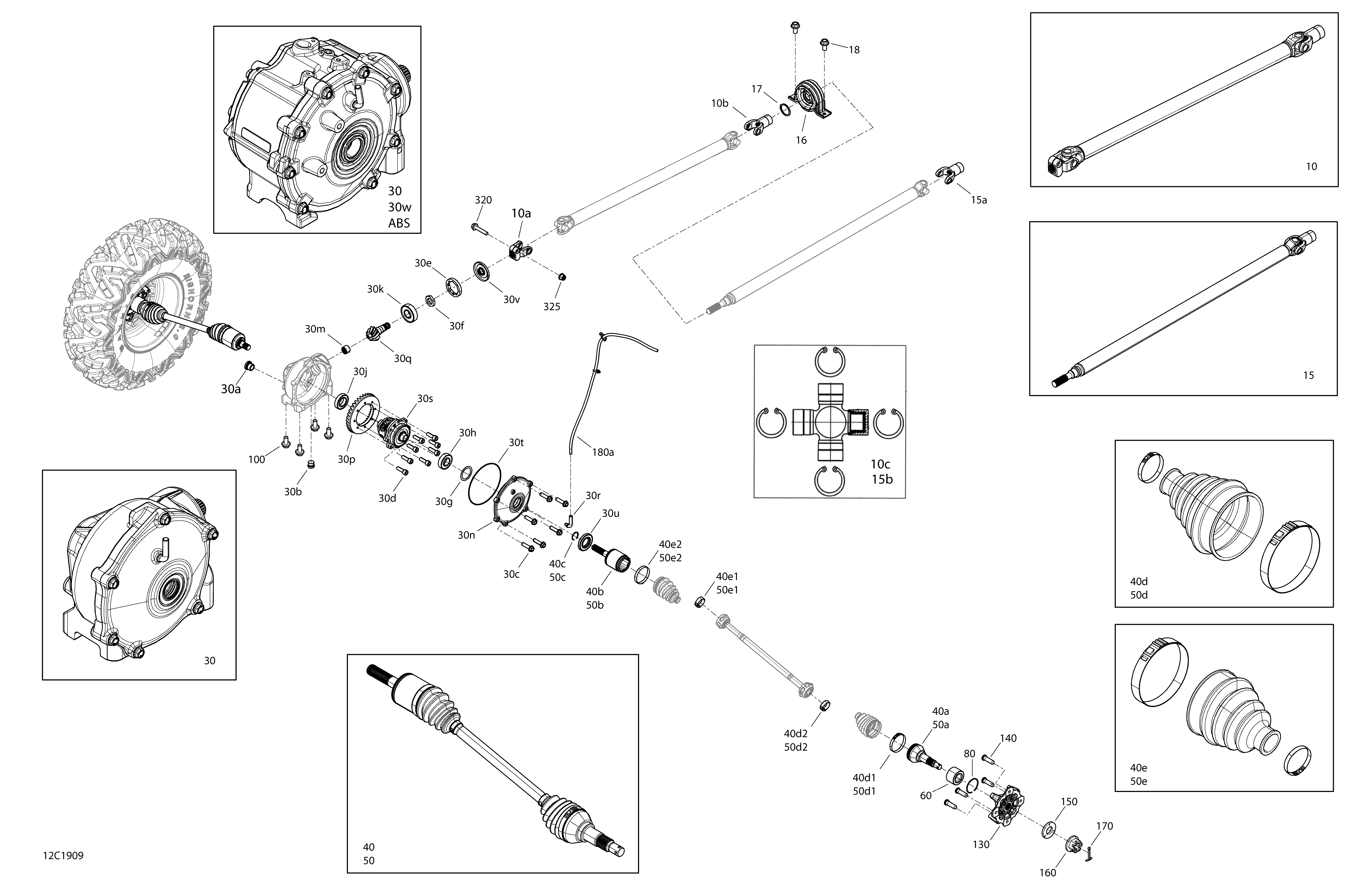

07- Front Drive для BRP 004 - Maverick Sport MAX 1000R - DPS - International - Non European Communities - 2019
-
№АртикулНазвание
-
10705402444 Drive Shaft Ass'y. Includes 10 to 10cDrive Shaft Ass'y. Includes 10 to 10c
-
10a715900400 Fixed YokeFixed Yoke
-
10b715900401 YokeYoke
-
10c715900402 J-Joint Cross KitJ-Joint Cross Kit
-
15705402245 Prop Shaft Ass'y. Includes 15 to 15bProp Shaft Ass'y. Includes 15 to 15b
-
15a715900401 YokeYoke
-
15b715900402 J-Joint Cross KitJ-Joint Cross Kit
-
16705401938 BearingBearing
-
17293370098 Snap RingSnap Ring
-
18207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
30705402372 Front Differential Ass.. Includes 30 to 30vFront Differential Ass.. Includes 30 to 30v
-
30a705501889 Fill Level PlugFill Level Plug
-
30b705501885 Drain PlugDrain Plug
-
30c705501886 ScrewScrew
-
30d705402375 ScrewScrew
-
30e705401819 NutNut
-
30f705401820 NutNut
-
30g705401604 ShimShim
-
30h705401934 Ball BearingBall Bearing
-
30j705401606 Ball BearingBall Bearing
-
30k705401821 Ball BearingBall Bearing
-
30m705401607 Needle BearingNeedle Bearing
-
30n705401667 Front CoverFront Cover
-
30p705401822 36Th Gear36Th Gear
-
30q705401933 Pinion 10 th.Pinion 10 th.
-
30r705401935 Vent ValveVent Valve
-
30s705402376 DifferentialDifferential
-
30t705501881 Oil SealOil Seal
-
30u705401836 Oil SealOil Seal
-
30v705401827 Oil SealOil Seal
-
50705402030 RH Front Half Shaft. Includes 40 to 40e2RH Front Half Shaft. Includes 40 to 40e2
-
50a715900440 CV JointCV Joint
-
50b715900441 Plunging Joint RHPlunging Joint RH
-
50c705401349 Circlip JointCirclip Joint
-
50d705401345 Boot Kit, Wheel Side. Includes 40d to 40d2Boot Kit, Wheel Side. Includes 40d to 40d2
-
50d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50e705401355 Boot Kit, Differential Side. Includes 40e to 40e2Boot Kit, Differential Side. Includes 40e to 40e2
-
50e1715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50e2715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
50705402031 LH Front Half Shaft. Includes 50 to 50e2LH Front Half Shaft. Includes 50 to 50e2
-
50a715900440 CV JointCV Joint
-
50b715900442 Plunging Joint LHPlunging Joint LH
-
50c705401349 Circlip JointCirclip Joint
-
50d705401345 Boot Kit, Wheel Side. Includes 50d to 50d2Boot Kit, Wheel Side. Includes 50d to 50d2
-
50d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
50d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
50e705401355 Boot Kit, Differential Side. Includes 50e to 50e2Boot Kit, Differential Side. Includes 50e to 50e2
-
50e1715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
50e2715900262 Oetiker Clamp, LargeOetiker Clamp, Large
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
100207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
130705502338 Wheel HubWheel Hub
-
140250300055 Wheel Stud M10 X 1.25Wheel Stud M10 X 1.25
-
150250200170 Conical Spring Washer M20Conical Spring Washer M20
-
160250100193 Castle Nut M20Castle Nut M20
-
170250400084 Cotter PinCotter Pin
-
180a293830193 Polyurethane HosePolyurethane Hose
-
320250001050 Hex. Flanged Screw M8 X 42Hex. Flanged Screw M8 X 42
-
325233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
