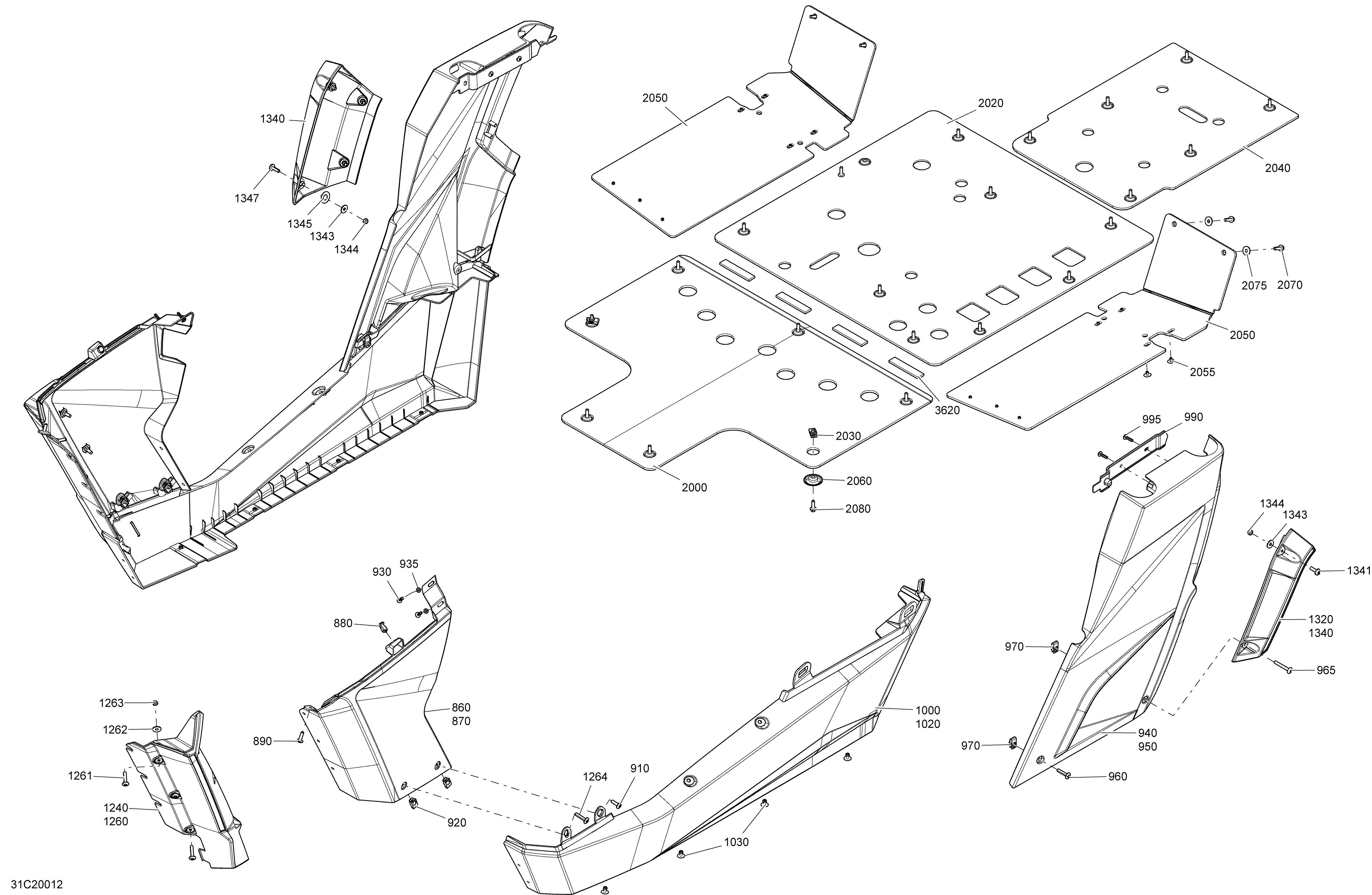

09- Body - Mid Section - Carbon Black для BRP 001 - Commander 800R EFI - North America - 2020
-
№АртикулНазвание
-
860705013671 Carbon Black, LH Front Body PanelCarbon Black, LH Front Body Panel
-
870705013672 Carbon Black, RH Front Body PanelCarbon Black, RH Front Body Panel
-
880293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
890250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
910250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
920250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
930250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
935234051410 Flat Washer M5Flat Washer M5
-
940705013723 Carbon Black, LH Rear Boy PanelCarbon Black, LH Rear Boy Panel
-
950705013724 Carbon Black, RH Rear Body PanelCarbon Black, RH Rear Body Panel
-
960250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
965250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
970250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
990705007916 Support Skid PlateSupport Skid Plate
-
995250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1000705006993 LH Middle Side PannelLH Middle Side Pannel
-
1020705006994 RH Middle Side PannelRH Middle Side Pannel
-
1030293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1240705008668 Black, LH Lower MudguardBlack, LH Lower Mudguard
-
1260705008669 Black, RH Lower MudguardBlack, RH Lower Mudguard
-
1261250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1262234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1263232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
1264250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1320705008670 Black, LH Rear Lower MudguardBlack, LH Rear Lower Mudguard
-
1340705008672 RH Rear Lower Black MudguardRH Rear Lower Black Mudguard
-
1341250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1343234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1344232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
1345250200086 Flat WasherFlat Washer
-
1347250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
2000705007055 Middle Protector PlateMiddle Protector Plate
-
2020705007056 Rear Protector PlateRear Protector Plate
-
2030250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2040705007227 Rear Protector PlateRear Protector Plate
-
2050705007038 RH Lateral Skid PlateRH Lateral Skid Plate
-
2055293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
2060705007171 CupCup
-
2070210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
2075250200097 Flat WasherFlat Washer
-
2080210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
3620291001932 PadPad
