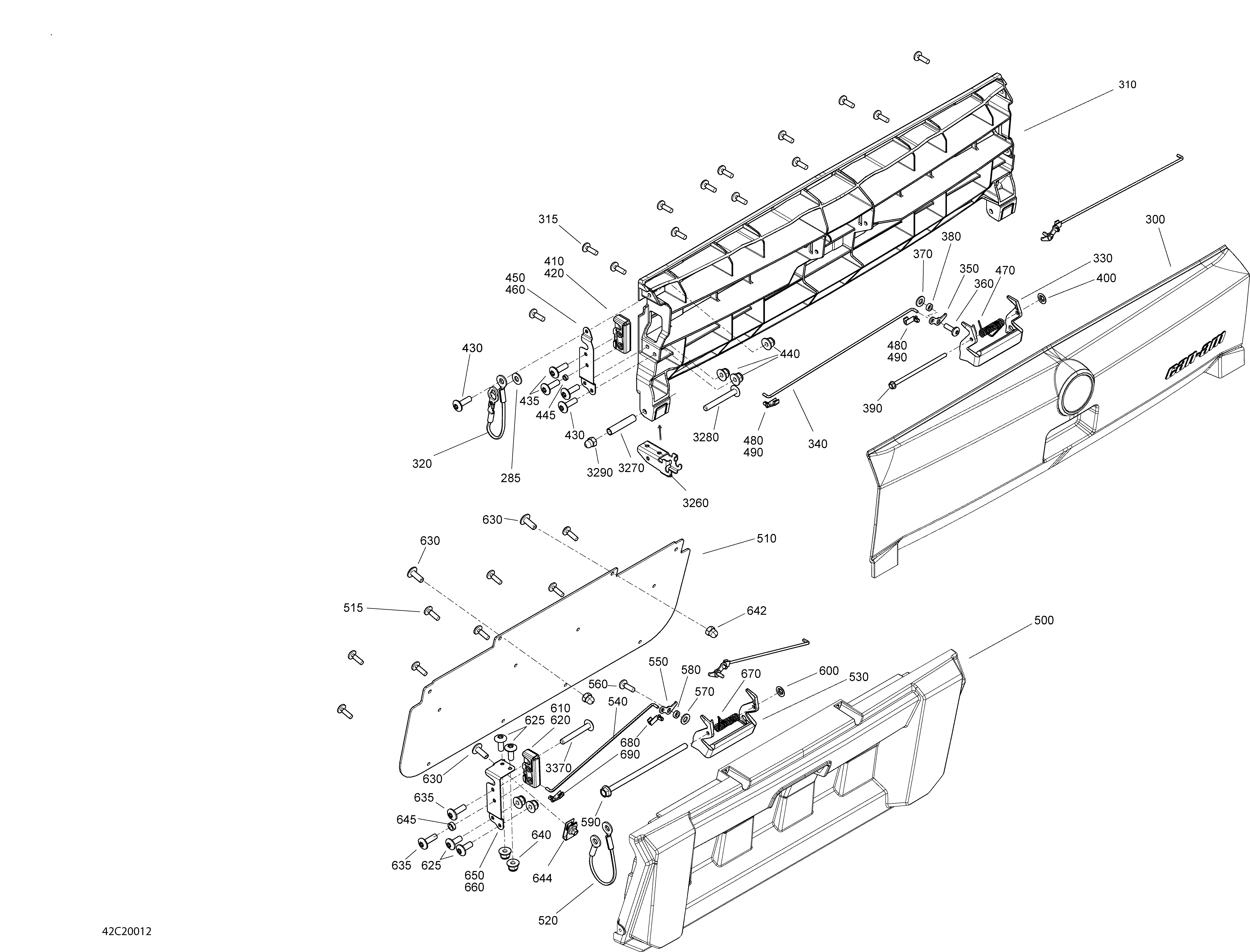

09- Rear Cargo Box - Door для BRP 001 - Commander 800R EFI - North America - 2020
-
№АртикулНазвание
-
285224061121 Flat WasherFlat Washer
-
300708301258 White, Outside Top Panel. Package STDWhite, Outside Top Panel. Package STD
-
300708302339 Squadron Green, Outside Top Panel. Package DPSSquadron Green, Outside Top Panel. Package DPS
-
300708302766 Boreal Green, Top Panel. Boreal GreenBoreal Green, Top Panel. Boreal Green
-
300708303143 Carbon Black, Tailgate. Carbon BlackCarbon Black, Tailgate. Carbon Black
-
310708300053 Inside Top PannelInside Top Pannel
-
315250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
320708300763 Upper Retainer CableUpper Retainer Cable
-
330708300398 HandleHandle
-
340708300160 Top RodTop Rod
-
350708300184 ActivatorActivator
-
360250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
370234061410 Flat Washer 6 mmFlat Washer 6 mm
-
380708300365 BushingBushing
-
390230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
400732610072 Push NutPush Nut
-
410708300162 LH LatchLH Latch
-
420708300201 RH LatchRH Latch
-
430250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
435250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
440233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
445708300737 BushingBushing
-
450708300359 LH Upper SupportLH Upper Support
-
460708300360 RH Upper SupportRH Upper Support
-
470708300219 SpringSpring
-
480708300182 LH Tie Rod ClipLH Tie Rod Clip
-
490708300202 RH Tie Rod ClipRH Tie Rod Clip
-
500715002365 Outside Bottom Pannel Ass'yOutside Bottom Pannel Ass'y
-
510708300073 Inside Bottom PannelInside Bottom Pannel
-
515250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
520708300762 Lower Retainer CableLower Retainer Cable
-
530708300398 HandleHandle
-
540708300164 Lower Bottom RodLower Bottom Rod
-
550708300184 ActivatorActivator
-
560250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
570234061410 Flat Washer 6 mmFlat Washer 6 mm
-
580708300365 BushingBushing
-
590230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
600732610072 Push NutPush Nut
-
610708300162 LH LatchLH Latch
-
620708300201 RH LatchRH Latch
-
625250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
630250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
635250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
640233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
642232361493 Domed Nut M6Domed Nut M6
-
644250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
645708300737 BushingBushing
-
650708300361 LH Lower SupportLH Lower Support
-
660708300362 RH Lower SupportRH Lower Support
-
670708300219 SpringSpring
-
680708300182 LH Tie Rod ClipLH Tie Rod Clip
-
690708300202 RH Tie Rod ClipRH Tie Rod Clip
-
3260708300345 Upper Pivot SupportUpper Pivot Support
-
3270708300735 BushingBushing
-
3280250000749 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
3290232361493 Domed Nut M6Domed Nut M6
-
3370250000748 Torx Screw M6 X 45Torx Screw M6 X 45
