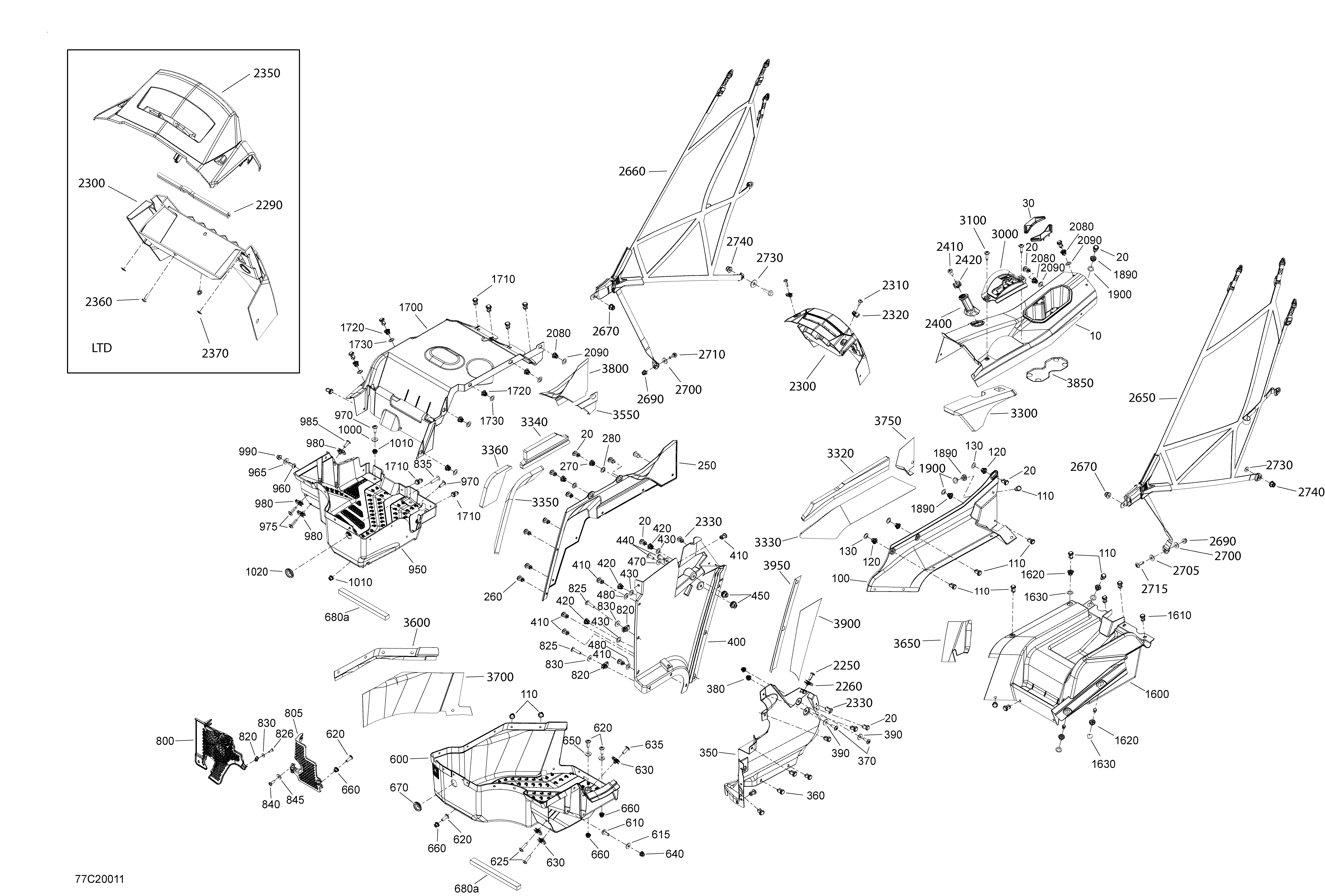

09- Cab Interior - Lower part для BRP 001 - Commander 800R EFI - North America - 2020
-
№АртикулНазвание
-
10715005501 Console Ass'y. Except Package LTDConsole Ass'y. Except Package LTD
-
10715005502 Console Ass'y. Package LTDConsole Ass'y. Package LTD
-
20293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
30707900036 Cup RetainerCup Retainer
-
100707900001 LH Side ConsoleLH Side Console
-
110293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
120707900133 InsertInsert
-
130503189273 WasherWasher
-
250707900002 RH Side ConsoleRH Side Console
-
260293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
270707900133 InsertInsert
-
280503189273 WasherWasher
-
350707900193 Front Side Dash PanelFront Side Dash Panel
-
360293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
390234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900021 RH Fixe Side Console. Except Package LTDRH Fixe Side Console. Except Package LTD
-
400707900098 RH Fixe Side Console. Package LTDRH Fixe Side Console. Package LTD
-
410293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
420707900133 InsertInsert
-
430503189273 WasherWasher
-
440250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
450250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
470234062670 Flat Washer, StainlessFlat Washer, Stainless
-
480506151252 WasherWasher
-
600707900022 LH Lower FloorLH Lower Floor
-
610250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
615234062670 Flat Washer, StainlessFlat Washer, Stainless
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
625250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
630250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
635250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
640233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
650234062670 Flat Washer, StainlessFlat Washer, Stainless
-
660250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
670293250242 Rubber CoverRubber Cover
-
680a293250362 Seal-TraySeal-Tray
-
800707900178 GrillGrill
-
805707900180 GrillGrill
-
820250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
825250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
826250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
830234062670 Flat Washer, StainlessFlat Washer, Stainless
-
835250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
840250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
845250200025 Washer M5Washer M5
-
950707900023 RH Lower FloorRH Lower Floor
-
960250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
965234062670 Flat Washer, StainlessFlat Washer, Stainless
-
970250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
975250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
980250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
985250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
990233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1000234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1010250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1020293250242 Rubber CoverRubber Cover
-
1600715002356 LH Under Seat Plate KitLH Under Seat Plate Kit
-
1610293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1620707900133 InsertInsert
-
1630503189273 WasherWasher
-
1700707900006 RH Under Seat PlateRH Under Seat Plate
-
1710293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
1720707900133 InsertInsert
-
1730503189273 WasherWasher
-
1890707900133 InsertInsert
-
1900503189273 WasherWasher
-
2080707900133 InsertInsert
-
2090503189273 WasherWasher
-
2250250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2260250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2290707900109 Protection Trim. Package LTDProtection Trim. Package LTD
-
2300707900019 Lower Central Dashboard Ass'y. Except Package LTDLower Central Dashboard Ass'y. Except Package LTD
-
2300707900065 Lower Central Dashboard Ass'y. Package LTD. Includes 2300 to 2300aLower Central Dashboard Ass'y. Package LTD. Includes 2300 to 2300a
-
2310250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2320250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2330293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
2350707900066 Gauge Support. Package LTDGauge Support. Package LTD
-
2360250000720 Torx Screw K50 X 16. Package LTDTorx Screw K50 X 16. Package LTD
-
2370732610072 Push Nut. Package LTDPush Nut. Package LTD
-
2400707900011 Passenger HandlePassenger Handle
-
2410250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2420707900048 Connector TubeConnector Tube
-
2650707900237 Front LH Safety NetFront LH Safety Net
-
2660707900238 Front RH Safety NetFront RH Safety Net
-
2670233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2690233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
2700234062410 Flat Washer 6 mmFlat Washer 6 mm
-
2705234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2710207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2715250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
2730234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2740233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3000707900070 Lever IndicatorLever Indicator
-
3100250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3300707900619 Front Central Console FoamFront Central Console Foam
-
3320707900620 Left Upper Lateral Console FoamLeft Upper Lateral Console Foam
-
3330707900621 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
3340707900622 RH Lateral Console FoamRH Lateral Console Foam
-
3350707900623 RH Lateral Console FoamRH Lateral Console Foam
-
3360707900624 RH Lateral Console FoamRH Lateral Console Foam
-
3550707900148 Heat SheetHeat Sheet
-
3600707900149 Heat SheetHeat Sheet
-
3650707900150 Heat SheetHeat Sheet
-
3700707900151 Heat SheetHeat Sheet
-
3750707900146 Heat SheetHeat Sheet
-
3800707900147 Heat SheetHeat Sheet
-
3850707900145 Heat SheetHeat Sheet
-
3900707900190 Heat SheetHeat Sheet
-
3950707900191 Heat SheetHeat Sheet
-
4000250000742 Torx Screw M5 X 14. Not shownTorx Screw M5 X 14. Not shown
-
4005250200040 Flat Washer. Not shownFlat Washer. Not shown
-
4010250000722 Torx Screw M6 X 20. Not shownTorx Screw M6 X 20. Not shown
