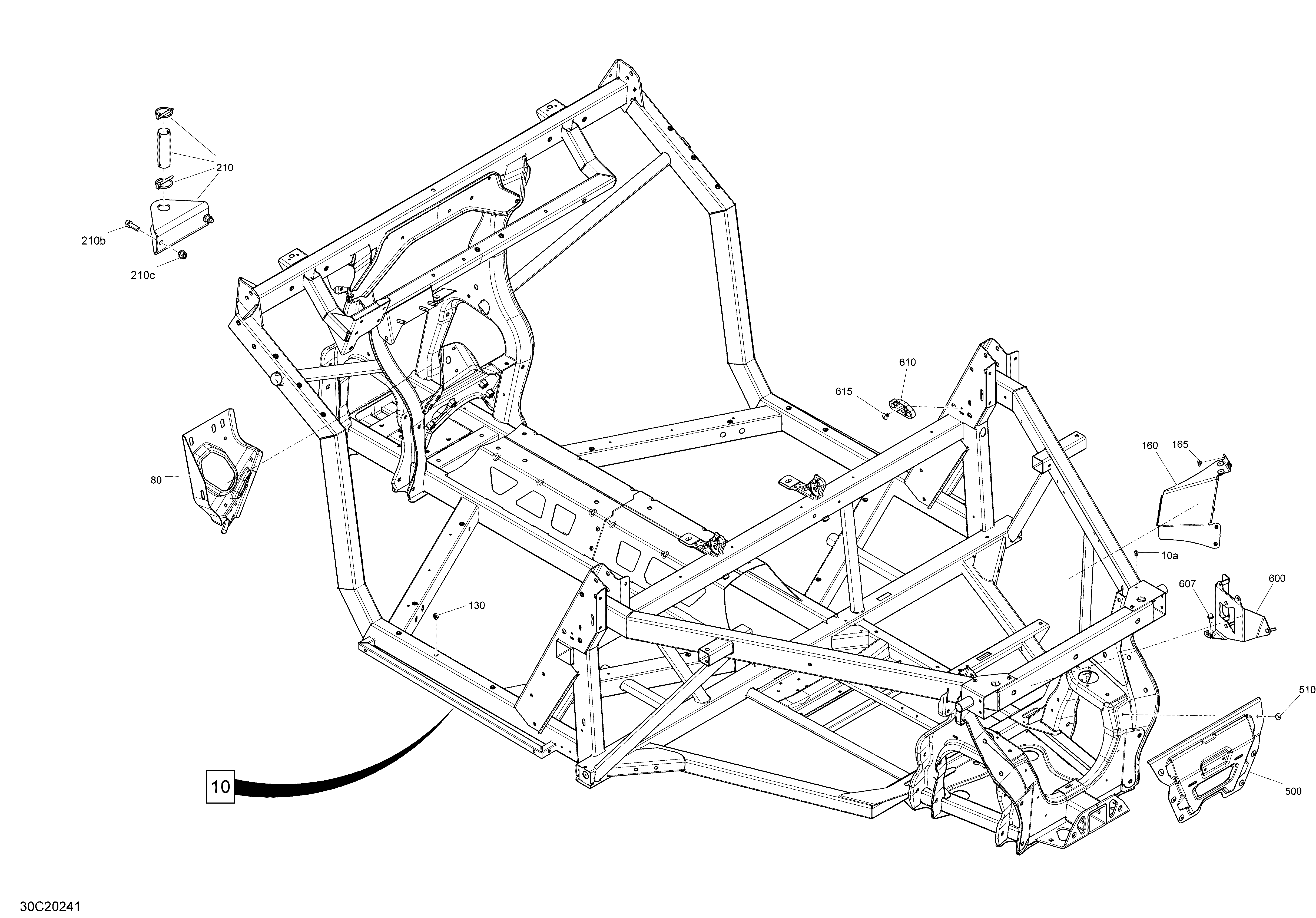

09- Frame для BRP 002 - Defender HD8 - North America - 2020
-
№АртикулНазвание
-
10715006677 Black, Frame KitBlack, Frame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
80705208740 Support. BASESupport. BASE
-
80705208741 Power Steering Support. CAB_XTPower Steering Support. CAB_XT
-
130250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
160707002709 Heat ShieldHeat Shield
-
165293150092 Pop Rivet 3/16”Pop Rivet 3/16”
-
210705206240 Front Coupling Device Ass'y. Includes 210 to 210cFront Coupling Device Ass'y. Includes 210 to 210c
-
210a605456518 PinPin
-
210b205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
210c233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
500705207753 Rear Chassis ReinforcementRear Chassis Reinforcement
-
510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
600710006644 Voltage Regulator Support. CAB_XT_BASEVoltage Regulator Support. CAB_XT_BASE
-
607207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
610705208203 SpacerSpacer
-
615293150104 Pop Rivet 3/16''Pop Rivet 3/16''
