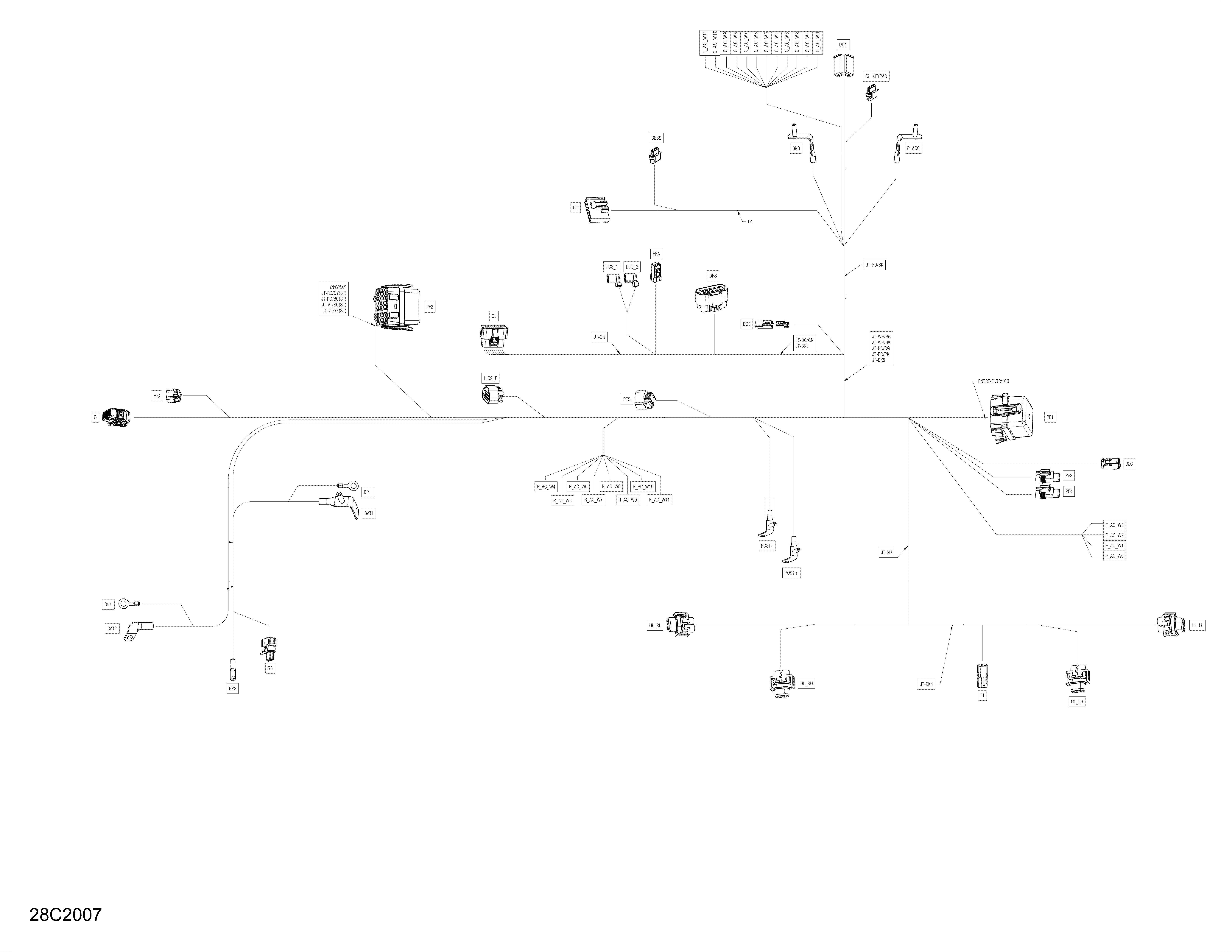

10- Main Harness - 710006376 - BASE - DPS - XT для BRP 002 - Defender HD8 - North America - 2020
-
№АртикулНазвание
-
710006376 Main Wiring HarnessMain Wiring Harness
-
2X4710002000 HousingHousing
-
2X4710003047 TerminalTerminal
-
2X4710005491 Female TerminalFemale Terminal
-
B710001591 Cover, 48 positionsCover, 48 positions
-
B710001588 Female Terminal Housing, 48 CircuitsFemale Terminal Housing, 48 Circuits
-
B710001592 PlugPlug
-
B710001593 PlugPlug
-
B710001727 Female TerminalFemale Terminal
-
B710001728 TerminalTerminal
-
B710001589 Female TerminalFemale Terminal
-
BAT2710000475 Open Barel 6.6 mmOpen Barel 6.6 mm
-
BN1710000913 TerminalTerminal
-
BN3710006801 Open BarellOpen Barell
-
BP1515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
BP1278000992 Open BarrelOpen Barrel
-
C_AC_W0278001008 Insulated SheathInsulated Sheath
-
C_AC_W0278000230 Male TerminalMale Terminal
-
C_AC_W1278001008 Insulated SheathInsulated Sheath
-
C_AC_W1278000230 Male TerminalMale Terminal
-
C_AC_W11278001008 Insulated SheathInsulated Sheath
-
C_AC_W11278000230 Male TerminalMale Terminal
-
C_AC_W2278001008 Insulated SheathInsulated Sheath
-
C_AC_W2278000230 Male TerminalMale Terminal
-
C_AC_W3278001008 Insulated SheathInsulated Sheath
-
C_AC_W3278000230 Male TerminalMale Terminal
-
C_AC_W4278001008 Insulated SheathInsulated Sheath
-
C_AC_W4278000230 Male TerminalMale Terminal
-
C_AC_W5278001008 Insulated SheathInsulated Sheath
-
C_AC_W5278000230 Male TerminalMale Terminal
-
C_AC_W6278001008 Insulated SheathInsulated Sheath
-
C_AC_W6278000230 Male TerminalMale Terminal
-
C_AC_W7278001008 Insulated SheathInsulated Sheath
-
C_AC_W7278000230 Male TerminalMale Terminal
-
C_AC_W8278001008 Insulated SheathInsulated Sheath
-
C_AC_W8278000230 Male TerminalMale Terminal
-
C_AC_W9278001008 Insulated SheathInsulated Sheath
-
C_AC_W9278000230 Male TerminalMale Terminal
-
C_AC-W10278001008 Insulated SheathInsulated Sheath
-
C_AC-W10278000230 Male TerminalMale Terminal
-
CC710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
CC710000848 LockLock
-
CC710000274 Female TerminalFemale Terminal
-
CL278002858 Female Housing, 20 CircuitsFemale Housing, 20 Circuits
-
CL278002860 Sealing CapSealing Cap
-
CL515178018 Terminal FemaleTerminal Female
-
CL515178349 Female Terminal 22 AWGFemale Terminal 22 AWG
-
CL_KEYPAD710001161 HousingHousing
-
CL_KEYPAD710001162 LockLock
-
CL_KEYPAD710001163 Wire SealWire Seal
-
CL_KEYPAD710001164 Female TerminalFemale Terminal
-
D1409012700 DiodeDiode
-
D2409012700 DiodeDiode
-
DC1710005373 HousingHousing
-
DC1710005518 TerminalTerminal
-
DC2_1409010300 Female TerminalFemale Terminal
-
DC2_2409010300 Female TerminalFemale Terminal
-
DC3515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DC3515175231 Female TerminalFemale Terminal
-
DC3_CAP710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DESS710001161 HousingHousing
-
DESS710001162 LockLock
-
DESS710001225 CapCap
-
DESS710001163 Wire SealWire Seal
-
DESS710001164 Female TerminalFemale Terminal
-
DIFF710002000 HousingHousing
-
DIFF710005491 Female TerminalFemale Terminal
-
DIFF710003047 TerminalTerminal
-
DLC710002706 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
DLC710002705 LockLock
-
DLC710005437 PlugPlug
-
DLC710005438 Female TerminalFemale Terminal
-
DLC710005439 Female TerminalFemale Terminal
-
DPS710004989 Female HousingFemale Housing
-
DPS710005098 LockLock
-
DPS710001222 LockLock
-
DPS710002075 PlugPlug
-
DPS278002186 Wire SealWire Seal
-
DPS710003153 SealSeal
-
DPS278002187 Female TerminalFemale Terminal
-
DPS710001873 TerminalTerminal
-
F_AC_W0278001007 Insulated SheathInsulated Sheath
-
F_AC_W0278001009 Female TerminalFemale Terminal
-
F_AC_W1278001007 Insulated SheathInsulated Sheath
-
F_AC_W1278001009 Female TerminalFemale Terminal
-
F_AC_W2278001007 Insulated SheathInsulated Sheath
-
F_AC_W2278001009 Female TerminalFemale Terminal
-
F_AC_W3278001007 Insulated SheathInsulated Sheath
-
F_AC_W3278001009 Female TerminalFemale Terminal
-
FL-1715002536 Fuse Link 21-30AMPFuse Link 21-30AMP
-
FL-2715002538 Fuse Link 41-50AMPFuse Link 41-50AMP
-
FRA515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FRA710003896 Female TerminalFemale Terminal
-
FT710000992 ClipClip
-
FT278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
FT278000218 Wire SealWire Seal
-
FT409004300 Male TerminalMale Terminal
-
HIBM710002001 Housing ConnectorHousing Connector
-
HIBM710003047 TerminalTerminal
-
HIBM710005491 Female TerminalFemale Terminal
-
HIBM710003048 TerminalTerminal
-
HIBM_JMP_F515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIBM_JMP_F515175231 Female TerminalFemale Terminal
-
HIBM_JMP_M515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
HIBM_JMP_M515175232 Male TerminalMale Terminal
-
HIC710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
HIC710001222 LockLock
-
HIC710006333 LockLock
-
HIC710001225 CapCap
-
HIC710001233 SealSeal
-
HIC710001332 Seal WireSeal Wire
-
HIC710001229 TerminalTerminal
-
HIC710001228 TerminalTerminal
-
HIC9_F710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
HIC9_F710001222 LockLock
-
HIC9_F710006333 LockLock
-
HIC9_F710001233 SealSeal
-
HIC9_F710001332 Seal WireSeal Wire
-
HIC9_F710001229 TerminalTerminal
-
HIC9_F710001228 TerminalTerminal
-
HL_LH710002578 HousingHousing
-
HL_LH710002584 LockLock
-
HL_LH710001427 Wire SealWire Seal
-
HL_LH278002578 Female TerminalFemale Terminal
-
HL_LL710002578 HousingHousing
-
HL_LL710002584 LockLock
-
HL_LL710001427 Wire SealWire Seal
-
HL_LL278002578 Female TerminalFemale Terminal
-
HL_RH710002578 HousingHousing
-
HL_RH710002584 LockLock
-
HL_RH710001427 Wire SealWire Seal
-
HL_RH278002578 Female TerminalFemale Terminal
-
HL_RL710002578 HousingHousing
-
HL_RL710002584 LockLock
-
HL_RL710001427 Wire SealWire Seal
-
HL_RL278002578 Female TerminalFemale Terminal
-
P_ACC710006742 Open BarellOpen Barell
-
PF1278003553 Fuse CoverFuse Cover
-
PF1278003448 Fuse Base Ass'yFuse Base Ass'y
-
PF1278000216 Wire SealWire Seal
-
PF1293300198 SealSeal
-
PF1278000218 Wire SealWire Seal
-
PF1278001065 Wire SealWire Seal
-
PF1710000048 Wire SealWire Seal
-
PF1710000918 Female TerminalFemale Terminal
-
PF1278002578 Female TerminalFemale Terminal
-
PF1515177177 Female TerminalFemale Terminal
-
PF1_STD_LABEL710006953 Fuse Box DecalFuse Box Decal
-
PF1-F10710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F11710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF1-F12710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F14710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-F16710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF1-R3515176774 Relay, 30 AMPRelay, 30 AMP
-
PF1-R8710001778 RelayRelay
-
PF1-R9515176775 Relay, 50 AMPRelay, 50 AMP
-
PF1-SPARE710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
PF2278003553 Fuse CoverFuse Cover
-
PF2278003448 Fuse Base Ass'yFuse Base Ass'y
-
PF2278000216 Wire SealWire Seal
-
PF2293300198 SealSeal
-
PF2278000218 Wire SealWire Seal
-
PF2278001065 Wire SealWire Seal
-
PF2710000918 Female TerminalFemale Terminal
-
PF2278002578 Female TerminalFemale Terminal
-
PF2710000890 Female TerminalFemale Terminal
-
PF2_LABEL710006792 Fuse Box DecalFuse Box Decal
-
PF2_SP1710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2_SP2710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2_SP3710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F18710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F4710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F5710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F6710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F7710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F8710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
PF2-F9710002590 Fuse, 25 AmpsFuse, 25 Amps
-
PF2-R1515176774 Relay, 30 AMPRelay, 30 AMP
-
PF2-R2710001778 RelayRelay
-
PF3278001325 Fuse HolderFuse Holder
-
PF3710000113 Female TerminalFemale Terminal
-
PF3-F2710001613 FuseFuse
-
PF4278001325 Fuse HolderFuse Holder
-
PF4710000113 Female TerminalFemale Terminal
-
PF4-F21710001613 FuseFuse
-
PPS515177151 HousingHousing
-
PPS710005296 Lock 6 PositionsLock 6 Positions
-
PPS710001233 SealSeal
-
PPS710001229 TerminalTerminal
-
R_AC_W10278001007 Insulated SheathInsulated Sheath
-
R_AC_W10278001009 Female TerminalFemale Terminal
-
R_AC_W11278001007 Insulated SheathInsulated Sheath
-
R_AC_W11278001009 Female TerminalFemale Terminal
-
R_AC_W4278001007 Insulated SheathInsulated Sheath
-
R_AC_W4278001009 Female TerminalFemale Terminal
-
R_AC_W5278001007 Insulated SheathInsulated Sheath
-
R_AC_W5278001009 Female TerminalFemale Terminal
-
R_AC_W6278001007 Insulated SheathInsulated Sheath
-
R_AC_W6278001009 Female TerminalFemale Terminal
-
R_AC_W7278001007 Insulated SheathInsulated Sheath
-
R_AC_W7278001009 Female TerminalFemale Terminal
-
R_AC_W8278001007 Insulated SheathInsulated Sheath
-
R_AC_W8278001009 Female TerminalFemale Terminal
-
R_AC_W9278001007 Insulated SheathInsulated Sheath
-
R_AC_W9278001009 Female TerminalFemale Terminal
-
SB710002177 HousingHousing
-
SB710002043 LockLock
-
SB278001482 SealSeal
-
SB710001134 Female TerminalFemale Terminal
-
SIG_L515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SIG_L710001152 LockLock
-
SIG_L710001163 Wire SealWire Seal
-
SIG_L710001164 Female TerminalFemale Terminal
-
SIG_R515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SIG_R710001152 LockLock
-
SIG_R710001163 Wire SealWire Seal
-
SIG_R710001164 Female TerminalFemale Terminal
-
SS515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SS710001152 LockLock
-
SS710001153 Seal WireSeal Wire
-
SS710001164 Female TerminalFemale Terminal
Все узлы модели:
- 00- Model Numbers
- 01- Cooling - System
- 01- Crankcase - HD8
- 01- Crankshaft, Piston And Cylinder - HD8
- 01- Cylinder Head, Front - HD8
- 01- Cylinder Head, Rear - HD8
- 01- Engine - Vehicule
- 01- Engine Cooling - HD8
- 01- Engine Lubrication - HD8
- 01- Exhaust
- 02- Air Intake Manifold And Throttle Body - HD8
- 02- Engine - Air Intake
- 02- Engine - Fuel - Evap
- 02- Engine - Fuel - No Evap
- 03- Magneto And Electric Starter - HD8
- 05- Gear Box 1
- 05- Gear Box 2 - 794
- 05- Gear Box And Components - 794
- 05- Transmission - HD8
- 06- Brakes
- 07- Drive - Wheels - BASE
- 07- Drive - Wheels - CAB
- 07- Drive - Wheels - DPS
- 07- Drive - Wheels - XT
- 07- Front Drive - Common Parts - BASE - DPS - XT
- 07- Front Drive - Common Parts - CAB
- 07- Front Drive - Differential Parts - BASE
- 07- Front Drive - Differential Parts - DPS - XT - CAB
- 07- Steering
- 07- Suspension - Shocks - CAB
- 07- Suspension - Shocks - DPS - XT - BASE
- 07- Suspension, Front - System - CAB
- 07- Suspension, Front - System - DPS - XT - BASE
- 08- Drive Shaft - HD8
- 08- Rear Drive - Common Parts
- 08- Rear Drive - Differential Parts
- 08- Suspension, Rear - CAB
- 08- Suspension, Rear - DPS - XT - BASE
- 09- Body - CAB
- 09- Body - Skid Plate - CAB
- 09- Body - Skid Plate - XT
- 09- Body - Squadron Green - BASE
- 09- Body - Squadron Green - Camo - DPS
- 09- Body - XT
- 09- Cab - Back Wall Section
- 09- Cab - Front Door
- 09- Cab - Heater System
- 09- Cab - Upper Console
- 09- Cab - Winshield And Rear Window
- 09- Cab Interior - Back Wall Section
- 09- Cab Interior - Dashboard
- 09- Cab Interior - Door Safety Net
- 09- Cab Interior - Fire Wall Section
- 09- Decals - BASE
- 09- Decals - CAB
- 09- Decals - DPS
- 09- Decals - XT
- 09- Frame
- 09- Rear Cargo Box - BASE - DPS - XT
- 09- Rear Cargo Box - CAB
- 09- Rear Cargo Box - XT
- 09- Safety Cage
- 09- Seat - Base - DPS
- 09- Seat - CAB - XT
- 09- Storage Tray
- 10- Electric - System - Front Section - BASE - DPS - XT
- 10- Electric - System - Front Section - CAB
- 10- Electric - System - Rear Section - BASE - DPS - XT
- 10- Electric - System - Rear Section - CAB
- 10- Engine Harness And Electronic Module - HD8
- • 10- Main Harness - 710006376 - BASE - DPS - XT
- 10- Main Harness - 710006752 - CAB
