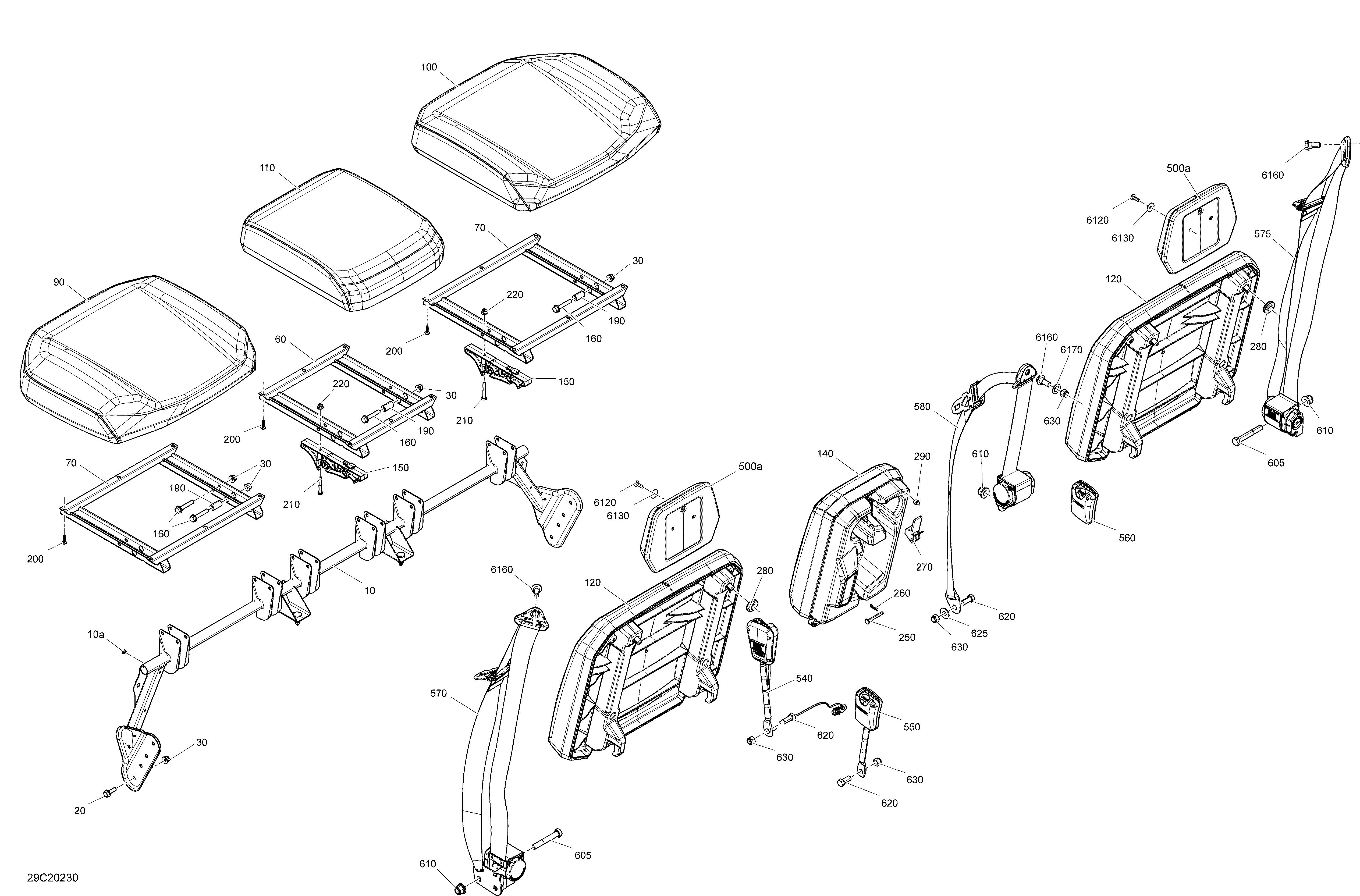

09- Seat - Base - DPS для BRP 002 - Defender HD8 - North America - 2020
-
№АртикулНазвание
-
10708002817 Seat Member. Includes 10 to 10aSeat Member. Includes 10 to 10a
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
20207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
60708002815 Mid Seat MemberMid Seat Member
-
70708002821 Passenger Seat MemberPassenger Seat Member
-
90708002544 LH Cushion Ass'yLH Cushion Ass'y
-
100708001498 RH Cushion Ass'yRH Cushion Ass'y
-
110708001629 Central Cushion Ass'yCentral Cushion Ass'y
-
120708001701 Backrest Ass'yBackrest Ass'y
-
140708003155 Backrest Ass'yBackrest Ass'y
-
150708002581 Seat Base PivotSeat Base Pivot
-
160207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
190708001903 BushingBushing
-
200250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
210207064544 Hex. Screw M6 X 45Hex. Screw M6 X 45
-
220233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
250250400069 PinPin
-
260269800431 HairpinHairpin
-
270269501487 LatchLatch
-
280517303756 GrommetGrommet
-
290293830005 Rubber BumperRubber Bumper
-
500a708002853 HeadrestHeadrest
-
540708002331 Driver BuckleDriver Buckle
-
550708003163 Middle BuckleMiddle Buckle
-
560708002329 Passenger BucklePassenger Buckle
-
570708003082 LH Safety BeltLH Safety Belt
-
575708003200 RH Safety BeltRH Safety Belt
-
580708003164 Central Safety BeltCentral Safety Belt
-
605207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
610233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
620250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
625250200102 Flat Washer M12Flat Washer M12
-
630250100183 Lock Nut Nylon 7/16Lock Nut Nylon 7/16
-
6120250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6130250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
6160708000890 Safety Belt ScrewSafety Belt Screw
-
6170708000891 Position WasherPosition Washer
