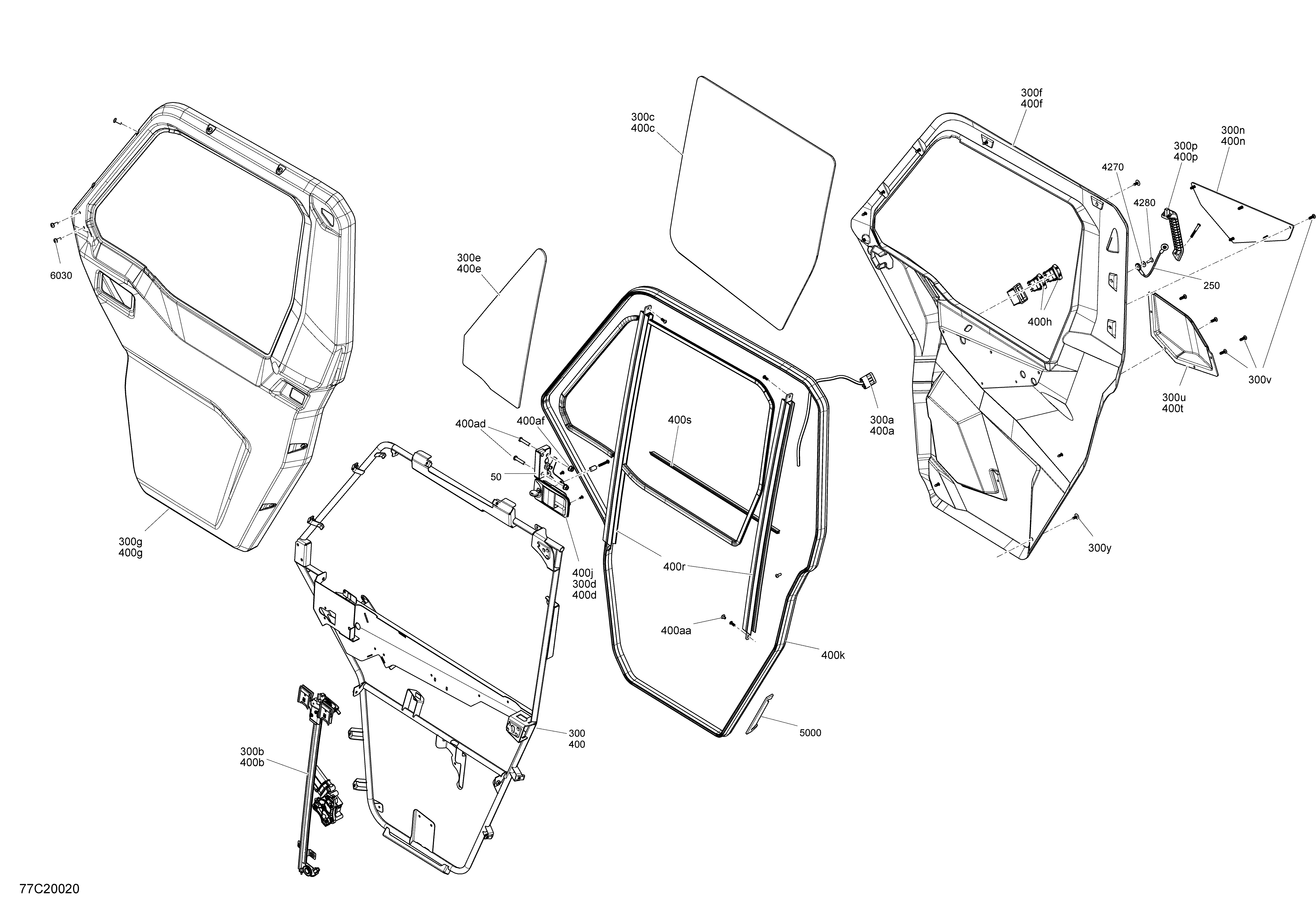

09- Cab - Front Door для BRP 005 - Defender HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
50705800008 Handle AnchorHandle Anchor
-
250703500982 Door Limit Device KitDoor Limit Device Kit
-
300705800474 LH Front Rigid Door Ass'y. Includes 300 to 300nLH Front Rigid Door Ass'y. Includes 300 to 300n
-
300a705800047 Driver Door HarnessDriver Door Harness
-
300c705800016 LH Roll-Down GlassLH Roll-Down Glass
-
300e705800608 LH A-Pillar GlassLH A-Pillar Glass
-
300f705800322 LH Routed Inner DoorLH Routed Inner Door
-
300g705800589 LH Exterior Door PanelLH Exterior Door Panel
-
300p705800324 LH Interior HandleLH Interior Handle
-
300u705800604 LH Door PocketLH Door Pocket
-
400t705800605 RH Door PocketRH Door Pocket
-
300v705009405 Plastic DartPlastic Dart
-
300y293730011 Black, DartBlack, Dart
-
300d703000915 LH Interior Latch KitLH Interior Latch Kit
-
400d703500916 RH Interior Latch KitRH Interior Latch Kit
-
300n715006687 LH Door Panel KitLH Door Panel Kit
-
400n715006689 RH Door Panel KitRH Door Panel Kit
-
400705800475 RH Front Rigid Door Ass'y. Includes 400 to 400afRH Front Rigid Door Ass'y. Includes 400 to 400af
-
400a705800050 Passenger Door HarnessPassenger Door Harness
-
300b705800594 LH Window Regulator Ass'yLH Window Regulator Ass'y
-
400b705800593 RH Window Regulator Ass'yRH Window Regulator Ass'y
-
400c705800025 RH Roll-Down GlassRH Roll-Down Glass
-
400e705800609 RH A-Pillar GlassRH A-Pillar Glass
-
400f705800323 RH Routed Inner DoorRH Routed Inner Door
-
400g705800592 RH Door Outer PanelRH Door Outer Panel
-
400h705800048 Window SwitchWindow Switch
-
400j705800015 Exterior Paddle LatchExterior Paddle Latch
-
400k705800289 Seal 705800290 - 5000 MMSeal 705800290 - 5000 MM
-
400p705800325 RH Interior HandleRH Interior Handle
-
400r705800590 Window Guide ExtrusionWindow Guide Extrusion
-
400s705800591 Folcked Beltline Trim 705800294 600mmFolcked Beltline Trim 705800294 600mm
-
400aa250000747 Torx-Truss M/S M6 X 10Torx-Truss M/S M6 X 10
-
400ad205484060 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
400af233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
4270234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4280250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5000705800504 Acoustic InsulationAcoustic Insulation
-
6030250000712 Torx Screw M6 X 20Torx Screw M6 X 20
