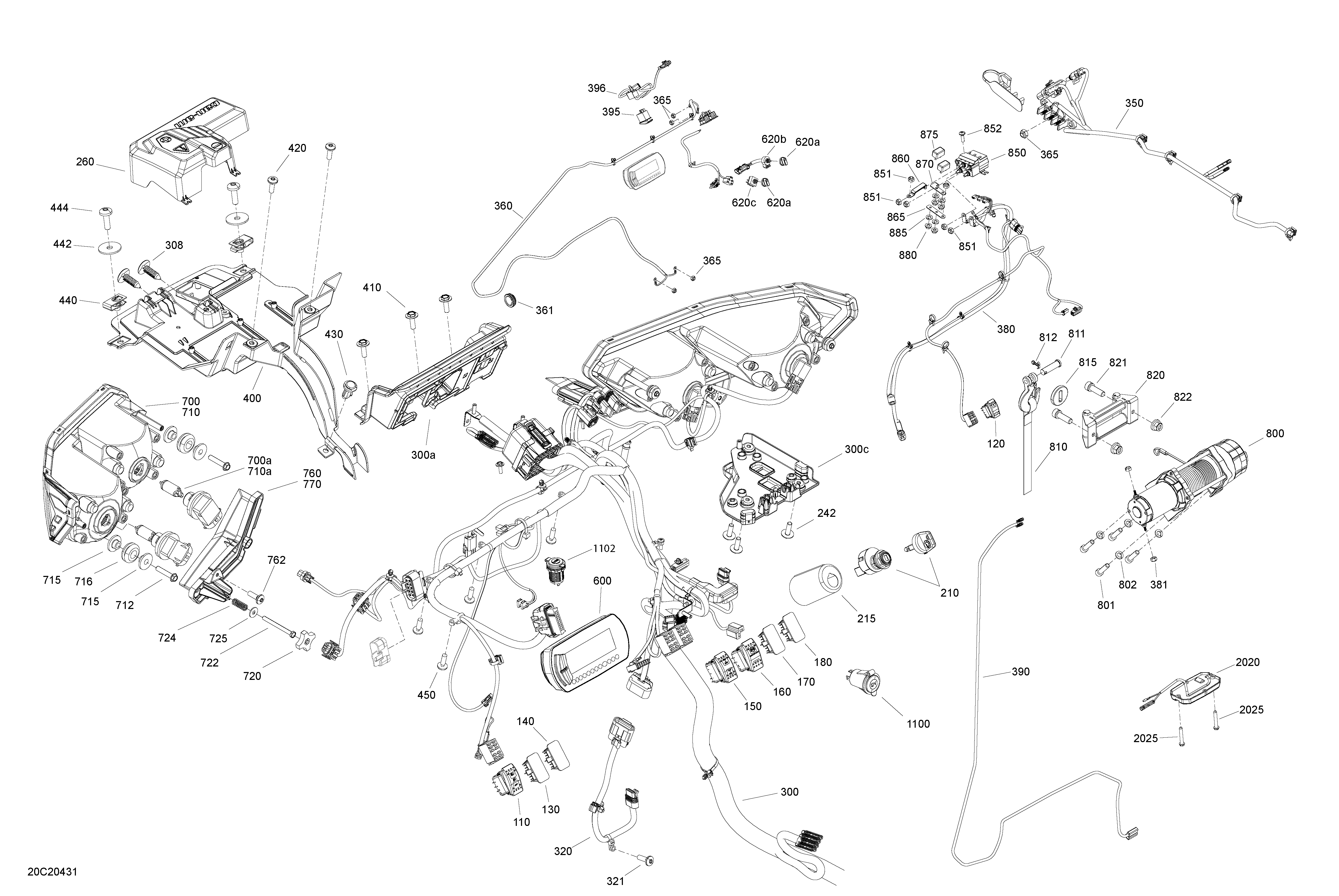

10- Electric - System - Front Section для BRP 005 - Defender HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
110710004492 Light SwitchLight Switch
-
120710002052 SwitchSwitch
-
130710001999 Plug CarlingPlug Carling
-
140710001999 Plug CarlingPlug Carling
-
150710005489 SwitchSwitch
-
160710005470 Differential Lock SwitchDifferential Lock Switch
-
170710001999 Plug CarlingPlug Carling
-
180710001999 Plug CarlingPlug Carling
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
215710005739 Key Switch ProtectorKey Switch Protector
-
242250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
260710006707 Junction Block CoverJunction Block Cover
-
300710006752 Main Wiring Harness. Includes 300 to 300cMain Wiring Harness. Includes 300 to 300c
-
300a710006640 Fusebox SupportFusebox Support
-
300c710006706 Connector SupportConnector Support
-
308293730006 Black, DartBlack, Dart
-
320710006837 Throttle Pedal HarnessThrottle Pedal Harness
-
321250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
350710004462 Window/Wiper HarnessWindow/Wiper Harness
-
360710007038 Roof Wiring HarnessRoof Wiring Harness
-
361710002743 BootBoot
-
365232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
380710006653 Winch Wiring HarnessWinch Wiring Harness
-
381232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
390710004466 Wiper HarnessWiper Harness
-
395710004941 Wiper SwitchWiper Switch
-
396710004942 Wiper HarnessWiper Harness
-
400710006649 Wiring Harness SupportWiring Harness Support
-
410250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
420250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
430293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
442250200029 Washer M6Washer M6
-
444250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
450250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
600710006739 Compact Multifonction GaugeCompact Multifonction Gauge
-
620a520001675 ButtonButton
-
620b520001680 PotentiometerPotentiometer
-
620c520001674 Fan SwitchFan Switch
-
700710006976 LH BeamLH Beam
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
710710006977 RH BeamRH Beam
-
710a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716293720053 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724517168600 SpringSpring
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
760710006374 LH Auxiliary LED HeadlightLH Auxiliary LED Headlight
-
762250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
770710006375 RH Auxiliary LED HeadlightRH Auxiliary LED Headlight
-
800710006993 Electric WinchElectric Winch
-
801205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
802234181401 Lock Washer 8 mmLock Washer 8 mm
-
810710007029 Winch Hook. XTWinch Hook. XT
-
811710006995 Lock Pin. XTLock Pin. XT
-
812710006994 Cotter Pin. XTCotter Pin. XT
-
815710007028 StopperStopper
-
820710006996 Fairlead RollerFairlead Roller
-
821205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
822233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
850710006991 SolenoidSolenoid
-
851232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
852250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
860710004772 Power BarPower Bar
-
865710006401 Copper BusbarCopper Busbar
-
870710004873 Power BarPower Bar
-
875710007039 Circuit Breaker 50 AmpCircuit Breaker 50 Amp
-
880250100071 Hex. Flanged Nut M5Hex. Flanged Nut M5
-
885234161601 Lock Washer Helical M6Lock Washer Helical M6
-
1100710005374 12V Power Outlet12V Power Outlet
-
1102219400510 USB OutletUSB Outlet
-
2020715002455 Dome LightDome Light
-
2025241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
