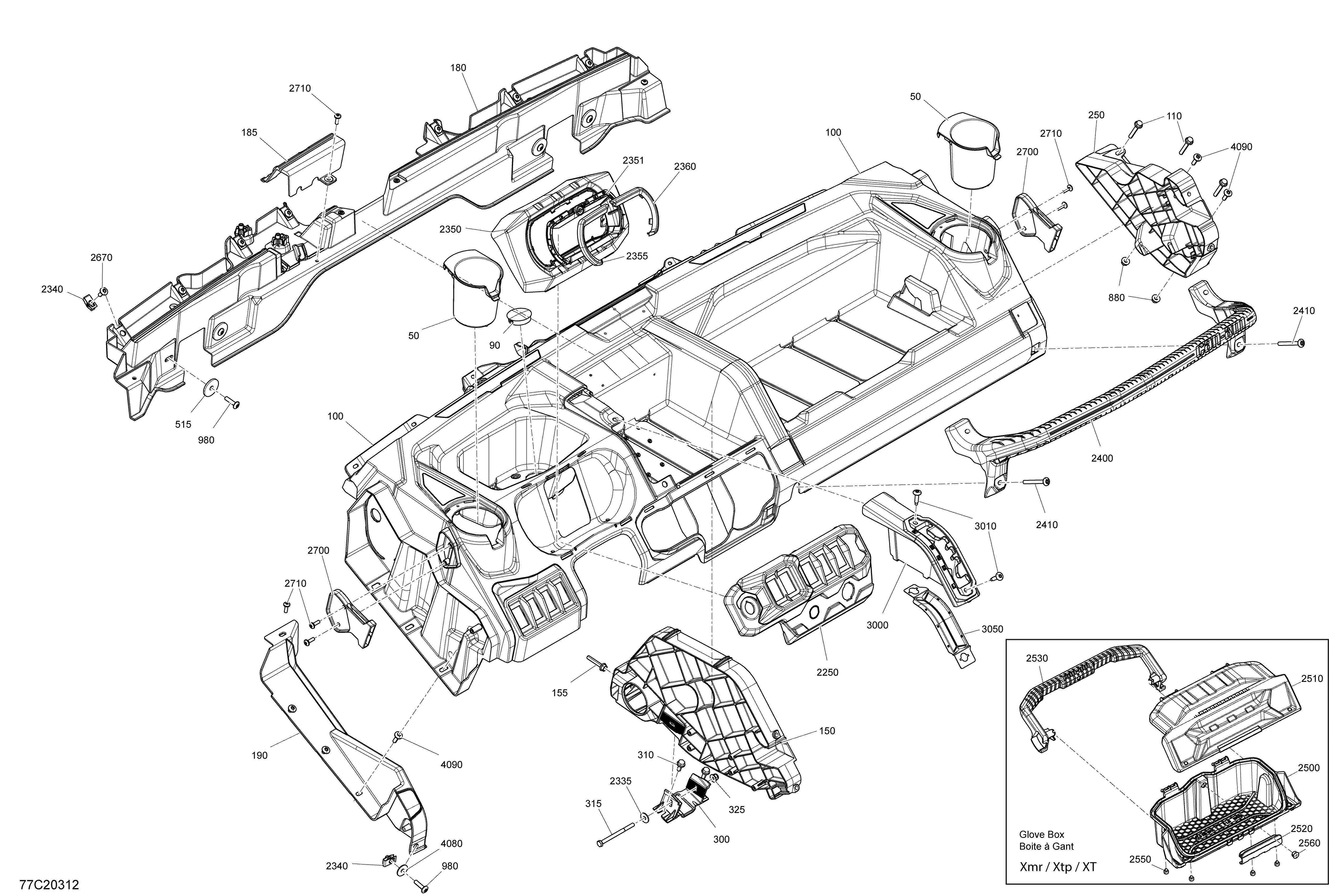

09- Cab Interior - Dashboard для BRP 005 - Defender HD10 - CAB - North America - 2020
-
№АртикулНазвание
-
50707900288 Cup HolderCup Holder
-
90293000126 PlugPlug
-
100715006516 Upper Dashboard Kit Ass'yUpper Dashboard Kit Ass'y
-
110207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
150707900249 Dash SupportDash Support
-
155207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
180707900755 Front Upper DeflectorFront Upper Deflector
-
185707900747 Front Upper DeflectorFront Upper Deflector
-
190707900738 LH Upper DeflectorLH Upper Deflector
-
250707900367 RH SupportRH Support
-
300707900402 ClampClamp
-
310207561646 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
315207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
325233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
515250200158 Flat Washer M8Flat Washer M8
-
880233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
980250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
2250703501098 Switch SupportSwitch Support
-
2335234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2340250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2350707900801 Gauge SupportGauge Support
-
2351709402093 Cluster CapCluster Cap
-
2355709402210 Deep Black, LH Trim for Cluster CapDeep Black, LH Trim for Cluster Cap
-
2360709402211 Deep Black, RH Trim for Cluster CapDeep Black, RH Trim for Cluster Cap
-
2400707900248 Passenger HandholdPassenger Handhold
-
2410250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
2500707900244 Glove Box BaseGlove Box Base
-
2510707900245 Glove Box CoverGlove Box Cover
-
2520269501945 ClipClip
-
2530707900567 HandleHandle
-
2550293830005 Rubber BumperRubber Bumper
-
2560293000120 CapCap
-
2670250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
2700707900592 Safety Net LinkSafety Net Link
-
2710250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3000707900608 Shifter GateShifter Gate
-
3010250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3050707900506 Shifter Gate DeflectorShifter Gate Deflector
-
4080250200162 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
4090250000722 Torx Screw M6 X 20Torx Screw M6 X 20
