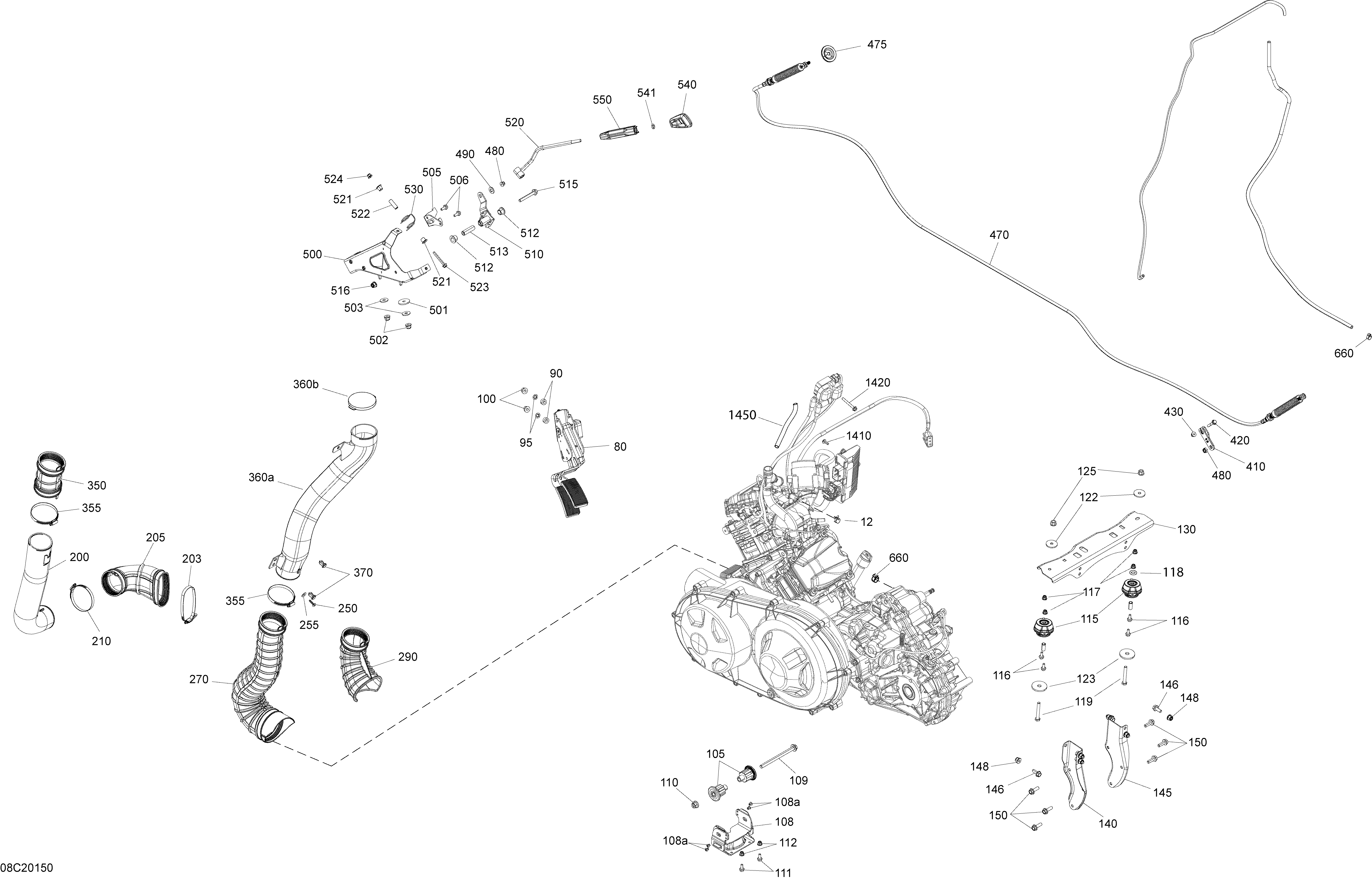

01- Engine - Vehicule для BRP 008 - Defender MAX HD10 - XMR - North America - 2020
-
№АртикулНазвание
-
12293650214 Norma Spring ClampNorma Spring Clamp
-
80707001599 Accelerator PedalAccelerator Pedal
-
90707000848 BushingBushing
-
95250100031 Push NutPush Nut
-
100233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
105707001169 DamperDamper
-
108707002592 Vibration Damper. Includes 108 to 108aVibration Damper. Includes 108 to 108a
-
108a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
109230603546 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
110233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
111207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
112233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
115707002590 Rubber MountRubber Mount
-
116207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
117233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
118293300215 O-RingO-Ring
-
119207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
122250200158 Flat Washer M8Flat Washer M8
-
123250200180 Flat Washer M8Flat Washer M8
-
125233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
130707002290 Bracket-LinkBracket-Link
-
140707002449 Engine BracketEngine Bracket
-
145707002450 Engine BracketEngine Bracket
-
146207582046 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
148233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
150207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
200706600220 DuctDuct
-
200706600234 DuctDuct
-
203514052983 Norma Gear ClampNorma Gear Clamp
-
205706600249 Flexible AdapterFlexible Adapter
-
210293650091 Norma ClampNorma Clamp
-
250250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
255250200025 Washer M5Washer M5
-
270706600198 Flexible AdapterFlexible Adapter
-
290706600199 Air BaffleAir Baffle
-
350706600204 Flexible JoinFlexible Join
-
355293650091 Norma ClampNorma Clamp
-
360a706600201 Pipe VentPipe Vent
-
360b293000123 CapCap
-
370293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
410707000911 LeverLever
-
420207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
470707002623 Shifting CableShifting Cable
-
475293720109 GrommetGrommet
-
480232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
490234001410 Flat Washer 10 mmFlat Washer 10 mm
-
500707002372 Shifter BracketShifter Bracket
-
501250200158 Flat Washer M8Flat Washer M8
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
503234082410 Flat Washer 8 mmFlat Washer 8 mm
-
505707002038 Cable SupportCable Support
-
506207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
510707002268 Lower Shifter ArmLower Shifter Arm
-
512293900001 Venturi BushingVenturi Bushing
-
513707001863 Internal BushingInternal Bushing
-
515207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
516233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
520707002374 Shifter ArmShifter Arm
-
521707000869 Flanged BushingFlanged Bushing
-
522707001376 BushingBushing
-
523207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
524233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
530707000750 Lever Arm SpringLever Arm Spring
-
540707000965 Lever ButtonLever Button
-
541232180491 Hex. Jam Nut M8Hex. Jam Nut M8
-
550707001899 Shifting Arm CoverShifting Arm Cover
-
655710005529 Dart MountDart Mount
-
660293650042 Oetiker ClampOetiker Clamp
-
1410243141630 Hex. Plastic Screw M4.8 X 16Hex. Plastic Screw M4.8 X 16
-
1420250000213 Hex. Flanged Screw M6 X 1.0 X 45Hex. Flanged Screw M6 X 1.0 X 45
-
1450a415080000 Tubing 16 mm (1 meter pac)Tubing 16 mm (1 meter pac)
