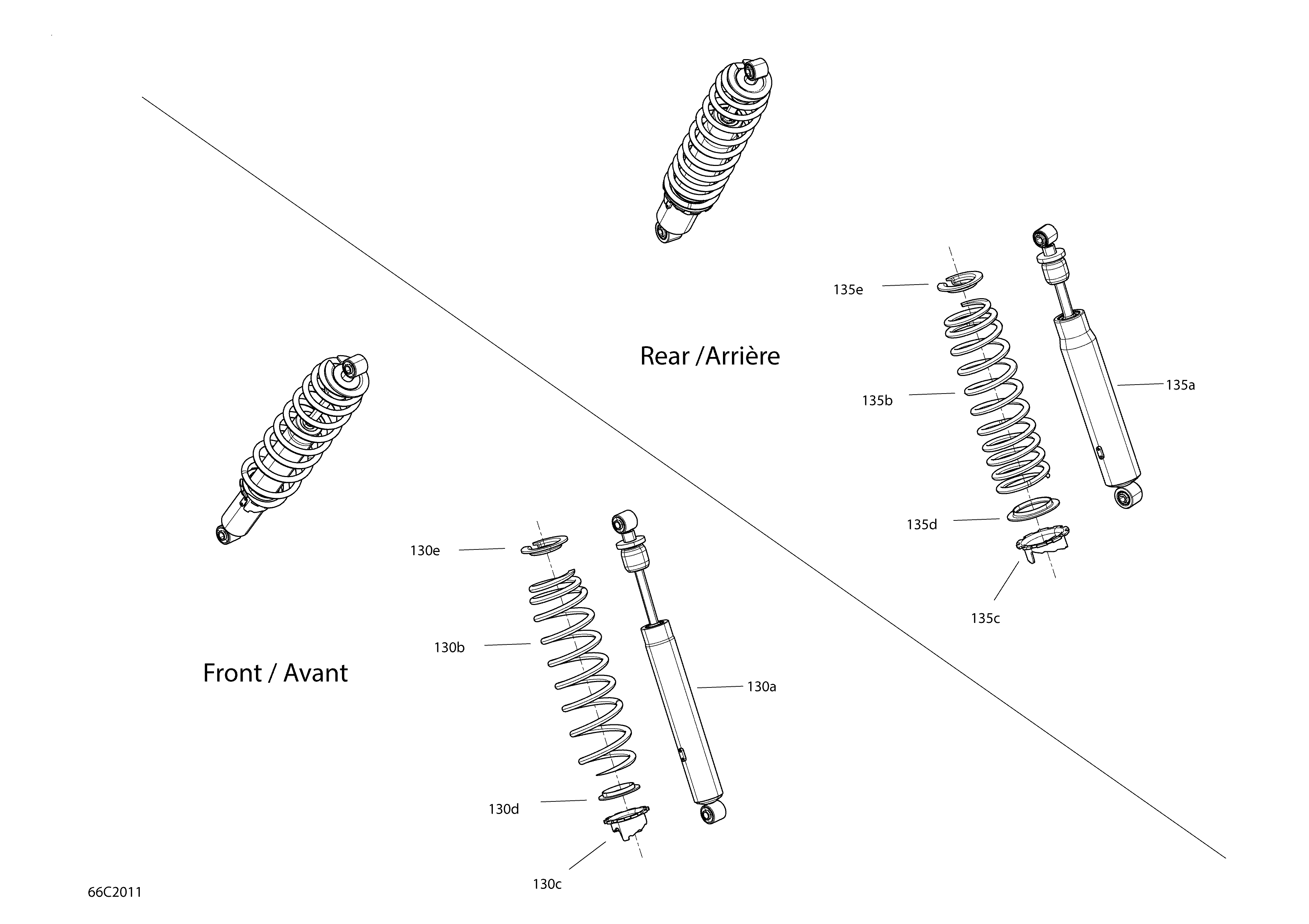

07- Shocks для BRP 008 - Defender MAX HD10 - XMR - North America - 2020
-
№АртикулНазвание
-
130a706203374 Front Shock AbsorberFront Shock Absorber
-
130b706203957 Deep Black, Front Compression SpringDeep Black, Front Compression Spring
-
130c706000910 Adjustment RingAdjustment Ring
-
130d706000911 Protector RingProtector Ring
-
130e706001894 Spring CupSpring Cup
-
135a706002853 Rear Shock AbsorberRear Shock Absorber
-
135b706003804 Deep Black, Rear Compression SpringDeep Black, Rear Compression Spring
-
135c706000910 Adjustment RingAdjustment Ring
-
135d706000911 Protector RingProtector Ring
-
135e706001894 Spring CupSpring Cup
