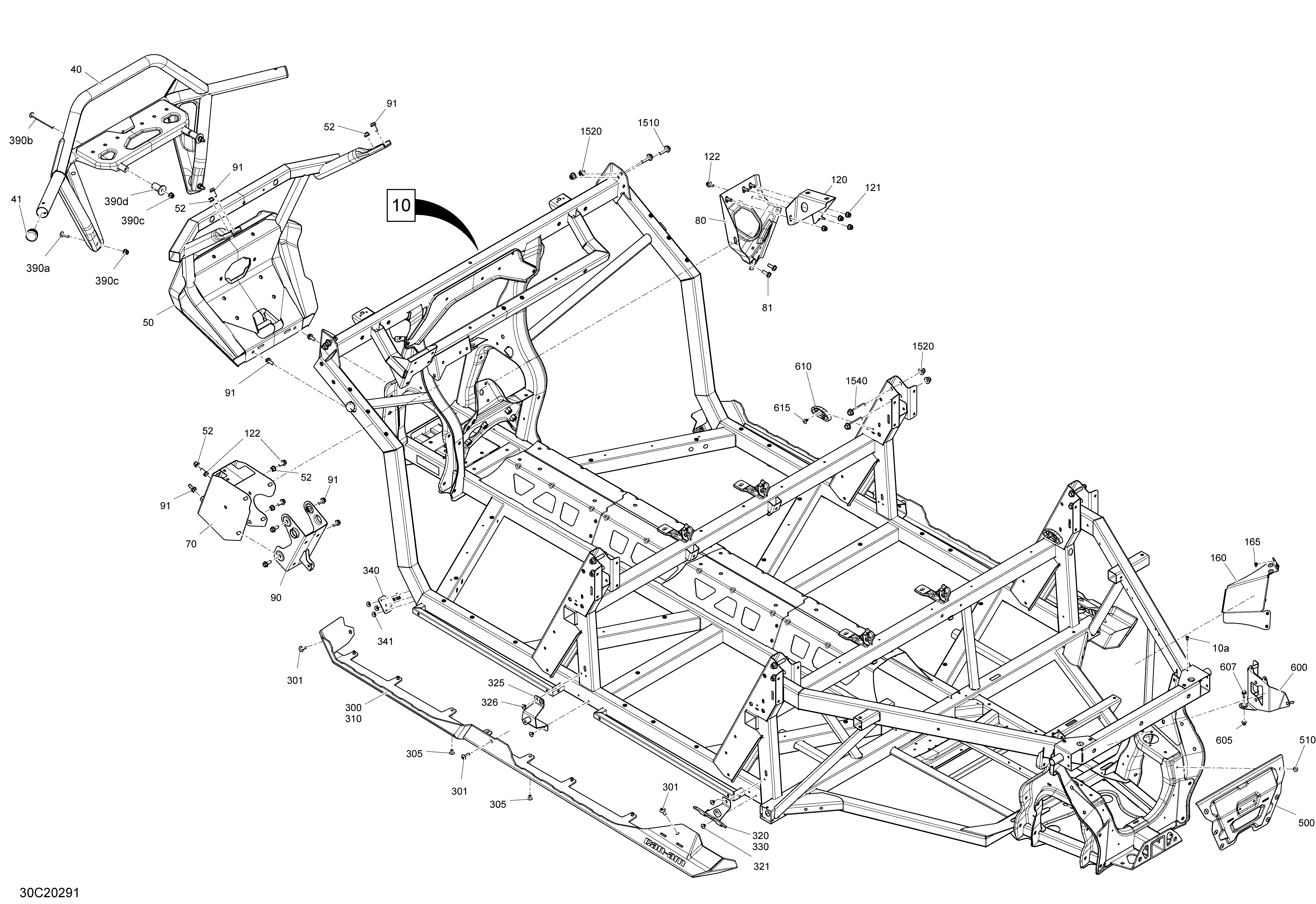

09- Frame - XMR для BRP 008 - Defender MAX HD10 - XMR - North America - 2020
-
№АртикулНазвание
-
10715006682 Black, Frame KitBlack, Frame Kit
-
10a390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
50705207588 Deep Black, Front BumperDeep Black, Front Bumper
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
70705208747 Module SupportModule Support
-
80705208741 Power Steering SupportPower Steering Support
-
81207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
90715005429 Support Steering ColumnSupport Steering Column
-
91207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
120705208742 SupportSupport
-
121233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
122207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160707002709 Heat ShieldHeat Shield
-
165293150092 Pop Rivet 3/16”Pop Rivet 3/16”
-
300705208715 Deep Black, LH Guard PanelDeep Black, LH Guard Panel
-
301250000874 Torx Truss M8 X 25Torx Truss M8 X 25
-
305293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
310705208716 Deep Black, RH Guard PanelDeep Black, RH Guard Panel
-
320705206342 LH Rock Slider SupportLH Rock Slider Support
-
321293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
325705207220 Support GuardSupport Guard
-
326293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
330705206343 RH Rock Slider SupportRH Rock Slider Support
-
340705208661 Front Guard SupportFront Guard Support
-
341293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
500705207753 Rear Chassis ReinforcementRear Chassis Reinforcement
-
510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
600710006644 Voltage Regulator SupportVoltage Regulator Support
-
605233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
607207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
610705208203 SpacerSpacer
-
615293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1510250000855 Hex. Flanged Screw M10 X 35Hex. Flanged Screw M10 X 35
-
1520233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
1540207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
