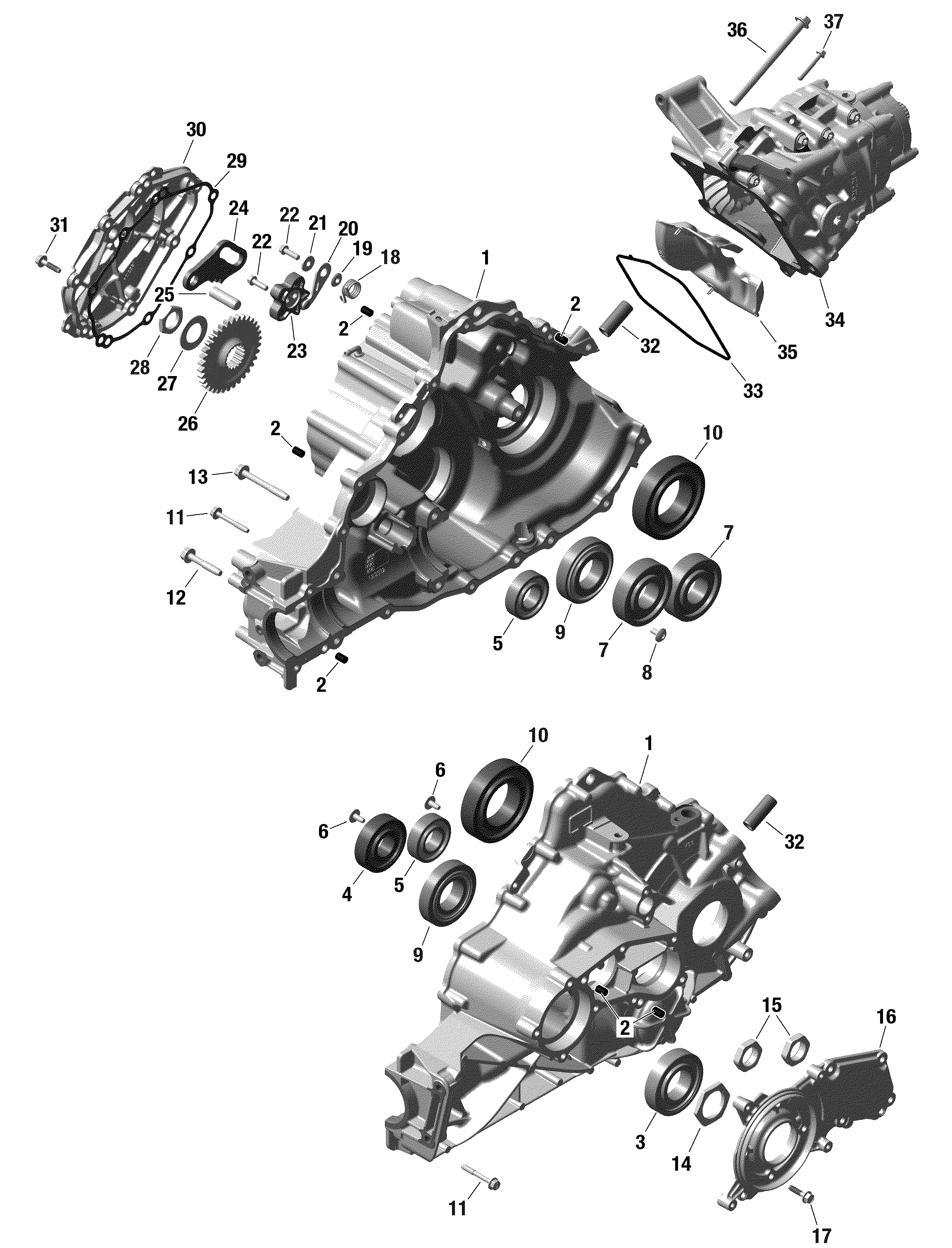

05- Gear Box 1 для BRP 010 - Defender 6X6 HD10 - North America - 2020
-
№АртикулНазвание
-
2420632010 Center Pin 8 X 12Center Pin 8 X 12
-
3420632745 Ball BearingBall Bearing
-
4420832098 Ball BearingBall Bearing
-
5420232760 Ball BearingBall Bearing
-
6420240051 Torx Screw M6X13Torx Screw M6X13
-
7420932573 Ball BearingBall Bearing
-
8420241535 Hex. Screw M6 X 13Hex. Screw M6 X 13
-
10420632871 Ball BearingBall Bearing
-
11420441921 Collar Screw M6 X 45Collar Screw M6 X 45
-
12420441931 Collar Screw M8 x 45Collar Screw M8 x 45
-
13420441941 Collar Screw M8 x 65Collar Screw M8 x 65
-
14420842600 Hex Nut M34 X 1.5Hex Nut M34 X 1.5
-
15420242954 Hex. Nut M24Hex. Nut M24
-
16420212380 Bearing CoverBearing Cover
-
17420441951 Collar Screw M6 x 25Collar Screw M6 x 25
-
18420239566 SpringSpring
-
19420227717 Step RingStep Ring
-
20420248528 Index Lever Ass'yIndex Lever Ass'y
-
21420827300 WasherWasher
-
22420441835 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
23420248024 Index WasherIndex Washer
-
24420657440 Parking Lock LeverParking Lock Lever
-
25420249190 Needle PinNeedle Pin
-
26420634936 GearGear
-
27420245860 Spring WasherSpring Washer
-
28420242879 NutNut
-
29420450410 GasketGasket
-
30420212390 Gear Box CoverGear Box Cover
-
31420441951 Collar Screw M6 x 25Collar Screw M6 x 25
-
32420929305 Dowel Pin 15X40Dowel Pin 15X40
-
33420250611 Sealing GasketSealing Gasket
-
34420686676 Bevel Gear SetBevel Gear Set
-
35420456441 Oil GuideOil Guide
-
36420641774 Hex Collar Screw M10X115Hex Collar Screw M10X115
-
37420440270 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
