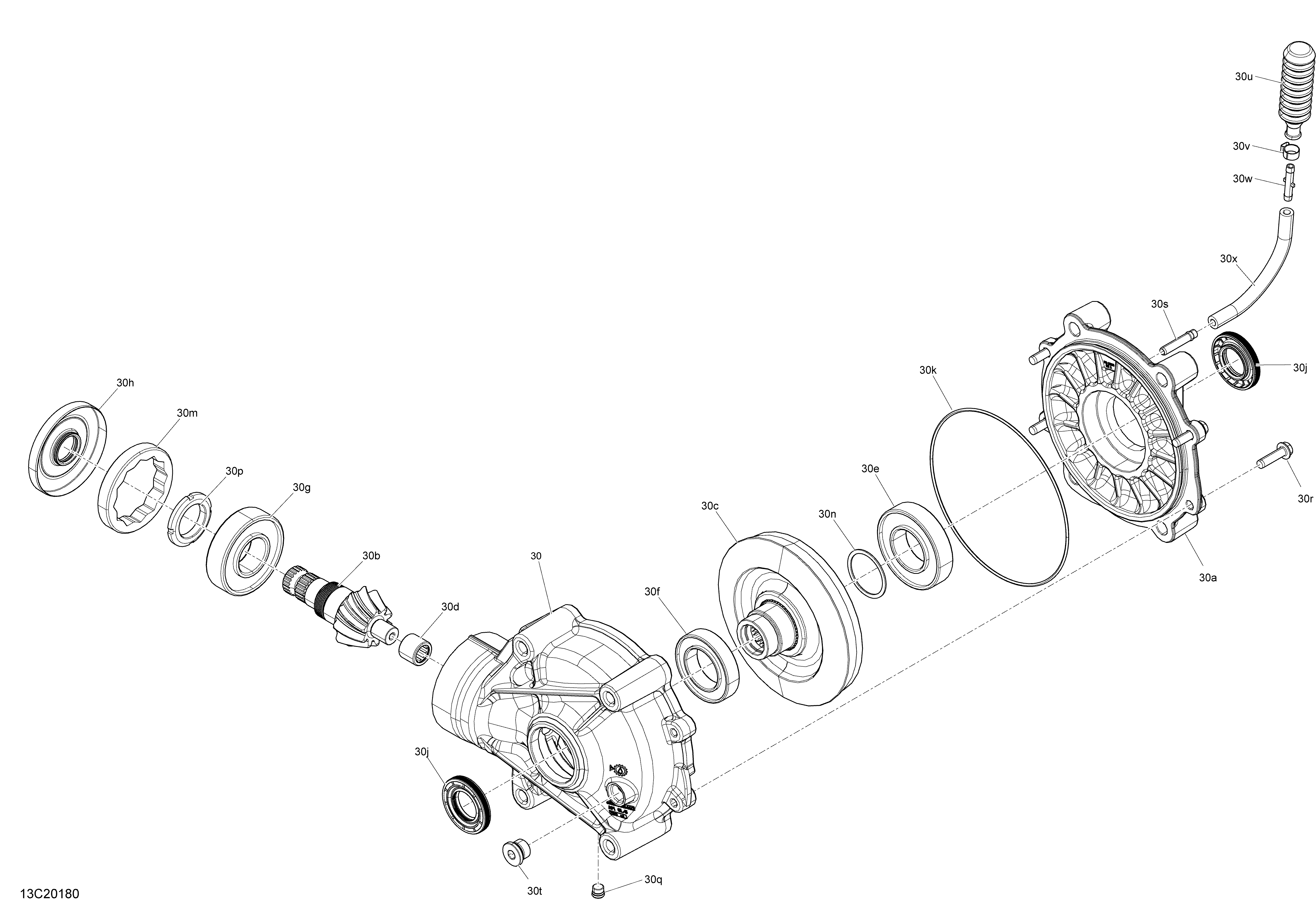

08- Rear Drive - Differential Parts для BRP 010 - Defender 6X6 HD10 - North America - 2020
-
№АртикулНазвание
-
30705502827 Final Drive Unit. Includes 30 to 30xFinal Drive Unit. Includes 30 to 30x
-
30a705502518 Rear CoverRear Cover
-
30b705502828 Gear 10 TeethGear 10 Teeth
-
30c705502109 36 Tooth Gear36 Tooth Gear
-
30d705501874 Needle BearingNeedle Bearing
-
30e705501875 Ball BearingBall Bearing
-
30f705501876 Ball BearingBall Bearing
-
30g705501877 Ball BearingBall Bearing
-
30h705502829 Oil SealOil Seal
-
30j705502110 Oil SealOil Seal
-
30k705501881 Oil Seal iDIA 6.737 oDIA 6.943Oil Seal iDIA 6.737 oDIA 6.943
-
30m705501882 NutNut
-
30n705501883 Shim KitShim Kit
-
30p705502830 NutNut
-
30q705501885 Drain PlugDrain Plug
-
30r705501886 ScrewScrew
-
30s705501887 Vent ValveVent Valve
-
30t705501889 Fill Level PlugFill Level Plug
-
30u705400552 Rubber BellowRubber Bellow
-
30v293650042 Oetiker ClampOetiker Clamp
-
30w293710039 Straight FittingStraight Fitting
-
30x707002724 HoseHose
