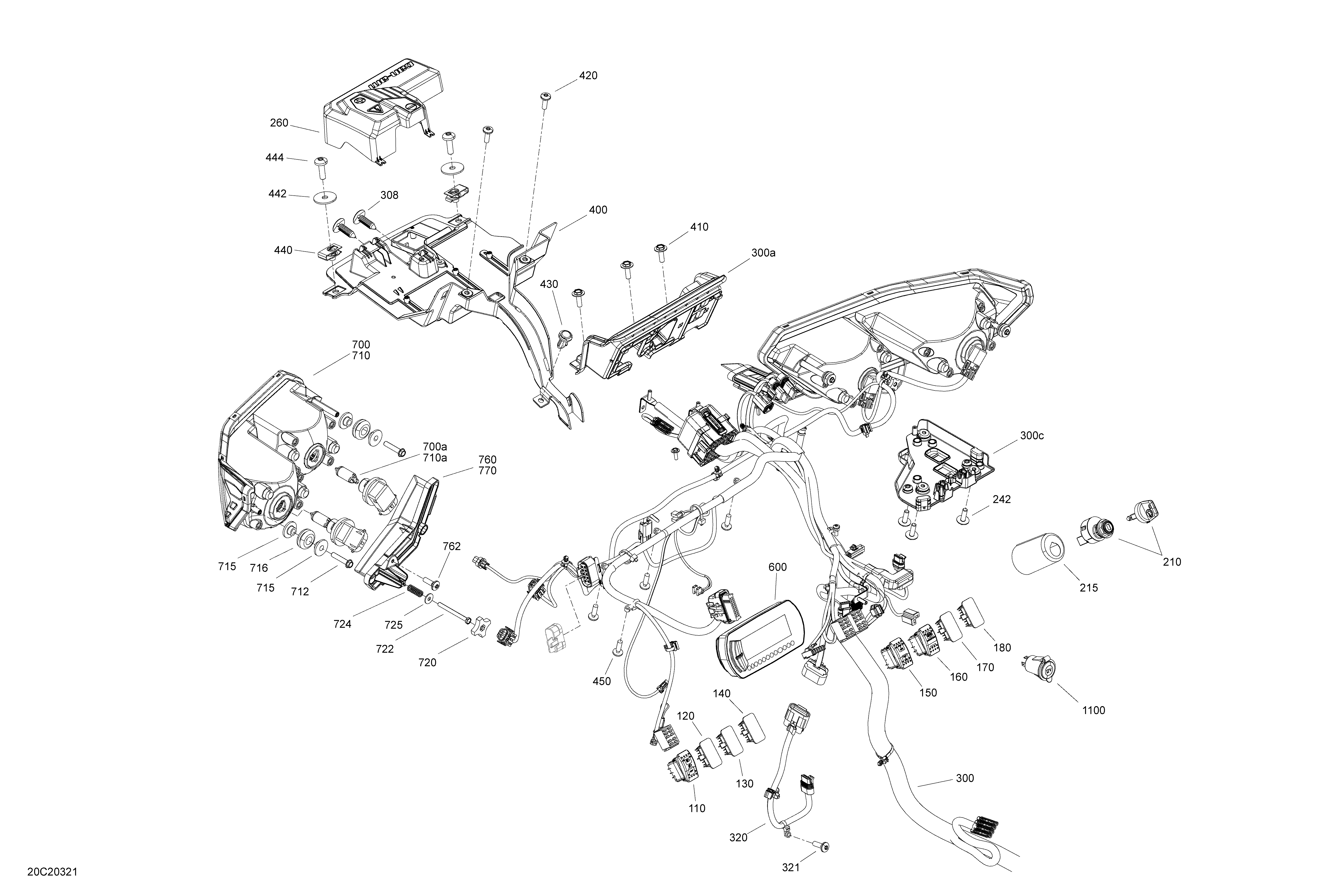

10- Electric - System - Front Section для BRP 010 - Defender 6X6 HD10 - North America - 2020
-
№АртикулНазвание
-
110710004492 Light SwitchLight Switch
-
120710001999 Plug CarlingPlug Carling
-
130710001999 Plug CarlingPlug Carling
-
140710001999 Plug CarlingPlug Carling
-
150710005489 SwitchSwitch
-
160710005470 Differential Lock SwitchDifferential Lock Switch
-
170710001999 Plug CarlingPlug Carling
-
180710001999 Plug CarlingPlug Carling
-
210710004198 Ignition Switch With KeysIgnition Switch With Keys
-
215710005739 Key Switch ProtectorKey Switch Protector
-
242250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
260710006707 Junction Block CoverJunction Block Cover
-
300710006376 Main Wiring Harness. Includes 300 to 300cMain Wiring Harness. Includes 300 to 300c
-
300a710006640 Fusebox SupportFusebox Support
-
300c710006706 Connector SupportConnector Support
-
308293730006 Black, DartBlack, Dart
-
320710006837 Throttle Pedal HarnessThrottle Pedal Harness
-
321250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
400710006649 Wiring Harness SupportWiring Harness Support
-
410250000959 Screw PT Type K-50 X 16Screw PT Type K-50 X 16
-
420250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
430293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
440250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
442250200029 Washer M6Washer M6
-
444250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
450250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
600710006739 Compact Multifonction GaugeCompact Multifonction Gauge
-
700710006976 LH BeamLH Beam
-
700a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
710710006977 RH BeamRH Beam
-
710a219800149 Halogen Bulb H8 12V 35WHalogen Bulb H8 12V 35W
-
712241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
715710004749 Shoulder BushingShoulder Bushing
-
716293720053 GrommetGrommet
-
720572106600 HandleHandle
-
722250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
724517168600 SpringSpring
-
725234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
760705013593 Deep Black, LH Front Headlight TrimDeep Black, LH Front Headlight Trim
-
762250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
770705013595 Deep Black, RH Front Headlight TrimDeep Black, RH Front Headlight Trim
-
1100710005374 12V Power Outlet12V Power Outlet
