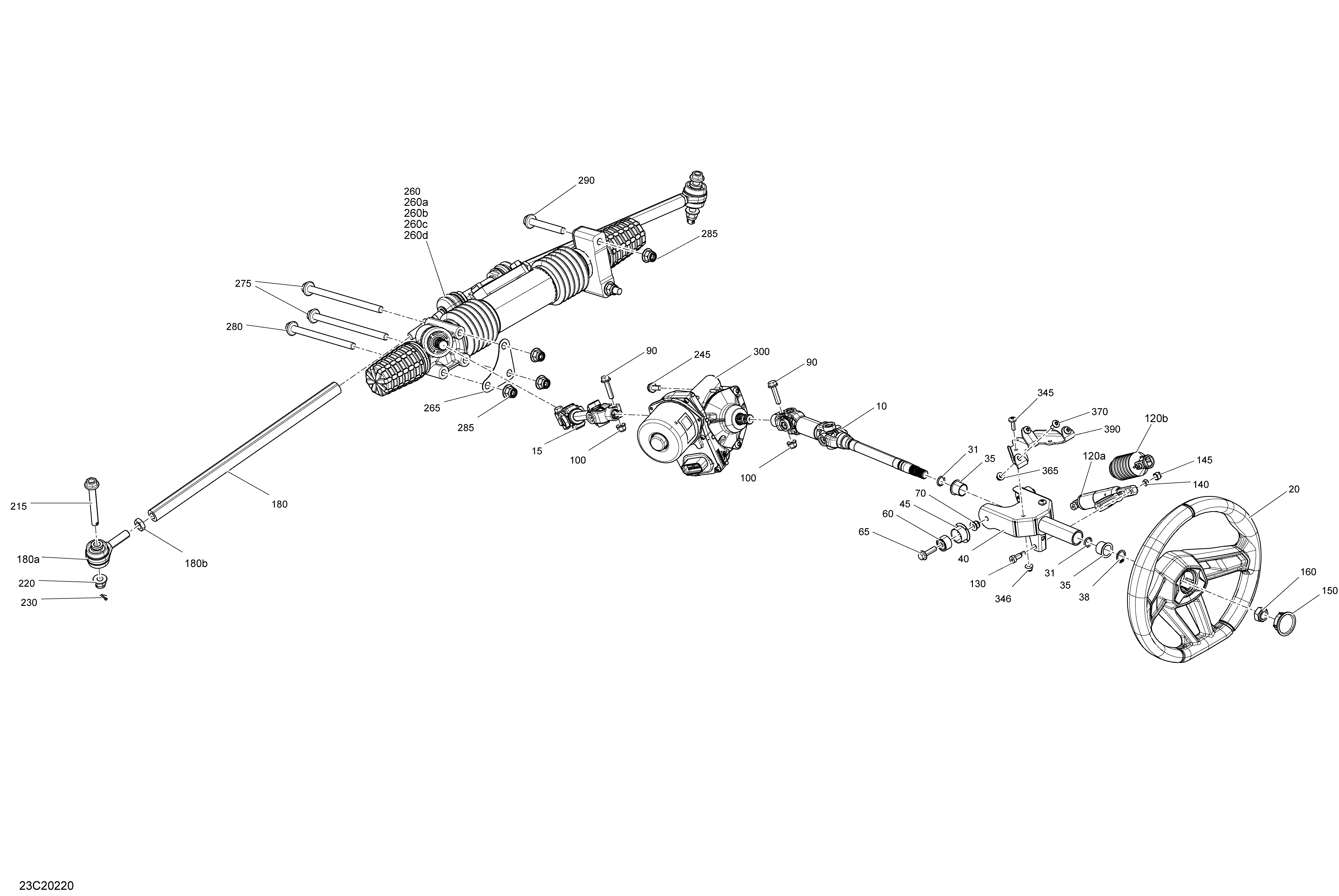

07- Steering для BRP 004 - Maverick Turbo R, Turbo RR - STD_XDS_XRS - North America - 2020
-
№АртикулНазвание
-
10709402127 Upper DPS Shaft Ass'yUpper DPS Shaft Ass'y
-
15709401721 Steering ShaftSteering Shaft
-
20709401706 SteeringSteering
-
31293300144 O-RingO-Ring
-
35709401733 BushingBushing
-
38293370110 CirclipCirclip
-
40709401602 Steering SupportSteering Support
-
45709401603 BushingBushing
-
60709401604 BushingBushing
-
65207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
90250001021 Flanged Hex. Screw M8 X 35Flanged Hex. Screw M8 X 35
-
100233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
120a709402419 Adjustment CylinderAdjustment Cylinder
-
120b709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
130250000669 Socket Head Screw M8 X 16Socket Head Screw M8 X 16
-
140232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
145269500806 CapCap
-
150709401514 Steering CapSteering Cap
-
160232511414 Elastic Lock Nut M16Elastic Lock Nut M16
-
180709401556 Tie Rod Ass'y. 64 inch wide. Includes 180 to 180bTie Rod Ass'y. 64 inch wide. Includes 180 to 180b
-
180a709401703 Ball Joint. 64 inch wideBall Joint. 64 inch wide
-
180b232170411 Hex. Jam Nut M14. 64 inch wideHex. Jam Nut M14. 64 inch wide
-
180709401739 Tie Rod Ass'y. 72 inch wide. Includes 180 to 180bTie Rod Ass'y. 72 inch wide. Includes 180 to 180b
-
180a709401703 Ball Joint. 72 inch wideBall Joint. 72 inch wide
-
180b232170411 Hex. Jam Nut M14. 72 inch wideHex. Jam Nut M14. 72 inch wide
-
215250000864 Screw Hex Cap M12 X 95Screw Hex Cap M12 X 95
-
220233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
230211400017 Cotter PinCotter Pin
-
245207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
260709402021 Rack And Pinion Steering. 64 inch wide. Includes 260 to 260dRack And Pinion Steering. 64 inch wide. Includes 260 to 260d
-
260a703500958 Kit Rack And Pinion End. 64 inch wideKit Rack And Pinion End. 64 inch wide
-
260b703500959 Kit support. 64 inch wideKit support. 64 inch wide
-
260c715900238 Steering Rode Nut. 64 inch wideSteering Rode Nut. 64 inch wide
-
260d715900488 Tie Rod end. 64 inch wideTie Rod end. 64 inch wide
-
260709402180 Rack & Pinion Steering Ass'y. 72 inch wide. Includes 260 to 260dRack & Pinion Steering Ass'y. 72 inch wide. Includes 260 to 260d
-
260a703500958 Kit Rack And Pinion End. 72 inch wideKit Rack And Pinion End. 72 inch wide
-
260b703500959 Kit support. 72 inch wideKit support. 72 inch wide
-
260c715900238 Steering Rode Nut. 72 inch wideSteering Rode Nut. 72 inch wide
-
260d715900488 Tie Rod end. 72 inch wideTie Rod end. 72 inch wide
-
265709401842 PlatePlate
-
275250000863 Screw Hex Cap M12 X 190Screw Hex Cap M12 X 190
-
280250000875 Screw Hex Cap M12 X 160Screw Hex Cap M12 X 160
-
285233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
290250000859 Screw Flange M12 X 85Screw Flange M12 X 85
-
300709402428 Power Steering Ass'yPower Steering Ass'y
-
345250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
346233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
365233161464 Hex. Elastic Flange Nut M6. XDS_XRSHex. Elastic Flange Nut M6. XDS_XRS
-
370250000721 Torx Truss Screw M6 X 16. XDS_XRSTorx Truss Screw M6 X 16. XDS_XRS
-
390707900737 Cluster Meter Support. XDS_XRSCluster Meter Support. XDS_XRS
