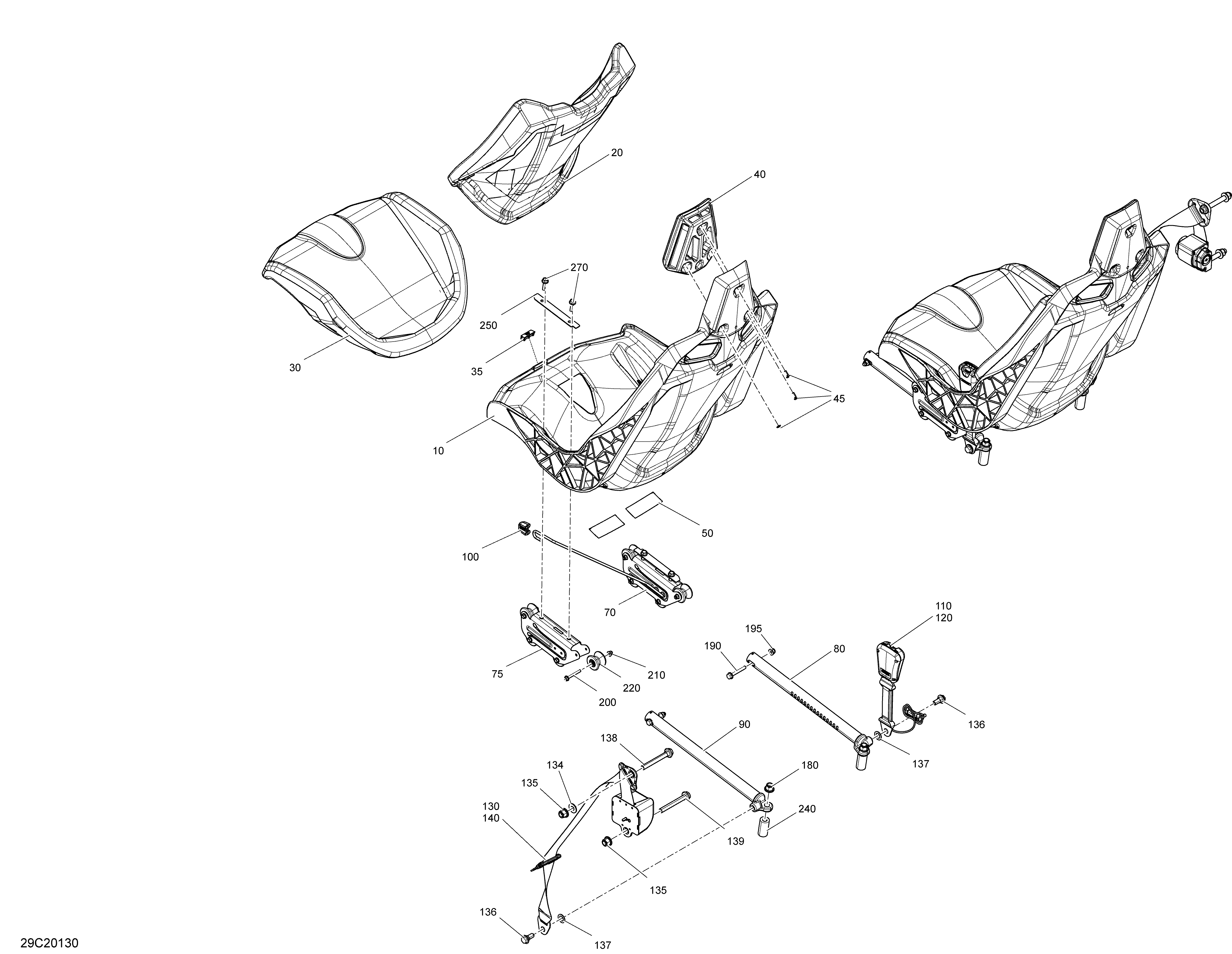

09- Seat - STD для BRP 004 - Maverick Turbo R, Turbo RR - STD_XDS_XRS - North America - 2020
-
№АртикулНазвание
-
10708002065 LH, Kit Seat ShellLH, Kit Seat Shell
-
20708002121 Backrest Ass'yBackrest Ass'y
-
30708002124 Cushion Ass'yCushion Ass'y
-
35708002670 StopperStopper
-
40708002131 HeadrestHeadrest
-
45250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
50708002535 Velcro TapeVelcro Tape
-
70703500997 TrolleyTrolley
-
75708002298 TrolleyTrolley
-
80708003061 Seat RailSeat Rail
-
90708003064 Seat RailSeat Rail
-
100708002655 HandleHandle
-
110708002714 Driver BuckleDriver Buckle
-
120708002385 Passenger BucklePassenger Buckle
-
130708002654 Safety Belt PassengerSafety Belt Passenger
-
134250200102 Flat Washer M12Flat Washer M12
-
135233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
136708002504 Safety Belt screwSafety Belt screw
-
137708000891 Position WasherPosition Washer
-
138250000896 Hex. Flanged Screw M12 X 97.5Hex. Flanged Screw M12 X 97.5
-
139250000876 Hex. Flanged Screw M12 X 95Hex. Flanged Screw M12 X 95
-
140708002811 Safety Belt Driver SideSafety Belt Driver Side
-
180233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
190207685554 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
195233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
200207665054 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
210233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
220708002134 WheelWheel
-
240708002299 Rear BushingRear Bushing
-
250708002480 PlatePlate
-
270207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
